Description
The Focusrite RedNet TNX connects a computer to a Dante audio network through Thunderbolt 3. It provides 128 x 128 channels at up to 24-bit/192 kHz in its standard configuration, with a paid upgrade option for 256 x 256 channels at up to 96 kHz.
Features
- 128 x 128 Dante channels in the standard configuration
- Paid upgrade to 256 x 256 channels at up to 96 kHz
- 24-bit audio with sample rates up to 192 kHz at standard channel count
- Two Thunderbolt 3 ports
- Two RJ45 Dante network connections
- Windows ASIO/WDM and macOS CoreAudio compatibility
- AES67 and SMPTE ST 2110 support as specified by the source
- Included Thunderbolt 3 and Cat6A cables plus DC power supply
Why We Like This
TNX supplies high-channel-count Dante audio over a single Thunderbolt host connection in a portable format. Keeping the optional 256-channel expansion separate avoids confusion about the standard purchase.
FAQs
Q: How many Dante channels are available without an upgrade?
A: 128 inputs and 128 outputs are included in the standard configuration.
Q: Can it handle 256 x 256 channels?
A: Yes, with a paid upgrade and a maximum sample rate of 96 kHz in that mode.
Q: What cables are listed in the box?
A: A 2 m Thunderbolt 3 cable and a 2 m Cat6A Ethernet cable, along with an external DC power supply.
Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and creators every day with reliable gear and knowledgeable service.
Tech Specs
Dante Connectivity: |
2 x Ethernet standard RJ45 connectors (compatible with Cat 5e and above) |
Digital Performance: |
Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit |
Driver Compatibility (Mac): |
CoreAudio (Mac) |
Driver Compatibility (Windows): |
Multi-client ASIO and WDM (Windows) |
Heat Performance: |
Max ambient temperature: 50 degrees Celsius/122 degrees Fahrenheit |
Manufacturer SKU: |
MONFTNX |
Miscellaneous: |
Exposed threads for rack shelf/cradle mounting |
Power requirements: |
Powered by external DC power supply |
Product Depth: |
212.4mm |
Product Height: |
71.6mm |
Product Width: |
144mm |

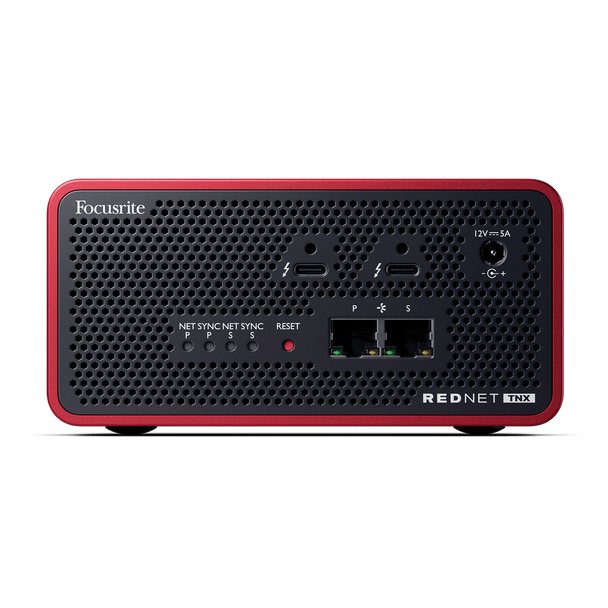

Rear Panel Features: |
2x Thunderbolt™ 3 ports (Provide 15W of power); 2 x Sonnet ThunderLok™-B; 2x Network Active LED indicators (Primary/Secondary); 2x Network Lock LED indicators (Primary/Secondary); 1x DC power inlet; 1x Factory Reset button |
Simultaneous I/O (Optional Upgrade): |
256x256 (up to 96kHz) with a paid upgrade |
Simultaneous I/O (Standard): |
128x128 (all sample rates) |
