Description

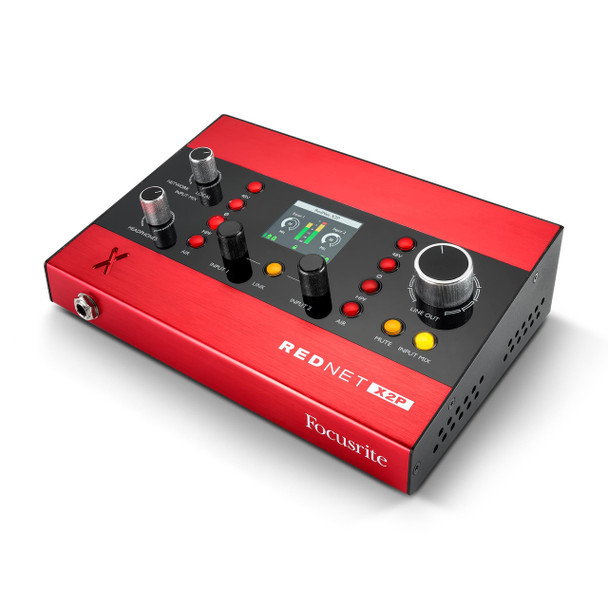

The Focusrite RedNet X2P adds two microphone inputs, stereo line output, and headphone monitoring to a Dante network. Its two Red Evolution mic preamps and local input mixer make it suitable for network-connected recording and foldback monitoring.

Features

Two Red Evolution microphone preamps
Two-channel analogue I/O over Dante
Stereo line output and dedicated headphone amplifier
48V phantom power and Air mode
High-pass filter, polarity reversal and stereo preamp linking
Local input-mix control for foldback monitoring
PoE for audio, power and control over one Ethernet cable
Selectable local lockout of preamp or output settings
Mic-stand mounting provision

Why We Like This

X2P provides local microphone capture and headphone listening without requiring separate desktop interfaces. The local input mix and lockout controls are useful when remote operators manage the preamps.

FAQs

Q: Does the RedNet X2P require a separate DC adapter?
A: The source describes operation through Power over Ethernet using a PoE network switch or injector.

Q: Can a performer adjust local monitoring?
A: Yes. A local input mixer supports more-me-style foldback adjustment.

Q: Can settings be protected from local changes?
A: Yes. The source specifies lockout for preamp settings, output settings, or both.

Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and creators every day with reliable gear and knowledgeable service.

Tech Specs

Air Mode:	2dB boost at 10kHz and -2dB at 20Hz (ref 1kHz). Input impedance drop to 2.2kO
Clock Sources:	Internal or from Dante Network Master
Common-Mode Rejection Ratio:	50/60Hz CMRR: -80dB
DC Power Supply:	1 x 12V 1.2A DC Power Supply
EIN:	<-130dBu 'A'-Weighted (typical)
Frequency Response:	20Hz - 35kHz ±0.1dB
Gain Range:	0dB to 68dB in 1dB steps
HPF:	High-Pass Filter (HPF): -3dB @ 80 ± 3Hz, 12dB/Octave, independently switchable per channel
Headphone Impedance:	32O - 600O
Headphone Output 0 DBFS Reference Levels:	>+19dBm
Headphone Output Dynamic Range:	117dB 'A'-weighted (typical), 20Hz - 20kHz
Headphone Output Frequency Response:	20Hz - 20kHz ±0.2dB
Headphone Output Impedance:	5O
Headphone Output THD + N:	<-103dB (0.0007%) @ -1dBFS
Inputs Mic/Line/Inst Inputs:	2 x Locking Combi XLR
Instrument Inputs Frequency Response:	20Hz - 35kHz ±0.1dB
Instrument Inputs Gain Range:	0dB to 68dB in 1dB steps
Instrument Inputs HPF:	High-Pass Filter (HPF): -3dB @ 80 ± 3Hz, 12dB/Octave, independently switchable per channel
Instrument Inputs Max. Input Level:	>+15dBu, min gain
Instrument Inputs Signal-To-Noise Ratio:	-118dB 'A'-Weighted (typical), min gain
Instrument Inputs THD + N:	<-100dB (0.001%) @ -1dBFS (@ 16dB Gain)
Instrument Inputs Type:	Electronically Balanced, Zin = 2MO
Line Level Outputs 0 DBFS Reference Levels:	+18 or +24dBu (switchable)
Line Level Outputs Dynamic Range:	-120dB 'A'-Weighted (typical), 20Hz - 20kHz
Line Level Outputs Frequency Response:	20Hz - 35kHz ±0.1dB
Line Level Outputs THD + N:	<-104dB (0.0006%) @ -1dBFS
Manufacturer SKU:	MONF0015
Max. Input Level:	>+24dBu, min gain
Network:	2 x etherCON connectors, also compatible with standard RJ45 connectors
Outputs Headphone Outputs:	1 x 1/4" stereo jack
Outputs Line Outputs:	2 x Male XLR
PSU (PoE And DC):	1 x PoE (Port 1) Input and 1 x DC 12V Locking Barrel Input Connector
Phantom Power:	+48V, independently switchable per channel.
Power Consumption:	PoE: 11.0W - DC: 13.32W (When using supplied DC PSU)
Power Over Ethernet (PoE):	Complies with IEEE 802.3af class 0 Power-over-Ethernet standard (PoE A or PoE B compatible)
Signal-To-Noise Ratio:	-120dB 'A'-Weighted (typical), min gain
Supported Sample Rates:	44.1 / 48 / 88.2 / 96 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
THD + N:	-103dB (0.0007%) @ -1dBFS (@ 24dB Gain)
Type:	Electronically Balanced, Zin = 6.2kO
