Description

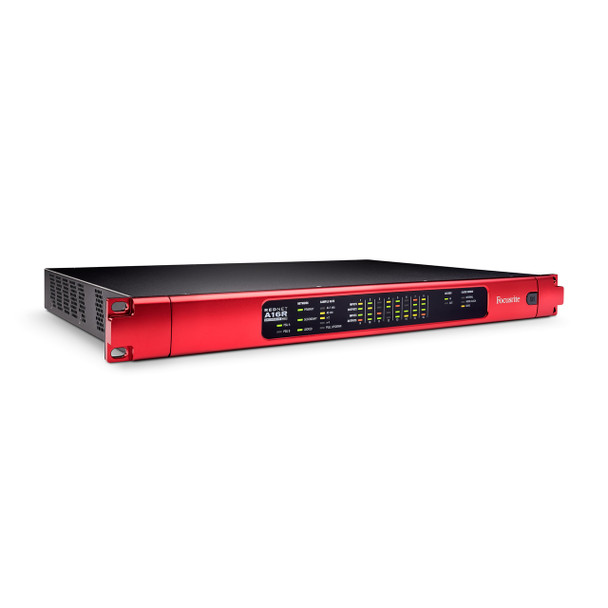

The Focusrite RedNet A16R MkII connects 16 channels of analogue audio in each direction to a Dante network and also provides two-channel AES3 digital I/O. Individual channel-level adjustment through RedNet Control supports installed, broadcast, and live-audio routing.
Features
- 16-channel bidirectional analogue interface for Dante
- Additional two-channel AES3 digital input and output
- Four AES59-standard DB25 connectors for analogue I/O
- Individual input and output level control through RedNet Control
- Dual power supplies with locking IEC inputs
- Primary and secondary locking etherCON network ports
- Automatic power and network failover
- Sample-rate conversion on the AES3 inputs
- 1U rackmount chassis and front-panel status indicators
Why We Like This
Independent channel-level control and redundant power/network connections address practical needs in larger Dante installations. The additional AES3 path makes it possible to connect compatible digital devices alongside analogue equipment.
FAQs
Q: Does RedNet A16R MkII use analogue or digital audio connections?
A: Its primary I/O is 16 channels of analogue audio, with a separate two-channel AES3 digital connection.
Q: Are redundant connections included?
A: Yes. It has dual power supplies and primary/secondary etherCON network connectors.
Q: How are analogue channels connected?
A: Through four rear-panel DB25 connectors wired to the AES59 standard.
Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and creators every day with reliable gear and knowledgeable service.
Tech Specs
0 DBFS Reference Levels: |
+18 or 24dBu (switchable) |
0 DBFS Reference Levels Outputs: |
18 or 24dBu (switchable) |
Channel Count: |
2 x 2 AES/EBU channels |
Clock Sources: |
Internal or from Dante Network Master |
Converter Dynamic Range: |
120dB A-Weighted (typical), 10Hz – 20kHz |
Converter Dynamic Range Output: |
120dB A-Weighted (typical), 10Hz – 20kHz |
Dynamic Range: |
118 dB A-Weighted (typical) |
Dynamic Range Inputs: |
Greater than 138dB |
EIN: |
-96dBu A-Weighted (typical) |
External Word Clock Range: |
Nominal sample rate ±7.5 |
Frequency Response: |
20Hz – 20kHz ± 0.1dB |
Frequency Response Outputs: |
20Hz – 20kHz ± 0.1dB |
Gain Error: |
-0.3dB |
Input (Optional DARS): |
1 x Female XLR (Switchable with analogue input channels 15 and 16 at quad rates) |
Latency: |
11 to 45 samples (network and sample rate dependent) |
Line Inputs: |
2 x DB25 connectors |
Line Outputs: |
2 x DB25 connectors |
Manufacturer SKU: |
MONF0017 |
Network: |
2 x EtherCON NE8FBH, also compatible with standard RJ45 connectors |
Noise In Presence Of Signal: |
-94dBu A-Weighted (typical) |
Output: |
1 x Male XLR (Duplicate of analogue output channels 15 and 16 at quad rates) |
PSU: |
2 x IEC Inputs with retaining clips |
Sample Rate Range: |
32kHz to 216kHz |
Signal-To-Noise Ratio: |
120dB A-Weighted (typical) |
Supported Sample Rates: |
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit |
THD+N: |
Less than -100dB (0.001) unweighted, 20Hz – 20kHz; -1dBFS input |
THD+N Inputs: |
Less than -130dB (0.00003) |
THD+N Outputs: |
Less than -100dB (0.001) unweighted, 20Hz – 20kHz; 23dBu input |
Word Clock Input: |
1 x BNC 75O port (switchable termination) |
Word Clock Output: |
1 x BNC 75O port |
