Description

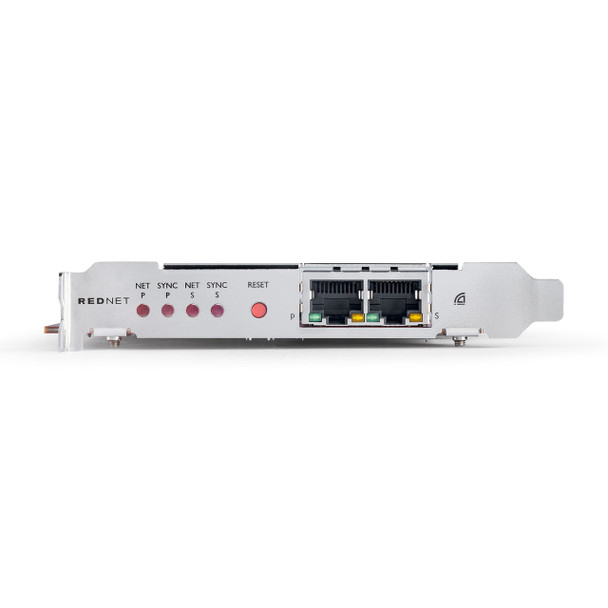

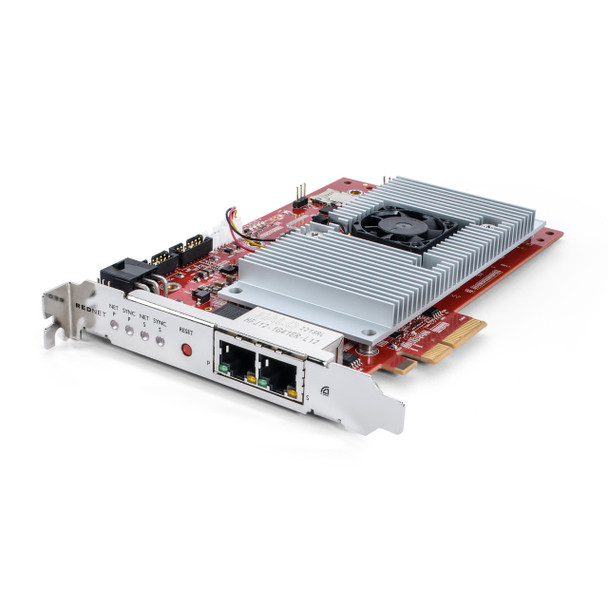

The Focusrite RedNet PCIeNX is a PCIe Dante audio interface for high-channel-count computer recording and playback. It supports 128 inputs and 128 outputs at up to 24-bit/192 kHz as supplied, with an optional paid channel-count upgrade at lower sample rates.
Features
- 128 inputs and 128 outputs at supported sample rates, including 192 kHz
- Optional upgrade to 256 x 256 channels at up to 96 kHz
- Dual Ethernet ports for switched or redundant operation
- 24-bit audio and AES67 support
- SMPTE ST 2110 compliance with the specified Dante Domain Manager requirement
- ASIO/WDM for Windows and CoreAudio for macOS
- Full-height, half-width PCIe form factor
- Powered through the PCIe connection
Why We Like This
PCIeNX gives larger production systems direct computer access to a high number of Dante channels. Stating the standard 128 x 128 capacity separately from the optional upgrade makes system planning clearer.
FAQs
Q: Are 256 x 256 Dante channels included as standard?
A: No. The supplied configuration is 128 x 128; 256 x 256 is available only through an optional upgrade at up to 96 kHz.
Q: Does this card require an external power supply?
A: The source specifies power from the PCIe connection.
Q: Can the two Ethernet connections be used redundantly?
A: Yes. The source describes switched and redundant network modes.
Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and creators every day with reliable gear and knowledgeable service.
Tech Specs
Card Size: |
Full Height, Half Width |
Dante Connectivity: |
2 x Ethernet standard RJ45 connectors (compatible with Cat 5e and above) |
Digital Performance: |
Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit |
Driver Compatibility: |
Multi-client ASIO and WDM (Windows) | CoreAudio (Mac) |
Front Panel: |
2x Network Active LED indicators (Primary/Secondary) | 2x Network Lock LED indicators (Primary/Secondary) | 1x Factory Reset button |
Heat Performance: |
Max internal case/chassis operating temperature: 50 degrees Celsius/122 degrees Fahrenheit |
Manufacturer SKU: |
MONFRPCINX |
Power: |
Powered over PCIe |
Simultaneous I/O (Optional Upgrade): |
256x256 (up to 96kHz) — with optional upgrade |
Simultaneous I/O (Standard): |
128x128 (all sample rates) — out of the box |
Simultaneous Inputs & Outputs: |
128x128 (all sample rates) — out of the box; 256x256 (up to 96kHz) — with optional upgrade |
