Description

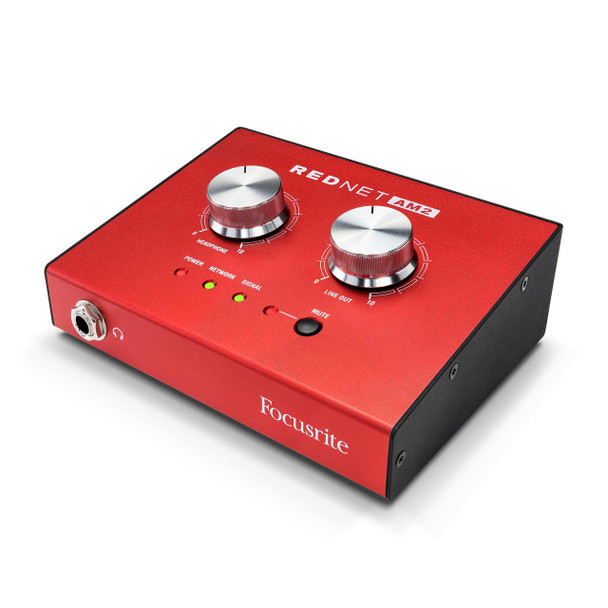

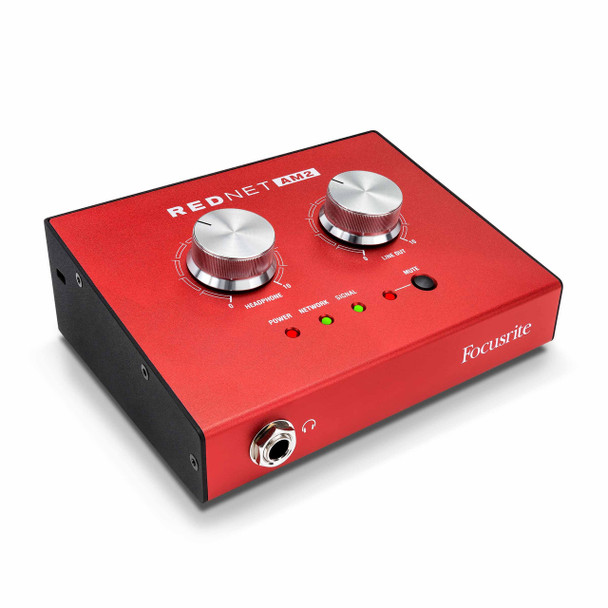

The Focusrite RedNet AM2 is a compact Dante monitoring device with a 1/4-inch headphone output and two balanced XLR line outputs. It allows a networked audio signal to be monitored locally from headphones or connected speakers.
Features
- Stereo monitoring from Dante audio networks
- Front-panel 1/4-inch TRS headphone output
- Two rear-panel balanced male XLR line outputs
- Separate headphone and line-output level controls
- Local mute switch for the speaker line feed
- Power via Ethernet PoE or external DC supply
- Integrated Gigabit Ethernet switch with two etherCON connections
- Mic-stand mounting point on the underside
Why We Like This
AM2 puts both headphone listening and speaker-line monitoring at a convenient point on a Dante system. The independent output controls and PoE option are especially practical when monitoring locations are spread across a room or stage.
FAQs
Q: Can the RedNet AM2 be powered using Ethernet?
A: Yes. It supports Power over Ethernet or an external DC power supply, which the source description says is included.
Q: What speaker outputs does it provide?
A: Two balanced XLR line outputs.
Q: Can headphone and line output levels be adjusted separately?
A: Yes. Separate output-level controls are provided.
Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and creators every day with reliable gear and knowledgeable service.
Tech Specs
0 DBFS Reference Levels Headphones: |
19dBm |
0 DBFS Reference Output Levels: |
18 or 24dBu (switchable) |
Clock Sources: |
Internal or from Dante Network Master |
DC Power Supply: |
1 x 12V 1.2A DC Power Supply |
Dynamic Range: |
120dB A-weighted (typical), 20Hz - 20kHz |
Frequency Response Output: |
20Hz - 20kHz ±0.05dB |
Headphone Dynamic Range: |
118dB A-weighted (typical), 20Hz - 20kHz |
Headphone Frequency Response: |
20Hz - 20kHz ±0.05dB |
Headphone Impedance: |
32O - 600O |
Headphone Outputs: |
1 x 1/4" stereo jack |
Headphone THD N: |
<-100dB (0.001) unweighted, 20Hz - 20kHz; -1dBFS input |
Line Outputs: |
2 x Male XLR |
Manufacturer SKU: |
MONF0013 |
Minimum Latency: |
1ms |
Network: |
Green LED: Indicates device is network master or network slave, shows valid network lock |
Output Impedance: |
5O |
PSU (PoE And DC): |
1 x PoE (Port 1) Input and 1 x DC 12V Barrel Input Connector |
Power Consumption: |
PoE: 11.0W - DC: 9.8W |
Power Over Ethernet (PoE): |
Complies with IEEE 802.3af class 0 Power-over-Ethernet standard |
Supported Sample Rates: |
44.1 / 48 / 88.2 / 96 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit |
THD N Output: |
<-100dB (0.001) unweighted, 20Hz - 20kHz; -1dBFS input |
