Description

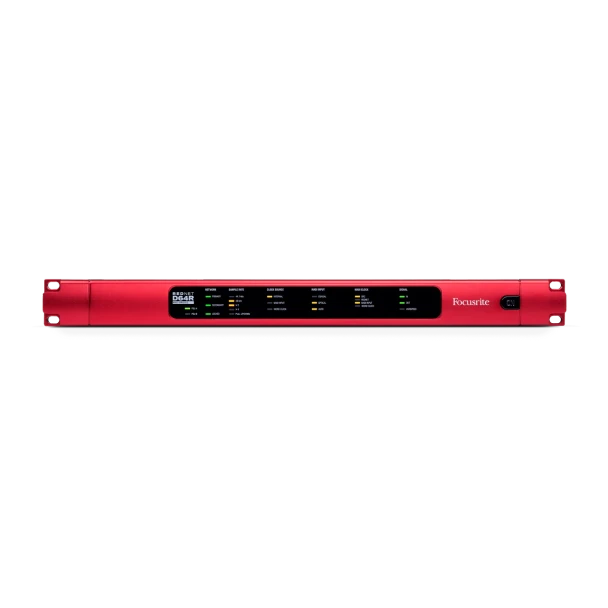

The Focusrite RedNet D64R is a multichannel bridge between MADI/AES10 equipment and Dante audio networks. It supports up to 64 channels using optical or coaxial MADI connections for routing between digital consoles and networked audio systems.
Features
- Connects Dante networks with MADI/AES10 systems
- Supports up to 64 MADI channels
- Optical and coaxial MADI interfaces
- Dual power supplies for redundant operation
- Primary and secondary network connections
Why We Like This
D64R fills the specific need to connect an established MADI system with Dante-networked equipment. Support for optical and coaxial MADI connections broadens the types of existing hardware that can be integrated.
FAQs
Q: What does RedNet D64R connect?
A: It connects MADI/AES10 digital audio equipment to a Dante network.
Q: Does it support optical MADI?
A: Yes. Optical and coaxial MADI connectivity are listed.
Q: How many MADI channels are supported?
A: Up to 64 channels, according to the supplied manufacturer description.
Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and creators every day with reliable gear and knowledgeable service.
Tech Specs
Clock Sources: |
Internal, MADI, Word Clock, or from Dante Network Leader |
Connector: |
Duplex-SC |
Dynamic Range: |
> 139dB (-60 dBFS method) |
Electrical Standard: |
as per AES10:2008 |
Gain Error: |
-0.01dB |
Latency: |
43 to 196 samples (Network and MADI sample rate dependent) |
MADI Clock Sources: |
RedNet, MADI Input and Word Clock |
Manufacturer SKU: |
MONF0011 |
Network: |
2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors |
Optical Standard: |
as per AES10:2008 (ISO/IEC 9314-3, FDDI, ANSI X3.166) |
PSU: |
2 x IEC Inputs with retaining clips |
Recommended Cable: |
OM1 adheres to AES10:2008 RedNet 6/ D64R supports OM2 if 3rd Party Device also supports OM2 |
Redundant: |
Allows unit to connect two independent networks |
Sample Rate Range: |
44.1kHz -4% to 192kHz +4.1667% |
Supported Sample Rates: |
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit |
Switched: |
Connects both ports to integrated network switch allowing daisy-chaining of device |
THD N: |
< -130dB (0.00003); 0 dBFS input |
Word Clock Input: |
1 x BNC 75O port |
Word Clock Output: |
1 x BNC 75O port |
