Description
The Focusrite RedNet D16R MkII links 16 channels of AES3 digital audio in each direction with a Dante network. It is a 1U rackmount interface with channel-level control, sample-rate conversion, and redundant network and power connections.
Features
- 16-channel bidirectional AES3 digital I/O over Dante

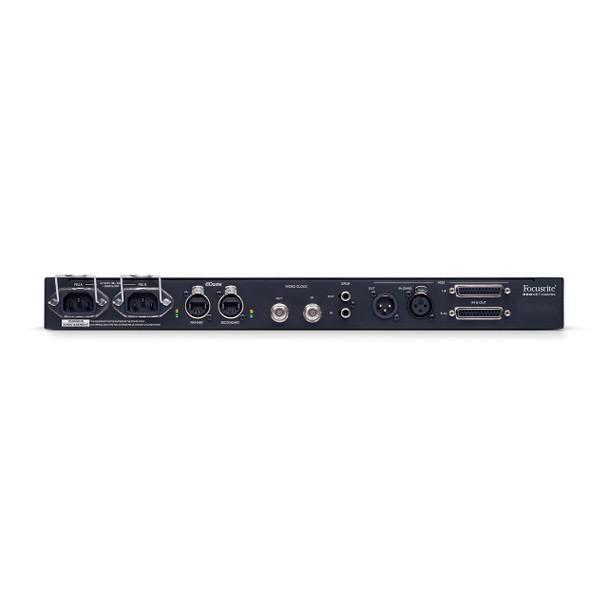

- AES3 connections on two AES59-standard DB25 connectors
- Additional XLR AES3/DARS and RCA S/PDIF connections
- Individual channel level control with RedNet Control
- Sample-rate conversion on digital input channels
- Two locking etherCON connectors for redundant networking
- Dual power supplies with locking IEC connections
- Automatic power and Ethernet failover

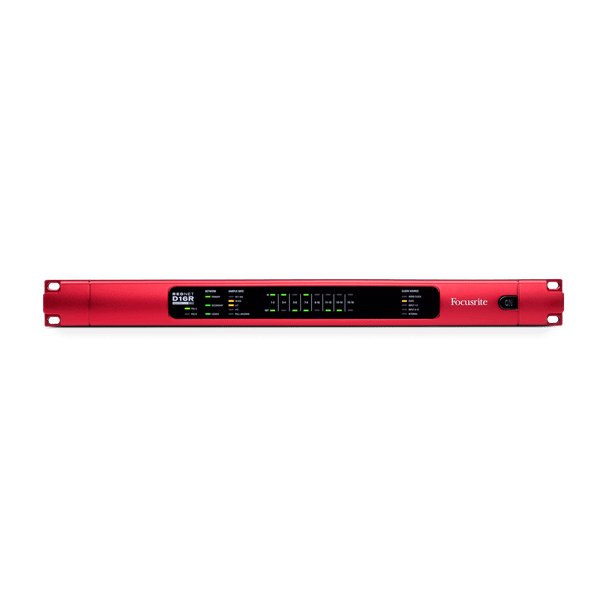

- Front-panel network, PSU and clock status indicators
Why We Like This
It connects multichannel AES3 hardware to Dante without requiring an analogue conversion stage. Redundant connections and status indicators also suit installations where operators need to identify network or power issues quickly.
FAQs
Q: Is this an analogue converter?
A: No. RedNet D16R MkII is a digital AES3-to-Dante interface.
Q: Can it work with digital devices running different sample rates?
A: The source specifies sample-rate conversion on all input channels.
Q: What cabling is used for the 16 AES3 channels?
A: Two AES59-configured DB25 connectors carry eight channels each.
Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and creators every day with reliable gear and knowledgeable service.
Tech Specs
AES / EBU - Channel Count: |
2 x 2 S/PDIF Channels (reduces AES/EBU input channels) |
Alternate Input (Optional DARS): |
1 x Female XLR (replaces DB25 channels 1-2) |
Alternate Output: |
1 x Male XLR (duplicates DB25 channels 1-2) |
Clock Sources: |
Internal, Word Clock, DARS, AES input 1-2, AES input 9-10 or from Dante Network Master |
Dynamic Range: |
Greater than 138dB (-60 dBFS method) |
External Word Clock Range: |
Nominal sample rate ±7.5% |
Gain Error: |
-0.3dB |
Input And Output: |
2 x DB25 connectors (AES59 Combined I/O / Tascam Digital) |
Input Trim: |
-78 to 0dB in 1dB steps (per channel) |
Latency: |
11 to 45 samples (network and input sample rate dependent) |
Manufacturer SKU: |
MONF0018 |
Network: |
2 x EtherCON NE8FBH-S, also compatible with standard RJ45 connectors (Accomodates rugged EtherCON NE8MC*. Does not intermate with Cat 6 cable connector NE8MC6-MO and NKE65* cable) |
Output Trim: |
-78 to 0dB in 1dB steps (per channel) |
PSU: |
2 x Internal, 100-240V, 50/60Hz, consumption 30VA |
S/PDIF - Channel Count: |
2 x 2 S/PDIF Channels (reduces AES/EBU input channels) |
S/PDIF - Input: |
1 x RCA phono socket (replaces DB25 channels 3-4) |
S/PDIF - Output: |
1 x RCA phono socket (switchable, duplicates any DB25 channel pair) |
Sample Rate Range: |
32Hz to 214kHz |
Supported Sample Rates: |
44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit |
THD + N: |
Less than -130dB (0.00003%); 0 dBFS input |
Word clock - Input: |
1 x BNC 75Ω port (switchable termination) |
Word clock - Output: |
1 x BNC 75Ω port |
