Description

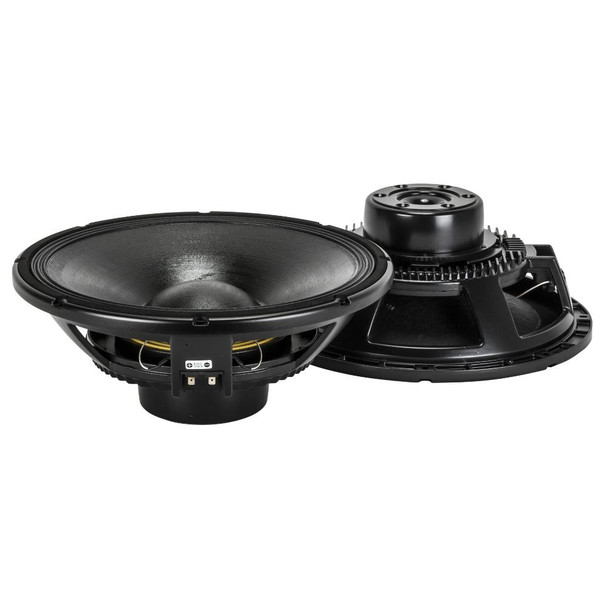

The MB15N405 is a hypervented neo mid-bass design with a linear frequency response and very high efficiency. To get this performance the magnetic structure use a high flux neo disc and the cone assembly a fibre loaded exponential shape along with a high excursion triple roll, constant geometry surround. The fibreglass former and aluminium voice coil provide a very high power handling maintaining a light mass and a proper Q factor for bass alignment.
Features
- 4-inch, fiberglass inside/outside copper voice coil
- 2200W continuous program power handling
- 100 dB Sensitivity
- 45 Hz – 2.5 kHz Frequency range
- Dual-forced air ventilation for minimum power compression
- Triple roll surround and exponential cone geometry
Why We Like This
It combines high efficiency with controlled response, making it a solid choice for mid-bass applications
FAQs
Q: What type of applications is this transducer designed for?
It is designed for mid-bass and low-mid frequency reproduction in professional audio systems.
Q: What makes this driver efficient?
Its neodymium magnetic structure and 100 dB sensitivity contribute to high efficiency.
Q: How does it manage heat and performance consistency?
The dual forced-air ventilation system improves cooling and reduces power compression.
Based in Chicago, IL, Gear Club Direct supports audio professionals with reliable components for high-performance sound systems.
Tech Specs
Nominal Diameter: |
15 inch / 381 mm |
Rated Impedance: |
8 ohm |
Program Power (watt): |
2200 W |
Power handling capacity: |
1100 W |
Sensitivity: |
100.0 dB |
Frequency range: |
45 - 2500 Hz |
Effective piston diameter: |
340 mm / 13.39 inch |
Max. Excursion Before Damage: |
53 mm / 2.09 inch |
Minimum Impedance (ohm): |
5.9 ohm |
Voice Coil Diameter: |
4.0 inch / 102 mm |
Voice Coil Winding Material: |
Aluminum |
Voice Coil Length: |
20 mm / 0.79 inch |
Number of layers: |
2 |
Kind of layers: |
inside/outside |
Top Plate Thickness: |
12 mm / 0.47 inch |
Cone Design: |
Curved |
Surround Material: |
Polycotton |
Surround Design: |
Triple roll |
Magnets: |
Neodymium |
