Description

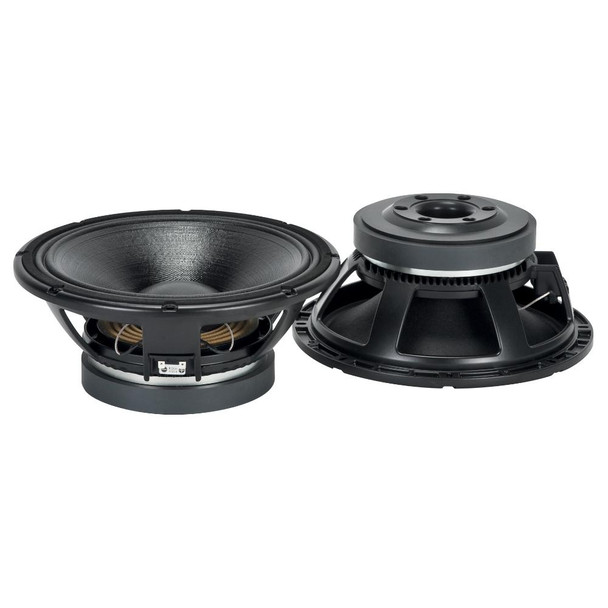

The MB12X351 is designed to provide an excellent frequency response linearity with very low distortion. A very strong neodymium magnetic structure guarantee dynamic and precision, a new and unique 3,5” voice coil design provides a very high power handling, especially recommended in comparison to a standard 3” voice coil. The new dual forced hyper-venting system guarantee a very efficient voice coil ventilation for minimum power compression and incredible power handling.
Features
- 3.5-inch, fiberglass inside/outside copper voice coil
- 1400W continuous program power handling
- 98.5 dB Sensitivity
- 45 Hz – 2.5 kHz Frequency range
Why We Like This
It delivers efficient mid-bass performance with controlled response and reduced distortion.
FAQs
Q: What type of applications is this transducer designed for?
It is designed for mid-bass and low-mid frequency reproduction in professional audio systems.
Q: What makes this driver efficient?
Its neodymium magnetic structure and high sensitivity contribute to efficient performance.
Q: How does it reduce power compression?
The dual forced hyper-venting system improves cooling and airflow.
Based in Chicago, IL, Gear Club Direct supports audio professionals with reliable components for high-performance sound systems.
Tech Specs
Nominal Diameter: |
12 inch / 305 mm |
Rated Impedance: |
8 ohm |
Program Power (watt): |
1400 W |
Power handling capacity: |
700 W |
Sensitivity: |
98.5 dB |
Frequency range: |
45 - 2500 Hz |
Effective piston diameter: |
260 mm / 10.24 inch |
Max. Excursion Before Damage: |
40 mm / 1.57 inch |
Minimum Impedance (ohm): |
7.1 ohm |
Voice Coil Diameter: |
3.5 inch / 89 mm |
Voice Coil Winding Material: |
Copper |
Voice Coil Length: |
19 mm / 0.75 inch |
Number of layers: |
2 |
Kind of layers: |
inside/outside |
Top Plate Thickness: |
10 mm / 0.39 inch |
Cone Design: |
Curved |
Surround Material: |
Polycotton |
Surround Design: |
M-roll |
Magnets: |
Ceramic |
