Description

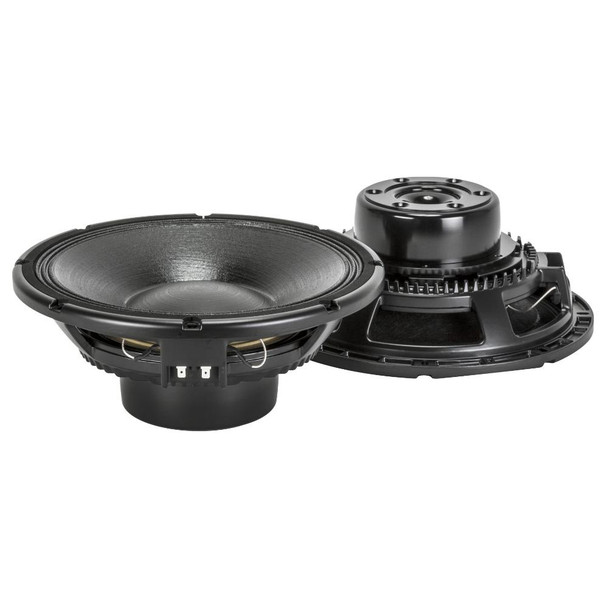

The MB12N405 is a hypervented neo mid-bass design with a linear frequency response and very high efficiency. To get this performance the magnetic structure use a high flux neo disc and the cone assembly a fibre loaded exponential shape along with a high excursion triple roll, constant geometry surround. The fibreglass former and aluminium voice coil provide a very high power handling maintaining a light mass and a proper Q factor for bass alignment.
Features
- 4-inch, fibreglass inside/outside aluminium voice coil
- 2000W continuous program power handling
- 98.5 dB Sensitivity
- 50 Hz – 2 kHz Frequency range
- Dual-forced air ventilation for minimum power compression
- Triple roll surround and exponential cone geometry
Why We Like This
It offers high efficiency with controlled response and reliable cooling for mid-bass applications.
FAQs
Q: What type of applications is this transducer designed for?
It is designed for mid-bass and low-mid frequency reproduction in professional audio systems.
Q: What makes this driver efficient?
Its neodymium magnetic structure and high sensitivity contribute to efficient performance.
Q: How does it manage heat and power compression?
The dual forced-air ventilation system improves cooling and reduces power compression.
Based in Chicago, IL, Gear Club Direct supports audio professionals with reliable components for high-performance sound systems.
Tech Specs
Nominal Diameter: |
12 inch / 305 mm |
Rated Impedance: |
8 ohm |
Program Power (watt): |
2000 W |
Power handling capacity: |
1000 W |
Sensitivity: |
98.5 dB |
Frequency range: |
50 - 2000 Hz |
Effective piston diameter: |
260 mm / 10.24 inch |
Max. Excursion Before Damage: |
53 mm / 2.09 inch |
Minimum Impedance (ohm): |
6.6 ohm |
Voice Coil Diameter: |
4.0 inch / 102 mm |
Voice Coil Winding Material: |
Aluminum |
Voice Coil Length: |
20 mm / 0.79 inch |
Number of layers: |
2 |
Kind of layers: |
inside/outside |
Top Plate Thickness: |
12 mm / 0.47 inch |
Cone Design: |
Curved |
Surround Material: |
Polycotton |
Surround Design: |
Triple roll |
Magnets: |
Neodymium |
