Description

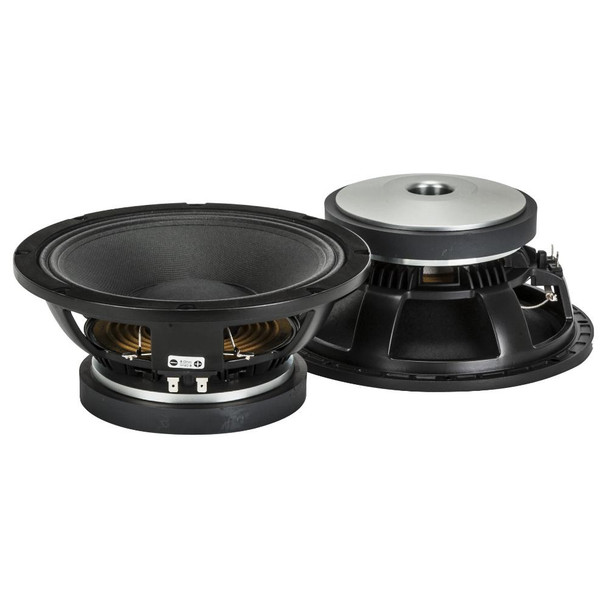

The MB10G251 is designed to provide an excellent frequency response linearity with very low distortion. A strong magnetic structure guarantee dynamic and precision. M-roll surround and spider design offer great linearity and precise reproduction.
Features
- 2.5-inch , fibreglass former, aluminum voice coil
- 600 Watt continuous program power handling
- 98.5 dB Sensitivity
- 55 Hz - 3.0kHz Frequency range
- M-roll surround and exponential cone geometry
Why We Like This
It offers efficient mid-bass performance with controlled response and low distortion.
FAQs
Q: What type of applications is this transducer designed for?
It is designed for mid-bass and low-mid frequency reproduction in professional audio systems.
Q: What contributes to its linear response?
The M-roll surround, spider design, and exponential cone geometry help maintain consistent performance.
Q: What is the frequency range?
55 Hz to 3 kHz.
Based in Chicago, IL, Gear Club Direct supports audio professionals with reliable components for high-performance sound systems.
Tech Specs
Nominal Diameter: |
10 inch / 254 mm |
Rated Impedance: |
8 ohm |
Program Power (watt): |
600 W |
Power handling capacity: |
300 W |
Sensitivity: |
98.5 dB |
Frequency range: |
55 - 3500 Hz |
Effective piston diameter: |
210 mm / 8.27 inch |
Max. Excursion Before Damage: |
40 mm / 1.57 inch |
Minimum Impedance (ohm): |
6.4 ohm |
Voice Coil Diameter: |
2.5 inch / 63 mm |
Voice Coil Winding Material: |
Aluminum |
Voice Coil Length: |
18 mm / 0.71 inch |
Number of layers: |
2 |
Kind of layers: |
inside/outside |
Top Plate Thickness: |
8 mm / 0.31 inch |
Cone Design: |
Curved |
Surround Material: |
Polycotton |
Surround Design: |
M-roll |
