Description

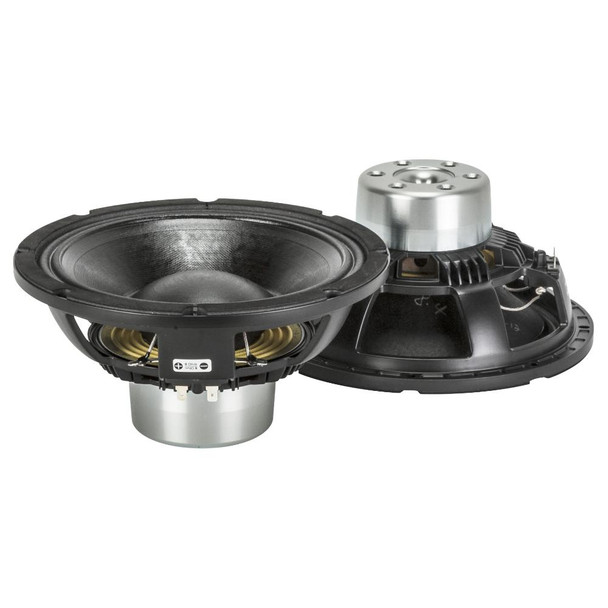

The MB10N305 is a hypervented neo, high linearity mid-bass. The magnetic structure is powered by a large neodymium magnet that provides an extremely high flux density in the gap. The new hyper-vented aluminium basket and magnetic assembly design provide an excellent heat dissipation and lower power compression. Special airforced ventilations are provided for voice coil, magnet assembly and basket. M-roll surround and spider design offer great linearity and precise reproduction.
Features
- 3-inch, fibreglass inside/outside aluminium voice coil
- 1000W continuous program power handling
- 97.5 dB Sensitivity
- 55 Hz – 3.5 kHz Frequency range
- Dual-forced air ventilation for minimum power compression
- M-roll surround and exponential cone geometry
Why We Like This
It offers efficient performance with strong thermal management and controlled mid-bass response.
FAQs
Q: What type of applications is this transducer designed for?
It is designed for mid-bass and low-mid frequency reproduction in professional audio systems.
Q: How does it manage heat and power compression?
The hyper-vented design and forced-air ventilation improve cooling and reduce power compression.
Q: What is the frequency range?
55 Hz to 3.5 kHz.
Based in Chicago, IL, Gear Club Direct supports audio professionals with reliable components for high-performance sound systems.
Tech Specs
Nominal Diameter: |
10 inch / 254 mm |
Rated Impedance: |
8 ohm |
Program Power (watt): |
1000 W |
Power handling capacity: |
500 W |
Sensitivity: |
97.5 dB |
Frequency range: |
55 - 3500 Hz |
Effective piston diameter: |
210 mm / 8.27 inch |
Max. Excursion Before Damage: |
34 mm / 1.34 inch |
Minimum Impedance (ohm): |
6.9 ohm |
Voice Coil Diameter: |
3.0 inch / 76 mm |
Voice Coil Winding Material: |
Aluminum |
Voice Coil Length: |
14 mm / 0.55 inch |
Number of layers: |
2 |
Kind of layers: |
inside/outside |
Top Plate Thickness: |
10 mm / 0.39 inch |
Cone Design: |
Curved |
Surround Material: |
Polycotton |
Surround Design: |
M-roll |
Magnets: |
Neodymium |
