Description

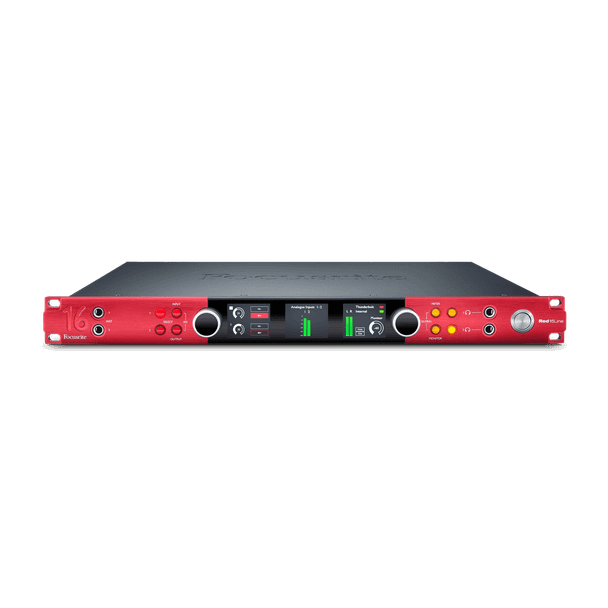

The Focusrite Red 16Line is a 64-input/64-output audio interface for Thunderbolt 3, Pro Tools | HD, and Dante workflows. It combines 16 line inputs and outputs, two Red Evolution microphone preamps, and network audio connectivity in one unit.

Features

Up to 64 inputs and 64 outputs
Dual Thunderbolt 3 ports and Mini DigiLink connections for Pro Tools | HD
Up to 32 x 32 Dante network audio channels
16 line inputs and 16 line outputs on D-sub connectors
Two remote-controlled Red Evolution microphone preamps
Two front-panel instrument inputs and two headphone outputs
Word clock and loop-sync connectivity
Three LCD displays for input and output metering

Why We Like This

Red 16Line gives facilities a way to work between Thunderbolt-based recording and Pro Tools | HD without changing interface cards. Its Dante connections also allow audio routing into a networked system.

FAQs

Q: Can it connect to Pro Tools | HD directly?
A: Yes. The source lists two Mini DigiLink ports for Pro Tools | HD connectivity.

Q: How many analogue line channels are provided?
A: There are 16 line inputs and 16 line outputs, with separate main monitor outputs.

Q: Does it support Dante audio?
A: Yes. The manufacturer data lists up to 32 inputs and 32 outputs over Dante.

Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and creators every day with reliable gear and knowledgeable service.

Tech Specs

0 DBFS Reference Level:	+18 or +24dBu (switchable)
ADAT Channel Assignments @ 176.4 KHz, 192 KHz:	SMUXII: Port 1 = Channels 1 - 2 , Port 2 = Channels 3 - 4
ADAT Channel Assignments @ 44.1 KHz, 48 KHz:	Port 1 = Channels 1 - 8 , Port 2 = Channels 9 - 16
ADAT Channel Assignments @ 88.2 KHz, 96 KHz:	SMUXI: Port 1 = Channels 1 - 4, Port 2 = Channels 5 - 8
ADAT Channel Count:	Up to 16 In and 16 Out
ADAT Input:	2 x TOSLINK connector
ADAT Output:	2 x TOSLINK connector
Air Mode:	2dB boost at 10kHz and -2dB at 20Hz (ref 1kHz). Input impedance drop to 2.2kO
Channel Count:	Up to 64 x 64
Clock Sources:	Internal, ADAT 1, ADAT 2, S/PDIF, Word Clock, Loop Sync or from Dante Network Master
Common-Mode Rejection Ratio:	50/60Hz CMRR: -70dB
Dante Channel Count:	Up to 32 In and 32 Out
Dante Input And Output:	2 x ethernet standard RJ45 connectors (Compatible with Cat 5e and above).
EIN:	<-129dBu 'A'-Weighted (typical)
Frequency Response:	20Hz - 35kHz ±0.2dB
Gain Range:	0-8dB to 63dB in 1dB steps
HPF:	High-Pass Filter (HPF): -3dB @ 80 ± 3Hz, 12dB/Octave, independently switchable per channel
Headphone Outputs 0 DBFS Reference Levels:	+16dBm ± 0.5dB
Headphone Outputs Channel Count:	2 Stereo Channels Out
Headphone Outputs Dynamic Range:	114dB 'A'-weighted (typical), 20Hz - 20kHz
Headphone Outputs Frequency Response:	20Hz - 20kHz ±0.2dB
Headphone Outputs Headphone Impedance:	32O - 600O
Headphone Outputs Headphone Outputs:	2 x 1/4" TRS stereo jack
Headphone Outputs Output Impedance:	10O
Headphone Outputs THD + N:	<-75dB (0.018%) unweighted, 20Hz - 20kHz
Instrument Inputs Air Mode:	2dB boost at 10kHz and -2dB at 20Hz (ref 1kHz)
Instrument Inputs Channel Count:	2 Channels In
Instrument Inputs Frequency Response:	20Hz - 35kHz ±0.2dB, min gain
Instrument Inputs Gain Range:	0-8dB to 63dB in 1dB steps
Instrument Inputs HPF:	-3dB @ 80 ± 3Hz, 12dB/Octave, independently switchable per channel
Instrument Inputs Instrument Inputs:	2 x 1/4" TS stereo jack
Instrument Inputs Max. Input Level:	>+15dBu, min gain
Instrument Inputs Signal-To-Noise Ratio:	117dB 'A'-Weighted (typical), min gain
Instrument Inputs THD + N:	-100dB (0.001%) @ -1dBFS (@ 11dB Gain)
Instrument Inputs Type:	Zin = 2.3MO
Line Inputs 1-16 0 DBFS Reference Level:	+18 or +24dBu (switchable)
Line Inputs 1-16 Common-Mode Rejection Ratio:	50/60Hz CMRR: -70dB
Line Inputs 1-16 Frequency Response:	20Hz - 35kHz ±0.2dB
Line Inputs 1-16 THD + N:	-102dB (0.0008%) @ -1dBFS
Line Inputs 1-16 Type:	Electronically Balanced, Zin = 20kO
Line Inputs Signal-To-Noise Ratio:	119dB 'A'-Weighted (typical)
Line Level Channel Count:	16 In and 16 Out
Line Outputs 1-16 0 DBFS Reference Levels:	+18 or +24dBu (switchable)
Line Outputs 1-16 Dynamic Range:	121dB 'A'-weighted (typical), 20Hz - 20kHz
Line Outputs 1-16 Frequency Response:	20Hz - 35kHz ±0.2dB
Line Outputs 1-16 Output Impedance:	Nominal output impedance = 136O balanced (68O each phase)
Line Outputs 1-16 THD + N:	<-104dB (0.0006%) unweighted, 20Hz - 20kHz; -1dBFS input
Line inputs 1-16 - Line Level Input:	2 x DB-25 connectors (AES59)
Line outputs 1-16 - Line Level Output:	2 x DB-25 connectors (AES59)
Manufacturer SKU:	MORE0001
Max. Input Level:	>+19dBu, min gain
Mic Input:	2 x Female XLR
Mic Inputs Channel Count:	2 In
Monitor Outputs:	2 x 1/4" TRS stereo jack
Monitor Outputs 0 DBFS Reference Levels:	+18dBu
Monitor Outputs Channel Count:	2 Out
Monitor Outputs Dynamic Range:	120dB (A-Weighted)
Monitor Outputs Frequency Response:	20Hz - 35kHz ±0.2dB
Monitor Outputs Output Impedance:	Nominal output impedance = 136O balanced (68O each phase)
Monitor Outputs THD+N:	-80dB (0.01%) unweighted, 20Hz - 20kHz; -1dBFS input
Phantom Power:	+48V, independently switchable per channel.
Primary Port:	2 x Mini DigiLink
Pro Tools Channel Count:	Up to 64 In and 64 Out (32 In and 32 Out per connection)
S/PDIF Channel Count:	2 In and 2 Out (Optical up to 96kHz)
S/PDIF Input:	1 x RCA phono socket (1 x TOSLINK up to 96kHz)
S/PDIF Output:	1 x RCA phono socket (1 x TOSLINK up to 96kHz)
Signal-To-Noise Ratio:	119dB 'A'-Weighted (typical)
Simultaneous inputs & outputs - Line Level Input:	2 x DB-25 connectors (AES59)
Simultaneous inputs & outputs - Line Level Output:	2 x DB-25 connectors (AES59)
Supported Sample Rates:	44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
THD + N:	-102dB (0.0008%) @ -1dBFS
Thunderbolt Channel Count:	Up to 64 In and 64 Out
Thunderbolt Ports:	2 x Thunderbolt 3 Ports (Primary Port 1 and Primary Port 2)
Type:	Electronically Balanced, Zin = 20kΩ
