Description

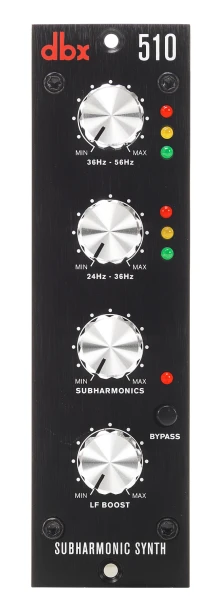

For decades, dbx’s patented Subharmonic Synthesis has rattled foundations enhancing the bass in a variety of professional applications including nightclub and DJ mixing, theatre and film sound, music recording, live music performance and broadcasting. dbx’s Subharmonic Synthesis process actually produces a new, Waveform Modeled bass note, exactly an octave below the bass in the original audio.
Features
- Based on dbx's fabled Subharmonic Synthesizer processors
- Simple, intuitive interface
- Synthesized frequency level indicator LEDs
- Individual controls for two ranges of subharmonic frequencies
- Subharmonics level control
- Synthesis Bypass switch
Why We Like This
It brings a proven dbx studio-processing design to the space-saving 500 Series format, making it easy to build a flexible modular signal chain.
FAQs
Q: Does the dbx 510 work by itself?
A: No. It is a 500 Series module and requires a compatible powered 500 Series chassis.
Q: What is the main job of the dbx 510?
A: It is designed for musical low-frequency enhancement within a modular studio or live-processing rack.
Q: Can the dbx 510 be combined with other 500 Series modules?
A: Yes. It can be installed alongside compatible preamps, EQs, compressors, and other 500 Series processors, subject to the chassis power capacity.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Brand: |
dbx |
CMRR: |
>40 dB; typically >55 dB at 1 kHz |
Country of Origin: |
CN |
DIM H (in.): |
3.5 |
DIM L (in.): |
10 |
DIM W (in.): |
6 |
Dimensions (H x W x D): |
5.25” x 1.5” x 6” (13.34 cm x 3.81 cm x 15.24 cm) |
Dynamic Range: |
>120 dB |
Frequency Response: |
20Hz – 20kHz, + 0/-0.5dB; 14 Hz – 120 kHz, +0/-3 dB |
Input Impedance: |
20 k Ω balanced, 10 k Ω unbalanced |
Input Type: |
Electronically balanced/unbalanced, RF filtered |
Link: |
https://dbxpro.com/en-US/products/510 |
MAP: |
250 |
MSRP: |
310 |
Max Input Level: |
+22 dBu |
Max Output Level: |
+22 dBu |
Model: |
510 |
Noise: |
<-99 dBu, Unweighted (22 Hz – 22 kHz) |
Output Impedance: |
Balanced 30Ω, unbalanced 15Ω |
Output Type: |
Electronically balanced/unbalanced, RF filtered |
Power Current Draw: |
85 mA per power rail |
Power Draw: |
2.7 watts |
Power Requirements: |
+/- 16V DC |
Product Description Long: |
SubHarmonic Synthesizer |
Product Description Short: |
500 Series |
Product Type: |
500 Series Subharmonic Synthesizer |
Rack Space: |
1 Slot |
Rack System Compatibility: |
500 Series Compatible Power-frame |
SKU: |
DBX510 |
Synthesis Frequency Range: |
26-56 Hz (from 54-110 Hz input signal) |
TAA Compliance: |
Non Compliant |
THD+Noise: |
<0.003% typical from 22 Hz – 22 kHz at 0 dBu |
UPC: |
691991000669 |
Weight (lb.): |
1.5 |
