Description

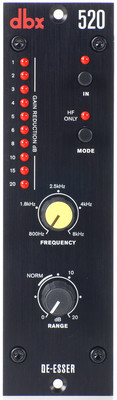

The dbx 520 will help you expertly tame the excessive sibilance often found in vocals and other high frequency dense material. Based upon the legendary dbx 902, the dbx 520’s unique features make it possible to achieve an exact amount of de-essing regardless of variations in signal levels. The 520 allows you to create brilliant, crisp vocals without sibilance!
Features
- Based on the classic dbx 902
- Frequency Control Range from 800Hz to 8kHz
- Expanded Scale LED Gain Reduction Metering
- De-essing Amount Range from 0dB to 20dB
- In/Out Switch
- HF Mode Switch
Why We Like This
It brings a proven dbx studio-processing design to the space-saving 500 Series format, making it easy to build a flexible modular signal chain.
FAQs
Q: Does the dbx 520 work by itself?
A: No. It is a 500 Series module and requires a compatible powered 500 Series chassis.
Q: What is the main job of the dbx 520?
A: It is designed for smooth and consistent sibilance control within a modular studio or live-processing rack.
Q: Can the dbx 520 be combined with other 500 Series modules?
A: Yes. It can be installed alongside compatible preamps, EQs, compressors, and other 500 Series processors, subject to the chassis power capacity.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Attack Rate: |
Program-dependent, 2 ms for 10 dB above threshold, 600 μs for 20 dB above threshold, to achieve 63% gain reduction |
Brand: |
dbx |
CMRR: |
>40 dB; typically >55 dB at 1 kHz |
Controls: |
Frequency, Range |
Country of Origin: |
CN |
Crossover Filter Type: |
12 dB/octave, phase coherent |
Crossover Point: |
Variable 800 Hz to 8 kHz |
DIM H (in.): |
4 |
DIM L (in.): |
10 |
DIM W (in.): |
6.5 |
De-essing Range: |
Operates uniformly over input range of -40 dBu to +22 dBu without requiring adjustment |
Dimensions (H x W x D): |
5.25” x 1.5” x 6” (13.34 cm x 3.81 cm x 15.24 cm) |
Dynamic Range: |
>114 dB |
Frequency Response: |
20Hz – 20kHz, + 0/-0.5dB; 14 Hz – 120 kHz, +0/-3 dB |
GAIN: |
Unity |
Indicators: |
IN/OUT, HF ONLY |
Input Impedance: |
20 k Ω balanced, 10 k Ω unbalanced |
Input Type: |
Electronically balanced/unbalanced, RF filtered |
Link: |
https://dbxpro.com/en-US/products/520 |
MAP: |
305 |
MSRP: |
380 |
Max Input Level: |
+22 dBu |
Max Output Level: |
+22 dBu |
Maximum Attenuation: |
Variable 0 to 20 dB |
Metering: |
LED Column: 1, 2, 3, 4, 6, 8, 10, 12, 15, 20 dB gain reduction |
Model: |
520 |
Noise: |
<-99 dBu, Unweighted (22 Hz – 22 kHz) |
Output Impedance: |
Balanced 30Ω, unbalanced 15Ω |
Output Type: |
Electronically balanced/unbalanced, RF filtered |
Power Current Draw: |
76 mA per power rail |
Power Draw: |
2.4 watts |
Power Requirements: |
+/- 16V DC |
Product Description Long: |
De-Esser |
Product Description Short: |
500 Series |
Product Type: |
500 Series De-Esser |
Rack Space: |
1 Slot |
Rack System Compatibility: |
500 Series Compatible Power-frame |
Release Rate: |
925 dB/sec |
SKU: |
DBX520 |
Switches: |
IN/OUT, Mode (HF ONLY/NORMAL) |
TAA Compliance: |
Non Compliant |
THD+Noise: |
<0.006% typical, No compression, 1 input kHz at 0 dBu |
UPC: |
691991000652 |
Weight (lb.): |
2 |
