Description

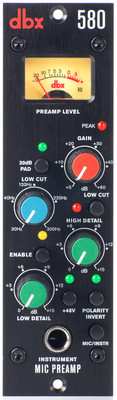

The dbx 580 Microphone Preamp is the perfect partner to your microphones, providing sonically-transparent gain that will reveal the detail and audio signature of even the most esoteric microphones. It will transform their low level output signal to a high level, high current output for direct connection to the line level inputs of your mixer, sampler or any other recording medium that accepts line level, analog input.
Features
- Premium low-noise Mic Pre with up to 60dB of gain
- Variable-Frequency Low-Cut Filter
- Low and High Detail Equalization
- 20dB Pad
- Polarity Invert
- +48V Phantom Power
- 1/4" Front Panel Instrument Input
- VU Meter
- Peak Indicator
Why We Like This
It brings a proven dbx studio-processing design to the space-saving 500 Series format, making it easy to build a flexible modular signal chain.
FAQs
Q: Does the dbx 580 work by itself?
A: No. It is a 500 Series module and requires a compatible powered 500 Series chassis.
Q: What is the main job of the dbx 580?
A: It is designed for clean modular microphone gain and tone shaping within a modular studio or live-processing rack.
Q: Can the dbx 580 be combined with other 500 Series modules?
A: Yes. It can be installed alongside compatible preamps, EQs, compressors, and other 500 Series processors, subject to the chassis power capacity.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Brand: |
dbx |
CMRR: |
>60 dB; typically >70 dB from 20 Hz – 20 kHz |
Country of Origin: |
CN |
DIM H (in.): |
3.5 |
DIM L (in.): |
10 |
DIM W (in.): |
6 |
Dimensions (H x W x D): |
5.25” x 1.5” x 6” (13.34 cm x 3.81 cm x 15.24 cm) |
EIN: |
Typically > -128.0 dBu, 150 Ω source impedance, 22 kHz bandwidth, unweigh |
Frequency Response: |
20Hz - 20kHz, +0/-1dB; <10Hz - 30kHz, +0/-3dB |
Input Impedance: |
1.7kΩ |
Input Type: |
Electronically balanced/unbalanced, RF filtered |
Instrument Input Connector: |
Tip-Sleeve ¼” Jack |
Instrument Input Impedance: |
500 k Ω |
Instrument Input Type: |
Unbalanced |
Link: |
https://dbxpro.com/en-US/products/580 |
MAP: |
395 |
MSRP: |
490 |
Max Input Level: |
+15 dBu balanced or unbalanced (20dB PAD disabled) +35 dBu balanced or unbalanced (20dB PAD enabled) |
Max Instrument Input Level: |
+21 dBu unbalanced |
Max Output Level: |
+22dBu |
Maximum Gain: |
60dB |
Model: |
580 |
Output Impedance: |
Balanced 30 Ohms, unbalanced 15 Ohms |
Output Type: |
Electronically balanced/unbalanced, RF filtered |
Power Current Draw: |
80 mA per power rail |
Power Draw: |
2.56 watts |
Power Requirements: |
+/- 16V DC |
Product Description Long: |
Mic Preamp |
Product Description Short: |
500 Series |
Product Type: |
500 Series Microphone Preamplifier |
Rack Space: |
1 Slot |
Rack System Compatibility: |
500 Series Compatible Power-frame |
SKU: |
DBX580 |
TAA Compliance: |
Non Compliant |
THD+Noise: |
<0.006% typical, 20Hz - 20kHz, 0dBu out |
UPC: |
691991000621 |
Weight (lb.): |
1.5 |
