Description

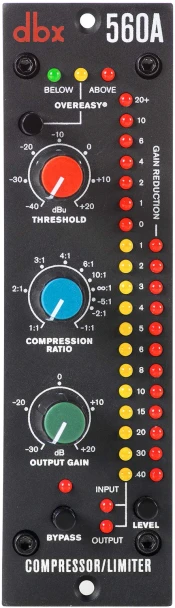

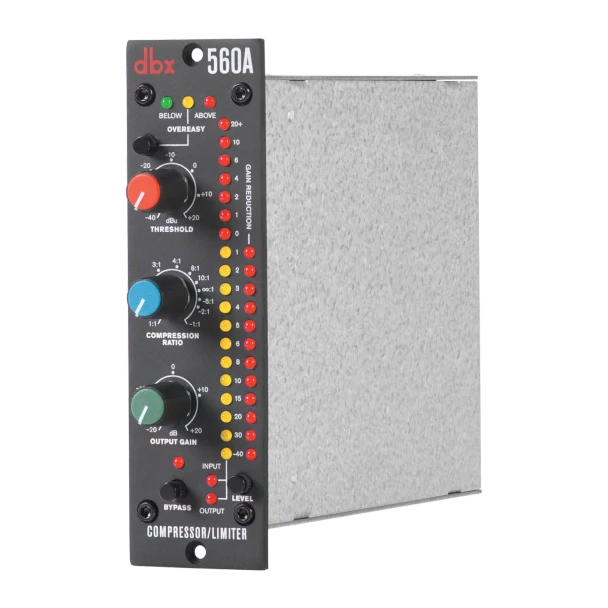

The dbx 560A Compressor/Limiter offers legendary VCA-based compression in the increasingly popular 500 Series format. dbx has a much-heralded history with modular processors dating back to our 900 Series and the 560A continues that tradition. Featuring the same switch-selectable OverEasy® and Hard Knee compression curves as our industry-standard dbx 160A rackmount processor, the dbx 560A will be your new workhorse compressor!

Features

OverEasy® or classic hard knee compression with dbx’s ultra-musical program dependent attack and release times
Compression ratio variable from 1:1 through infinity:1 to -1:1
Precise RMS gain reduction and input/output meter displays with calibration control for different operating levels
True RMS level detection
Exclusive Infinity+ compression using negative ratios

Why We Like This

It brings a proven dbx studio-processing design to the space-saving 500 Series format, making it easy to build a flexible modular signal chain.

FAQs

Q: Does the dbx 560A work by itself?
A: No. It is a 500 Series module and requires a compatible powered 500 Series chassis.

Q: What is the main job of the dbx 560A?
A: It is designed for classic dbx dynamics in a modular format within a modular studio or live-processing rack.

Q: Can the dbx 560A be combined with other 500 Series modules?
A: Yes. It can be installed alongside compatible preamps, EQs, compressors, and other 500 Series processors, subject to the chassis power capacity.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

Brand:	dbx
CMRR:	>40 dB; typically >55 dB at 1 kHz
Compression Gain Adjustment Range:	Variable from -20 dB to +20 dB
Compressor Attack Time:	Program-Dependent; Typically 15ms for 10dB, 5ms for 20dB, 3ms for 30dB
Compressor Ratio:	Variable 1:1 to ∞:1 thru to -1:1; 60dB Maximum Compression
Compressor Release Time:	Program-Dependent; Typically 8ms for 1dB, 80ms for 10dB, 400ms for 50dB; 125dB/Sec Rate
Compressor Threshold Characteristic:	Selectable OverEasy® or Hard Knee
Compressor Threshold Range:	-40 dBu to +20 dBu
Country of Origin:	CN
Current Draw:	60mA per power rail
DIM H (in.):	4
DIM L (in.):	10
DIM W (in.):	6.5
Dimensions (H x W x D):	5.25” x 1.5” x 6” (13.34cm x 3.81cm x 15.24cm)
Dynamic Range:	>119 dB
Frequency Response:	20 Hz – 20 kHz, + 0/-0.5 dB; 0.5 Hz – 100 kHz, +0/-3 dB
Input Impedance:	40kΩ balanced, 20kΩ unbalanced
Input Type:	Electronically balanced/unbalanced, RF filtered
Link:	https://dbxpro.com/en-US/products/560a
MAP:	365
MSRP:	450
Maximum Input Level:	+22dBu
Maximum Output Level:	+22dBu
Model:	560A
Noise:	<-97 dBu, Unweighted (22 Hz – 22 kHz)
Output Impedance:	Balanced 30Ω, unbalanced 15Ω
Output Type:	Electronically balanced/unbalanced, RF filtered
Power Draw:	1.92 watts
Power Requirements:	+/- 16VDC
Product Description Long:	Compressor/Limiter
Product Description Short:	500 Series
Product Type:	500 Series Compressor/Limiter
Rack Space:	1 Slot
Rack System Compatibility:	500 Series Compatible Power-frame
SKU:	DBX560A
TAA Compliance:	Non Compliant
THD+Noise:	<0.005% typical, No compression, 1 kHz input at 0 dBu; <0.07% typical, Any Amount of Compression up to 40 dB @ 1 kHz
UPC:	691991000638
Weight (lb.):	1
