AMX NMX-ENC-N1133A-C Encoder Card Minimal Proprietary Compression Video Over IP Encoder with KVM, AES67 Support, Card

The new NMX-ENC-N1133A-C provides the functionality of the NMX-ENC-N1133A in a card form factor for use with the NMX-ACC-N9206 2RU Rack Mount Cage, providing a clean rack mount solution for multiple encoders and decoders. It Features improved digital pixel reproduction and cut the already imperceptible latency in half. Packetized video streams not only remain visually lossless throughout distribution, they also arrive instantly. It has separate HDMI and VGA/RGB inputs, supports PoE, AES67, and has a separate SFP port. The SFP fiber path allows visually lossless video to be routed on a fiber-only network and.

Features

• Minimal Proprietary Compression Video Over IP Encoder with KVM, AES67 Support, Card
• Supports AES67 audio networking
• Supports KVM applications
• Supports Power over Ethernet connectivity
• Includes SFP-based network connectivity
• Video: Digital Video Input: HDMI, DVI-D (through adapter), RGB/VGA Analog Video Input: HD-15 VGA, Component Component is supported through a passive adapter Video Output: Network video over Ethernet via RJ45 port or fiber via 1G SFP port, HDMI, DVI-D DVI-D is supported through a passive adapter Formats HDMI, DVI-D (through adapter), Dual-Mode DisplayPort (DP++), HDCP content protection support, RGBHV, YPbPr DVI-D and Dual-Mode DisplayPort (DP++) are supported through a passive adapter Progressive Input Resolutions Supports most common HD up to 1920x1200. **720x480 @ 59Hz, 640x480 @ 60Hz, **720x480 @ 60Hz, **720x576 @ 50Hz, 800x600 @ 56Hz, 800x600 @ 60Hz, **1280x720 @ 50Hz, **1280x720 @ 59Hz, **1280x720 @ 60Hz, 1360x768 @ 60Hz, 1366x768 @ 60Hz, 1024x768 @ 60Hz, 1280x800 @ 60Hz, 1152x864 @ 60Hz, 1600x900 @ 60Hz, 1440x900 @ 60Hz, 1280x960 @ 60Hz, 1280x1024 @ 60Hz, ***1600x1200 @ 60Hz, 1680x1050 @ 60Hz, 1920x1080 @ 23Hz, 1920x1080 @ 24Hz, 1920x1080 @ 25Hz, 1920x1080 @ 29Hz, 1920x1080 @ 30Hz, **1920x1080 @ 50Hz, **1920x1080 @ 59Hz, **1920x1080 @ 60Hz, **1920x1080i @ 50Hz, **1920x1080i @ 59Hz, **1920x1080i @ 60Hz, ***1920x1200 @ 60Hz Interlaced Input Resolutions Supports 1080i60. **720x480 @ 59Hz, 640x480 @ 60Hz, **720x480 @ 60Hz, **720x576 @ 50Hz, 800x600 @ 56Hz, 800x600 @ 60Hz, **1280x720 @ 50Hz, **1280x720 @ 59Hz, **1280x720 @ 60Hz, 1360x768 @ 60Hz, 1366x768 @ 60Hz, 1024x768 @ 60Hz, 1280x800 @ 60Hz, 1152x864 @ 60Hz, 1600x900 @ 60Hz, 1440x900 @ 60Hz, 1280x960 @ 60Hz, 1280x1024 @ 60Hz, ***1600x1200 @ 60Hz, 1680x1050 @ 60Hz, 1920x1080 @ 23Hz, 1920x1080 @ 24Hz, 1920x1080 @ 25Hz, 1920x1080 @ 29Hz, 1920x1080 @ 30Hz, **1920x1080 @ 50Hz, **1920x1080 @ 59Hz, **1920x1080 @ 60Hz, **1920x1080i @ 50Hz, **1920x1080i @ 59Hz, **1920x1080i @ 60Hz, ***1920x1200 @ 60Hz Analog Input ResolutionsNOTE: Input resolutions supported @60Hz refresh rates are also supported @59.94Hz. Supports most common HD up to 1920x1200. **720x480 @ 59Hz, 640x480 @ 60Hz, **720x480 @ 60Hz, **720x576 @ 50Hz, 800x600 @ 56Hz, 800x600 @ 60Hz, **1280x720 @ 50Hz, **1280x720 @ 59Hz, **1280x720 @ 60Hz, 1360x768 @ 60Hz, 1366x768 @ 60Hz, 1024x768 @ 60Hz, 1280x800 @ 60Hz, 1152x864 @ 60Hz, 1600x900 @ 60Hz, 1440x900 @ 60Hz, 1280x960 @ 60Hz, 1280x1024 @ 60Hz, ***1600x1200 @ 60Hz, 1680x1050 @ 60Hz, 1920x1080 @ 23Hz, 1920x1080 @ 24Hz, 1920x1080 @ 25Hz, 1920x1080 @ 29Hz, 1920x1080 @ 30Hz, **1920x1080 @ 50Hz, **1920x1080 @ 59Hz, **1920x1080 @ 60Hz, **1920x1080i @ 50Hz, **1920x1080i @ 59Hz, **1920x1080i @ 60Hz, ***1920x1200 @ 60Hz Analog-To-Digital Conversion: 8-bit 165 MHz per each of three color channelsNOTE: The N1133 Encoder does not accept Composite or S-Video (YC). **supported in component mode ***reduced blanking only
• Audio: Input Signal Types: Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo (Balanced or Unbalanced) Output Signal Types: Ethernet at 48-kHz (standard SVSI audio stream or AES67, user selectable) HDMI Audio Formats: 8ch PCM Analog Audio Format: Stereo 2-channel Analog-To-Digital Conversion: 16-bit 32 kHz, 44.1 kHz and 48 kHz

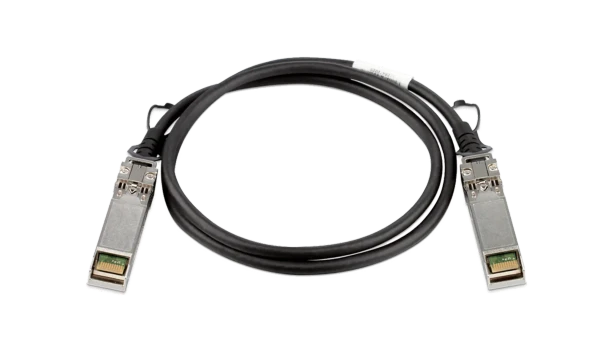

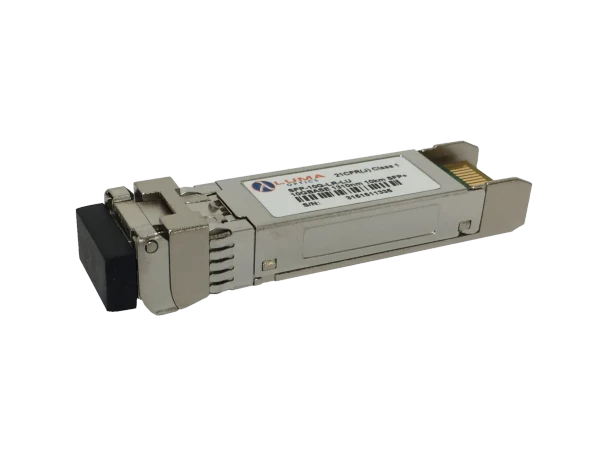

• Ports: +12V 2A: One 12 Volt DC power input P0: 8-wire RJ45 female 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port Provides the network connection, network AV video, and power to the Encoders and Decoders P1: SFP port (SFP fiber transceiver or direct attach cable not included) for MPC compressed networked AV video Provides network connection to the Encoders and Decoders IR: 2-pin terminal Phoenix connector Provides Infrared (IR) output only (33-60 kHz; typically 39 kHz). Emitter may be necessary (not included) RS232: 3-pin terminal Phoenix connector which provides a serial control interface. Full duplex communication. Available terminal speed settings: 1200-115200 baud rate AUDIO: 5-pin terminal Phoenix connector which provides user-selectable balanced/unbalanced input. Dedicated audio input HDMI IN: HDMI video input VGA IN: DB15 analog input USB connectors (front panel): USB-B control input and two USB-A control inputs

Why We Like This

This AMX networked AV product supports scalable IP-based video distribution, helping integrators build organized, high-performance signal transport systems.

FAQs

Q: What is the AMX NMX-ENC-N1133A-C Encoder Card?
A: The AMX NMX-ENC-N1133A-C Encoder Card is minimal proprietary compression video over ip encoder with kvm, aes67 support, card.

Q: What AMX FG number is listed for the NMX-ENC-N1133A-C Encoder Card?
A: FGN1133A-CD

Q: Is the AMX NMX-ENC-N1133A-C Encoder Card a standard availability item?
A: The source identifies this product as limited availability.

Q: What type of product is the AMX NMX-ENC-N1133A-C Encoder Card?
A: Minimal Proprietary Compression Video Over IP Encoder with KVM, AES67 Support, Card
