Description
The N3000 Video over IP Series extends the reach of SVSI's Networked AV solutions to the WAN for streaming, video to desktop, digital signage, set-top boxes, or mobile devices applications. Fully integrated with existing Networked AV control options, the N3000 Series delivers the highest quality HD video content at the lowest bandwidth for the most demanding applications. Moving video to or from the Cloud just became a lot easier with the N3000.
Features
- H.264 Compressed Video over IP Encoder, PoE, SFP, HDMI, USB for Record, Card
- Supports Power over Ethernet connectivity
- Includes SFP-based network connectivity
- Uses H.264 video compression
- Video: Digital Video Input: HDMI, DVI-D, Dual-Mode DisplayPort (DP++), RGB/VGA DVI-D and Dual-Mode DisplayPort (DP++) are supported through a passive adapter Analog Video Input HD-15 VGA, Component Component is supported through a passive adapter Video Output Network video over Ethernet via RJ45 port or fiber via 1G SFP port, HDMI, DVI-D DVI-D is supported through a passive adapter Formats: HDMI, DVI-D (through adapter), HDCP content protection support, RGBHV, YPbPr Progressive Input Resolutions Supports most common HD up to 1080p60. *720x480 @ 59Hz, 640x480 @ 60Hz, *720x480 @ 60Hz, *720x576 @ 50Hz, 800x600 @ 56Hz, 800x600 @ 60Hz, *1280x720 @ 50Hz, *1280x720 @ 59Hz, *1280x720 @ 60Hz, 1024x768 @ 60Hz, 1280x800 @ 60Hz, 1440x900 @ 60Hz, 1680x1050 @ 60Hz, 1920x1080 @ 24Hz, 1920x1080 @ 25Hz, 1920x1080 @ 29Hz, 1920x1080 @ 30Hz, *1920x1080 @ 50Hz, *1920x1080 @ 59Hz, *1920x1080 @ 60Hz, *1920x1080i @ 50Hz, *1920x1080i @ 59Hz, *1920x1080i @ 60Hz Interlaced Input Resolutions Supports 1080i60. *720x480 @ 59Hz, 640x480 @ 60Hz, *720x480 @ 60Hz, *720x576 @ 50Hz, 800x600 @ 56Hz, 800x600 @ 60Hz, *1280x720 @ 50Hz, *1280x720 @ 59Hz, *1280x720 @ 60Hz, 1024x768 @ 60Hz, 1280x800 @ 60Hz, 1440x900 @ 60Hz, 1680x1050 @ 60Hz, 1920x1080 @ 24Hz, 1920x1080 @ 25Hz, 1920x1080 @ 29Hz, 1920x1080 @ 30Hz, *1920x1080 @ 50Hz, *1920x1080 @ 59Hz, *1920x1080 @ 60Hz, *1920x1080i @ 50Hz, *1920x1080i @ 59Hz, *1920x1080i @ 60Hz Analog Input ResolutionsInput resolutions supported @60Hz refresh rates are also supported @59.94Hz Supports most common HD up to 1080p60. *720x480 @ 59Hz, 640x480 @ 60Hz, *720x480 @ 60Hz, *720x576 @ 50Hz, 800x600 @ 56Hz, 800x600 @ 60Hz, *1280x720 @ 50Hz, *1280x720 @ 59Hz, *1280x720 @ 60Hz, 1024x768 @ 60Hz, 1280x800 @ 60Hz, 1440x900 @ 60Hz, 1680x1050 @ 60Hz, 1920x1080 @ 24Hz, 1920x1080 @ 25Hz, 1920x1080 @ 29Hz, 1920x1080 @ 30Hz, *1920x1080 @ 50Hz, *1920x1080 @ 59Hz, *1920x1080 @ 60Hz, *1920x1080i @ 50Hz, *1920x1080i @ 59Hz, *1920x1080i @ 60Hz Output Resolutions: Matched to inputs Analog-To-Digital Conversion: 8-bit 165 MHz per each of three color channelsThe N3132 Encoder does not accept Composite or SVideo (YC) *supported in component mode
- Audio: Input Signal Types: Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo (Balanced or Unbalanced) Output Signal Types: Ethernet, Embedded audio on HDMI or DVI-D (through adapter) HDMI output refers to pass-through video on the HDMI OUT port HDMI Audio Formats: Stereo 2-channel Analog Audio Formats: Stereo 2-channel Analog-To-Digital Conversion: 16-bit 32 kHz, 44.1 kHz and 48 kHz NOTE: HDMI output refers to pass-through video on the HDMI OUT port.

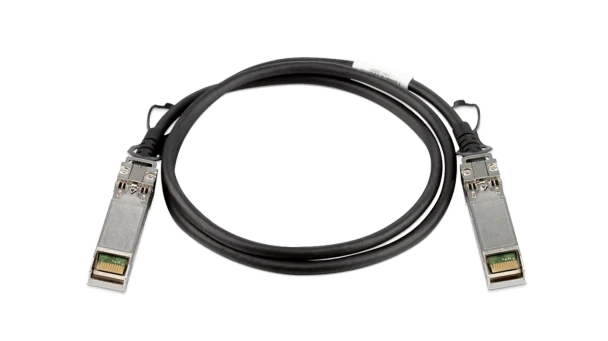

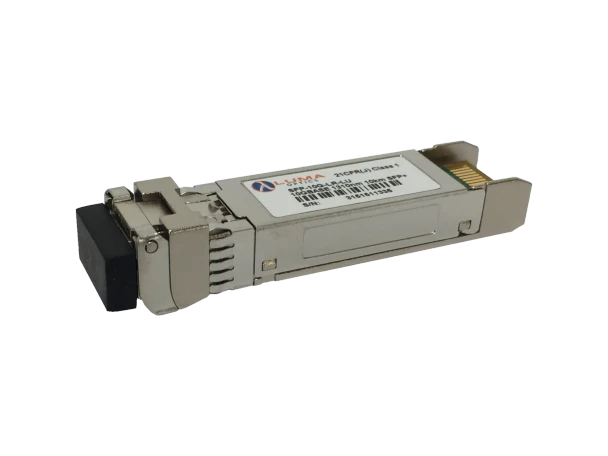

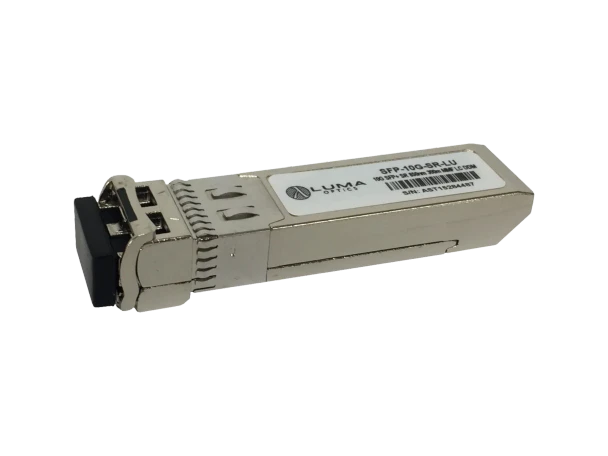

- Ports: +12V 2A: One 12 Volt DC power input. P0 8-wire RJ45 female 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port Provides the network connection, network AV video, and power to the Encoders and Decoders P1 SFP port (SFP fiber transceiver or direct attach cable not included) Provides the network connection and network AV video IR 2-pin terminal Phoenix connector Provides Infrared (IR) output only (33-60 kHz; typically 39 kHz). Emitter may be necessary (not included) RS232 3-pin terminal Phoenix connector Provides a serial control interface. Full duplex communication. Available terminal speed settings: 9600-115200 baud rate AUDIO 5-pin terminal Phoenix connector Provides user-selectable balanced/unbalanced input. Dedicated audio input HDMI OUT: HDMI video output (passive pass-through from HDMI IN) HDMI IN: HDMI video input VGA IN: DB15 analog input USB connector (front panel): One USB-A control input
Why We Like This
This network accessory supports the connectivity needs of compatible AMX AV-over-IP deployments.
FAQs
Q: What is the AMX NMX-ENC-N3132-C Encoder Card?
A: The AMX NMX-ENC-N3132-C Encoder Card is h.264 compressed video over ip encoder, poe, sfp, hdmi, usb for record, card.
Q: What AMX FG number is listed for the NMX-ENC-N3132-C Encoder Card?
A: FGN3132-CD
Q: Is the AMX NMX-ENC-N3132-C Encoder Card a standard availability item?
A: The source identifies this product as limited availability.
Q: What type of product is the AMX NMX-ENC-N3132-C Encoder Card?
A: H.264 Compressed Video over IP Encoder, PoE, SFP, HDMI, USB for Record, Card
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Audio: |
Input Signal Types: Embedded audio on HDMI (DVI-D through adapter) or Analog Stereo (Balanced or Unbalanced) Output Signal Types: Ethernet, Embedded audio on HDMI or DVI-D (through adapter) HDMI output refers to pass-through video on the HDMI OUT por |
Brand: |
AMX |
Communications: |
Ethernet P0 10/100/1000 Mbps, auto-negotiating, auto-sensing, full/half duplex, DHCP, Auto IP, and Static IP P1 1 Gbps port which accepts compatible fiber transceivers or direct attach cables (fiber or copper cabling) HDMI: HDCP, EDID management |
Controls and Indicators - Front Panel: |
RESET Button Recessed pushbutton Press to initiate a 'warm restart' causing the processor to reset, but not lose power. A reset does NOT affect the current settings ID Button Recessed pushbutton Press to send a notification out on the network to iden |
Controls and Indicators - Rear Panel: |
PWR LED: Same as POWER LED described above HDMI LED: On (green) when there is a connection to a valid video source STAT LED: Same as STATUS LED described above STRM LED: On (green) when the unit is streaming video |
Environmental: |
Temperature: 32° to 104°F (0° to 40°C) Humidity: 10% to 90% RH (non-condensing) Heat Dissipation: Up to ~44 BTU/Hr |
FG Numbers: |
FGN3132-CD |
General: |
Regulatory Compliance: FCC, CE, and NTRL Recommended Accessories: NMX-ACC-N9206 (FGN9206), 2RU Rack Mount Cage with Power for Six SVSI N-Series Card Units |
Latency: |
Latency: 175 ms at 60 fps Note: This is the combined encode plus decode latency. Total latency from source to screen will also include any network latency. Note: Scaling adds one frame of latency (17ms at 60fps) |
Manufacturer: |
AMX |
Model: |
NMX-ENC-N3132-C Encoder Card |
Ports: |
+12V 2A: One 12 Volt DC power input. P0 8-wire RJ45 female 10/100/1000 Mbps 10/100/1000Base-T auto-sensing gigabit Ethernet switch port Provides the network connection, network AV video, and power to the Encoders and Decoders P1 SFP port (SFP fiber t |
Product Status: |
Limited Availability |
Product Type: |
H.264 Compressed Video over IP Encoder, PoE, SFP, HDMI, USB for Record, Card |
Video: |
Digital Video Input: HDMI, DVI-D, Dual-Mode DisplayPort (DP++), RGB/VGA DVI-D and Dual-Mode DisplayPort (DP++) are supported through a passive adapter Analog Video Input HD-15 VGA, Component Component is supported through a passive adapter Video Outp |
