Description

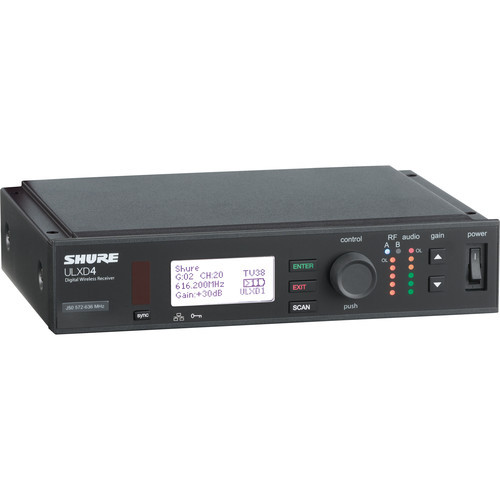

The Shure ULXD4-V50 Single-Channel VHF Digital Wireless Receiver delivers professional ULX-D digital wireless performance for large venues, A/V installations, and live sound environments. Featuring secure AES 256-bit encryption, Ethernet networking, and reliable VHF digital reception, it provides advanced wireless system control in a compact rackmount design.
Features
- Single-channel digital wireless receiver for Shure ULX-D systems
- V50 frequency band covering 174 to 216 MHz
- Digital VHF wireless technology with diversity reception
- AES 256-bit encryption for secure wireless transmission
- Supports up to 30 compatible systems per frequency band
- Ethernet connection for ShurePlus Channels remote control
- Balanced XLR and 1/4-inch TRS audio outputs
- Rackmount design with included mounting hardware
Why We Like This
The ULXD4-V50 offers professional Shure digital wireless performance in the VHF range with secure transmission, network control, and reliable operation for demanding installations.
FAQs
Q: Does the Shure ULXD4-V50 include a transmitter?
A: No. This model includes the receiver only and requires a compatible ULX-D transmitter.
Q: What frequency range does the ULXD4-V50 operate on?
A: The V50 band operates from 174 to 216 MHz.
Q: Is the ULXD4-V50 rack mountable?
A: Yes. It supports rack mounting with included hardware.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Brand: |
Shure |
Manufacturer: |
Shure |
Model: |
ULXD4-V50 |
Product Type: |
Single-Channel VHF Digital Wireless Receiver |
Wireless Technology: |
Digital VHF |
RF Frequency Band: |
V50: 174 to 216 MHz |
Receiver Type: |
1x Tabletop |
Number of Audio Channels: |
1 |
Included Transmitters: |
No Transmitters Included |
Microphone Type: |
No Microphone Included |
Diversity: |
Yes |
Number of RF Channel Frequencies: |
1680 |
Max Transmitters per Band: |
30 |
Latency: |
< 2.9 ms |
Encryption: |
AES 256 |
Mobile App Compatible: |
Yes: Android & iOS, ShurePlus Channels Remote Control |
Mounting Options: |
Rackmount with Included Hardware, 1U |
Antenna: |
2x Removable BNC 1/2 Wave External Rear-Mount |
Audio I/O: |
1x XLR 3-Pin Balanced Output, 1x 1/4-inch TRS Balanced Output |
Network I/O: |
1x RJ45 Ethernet |
Gain Range: |
-18 to +42 dB (1 dB Steps) |
Frequency Response: |
30 Hz to 20 kHz ±1 dB (Dependent on Mic) |
Display: |
Backlit LCD |
Power Requirements: |
15 VDC at 600 mA AC/DC Adapter Included |
Input Power: |
100 to 240 VAC 50/60 Hz |
Housing: |
Steel |
Dimensions: |
7.8 x 6.7 x 1.7 inches / 197 x 171 x 171 mm |
Shipping Length: |
18.2 inches |
Shipping Width: |
14.6 inches |
Shipping Height: |
3.7 inches |
