Description

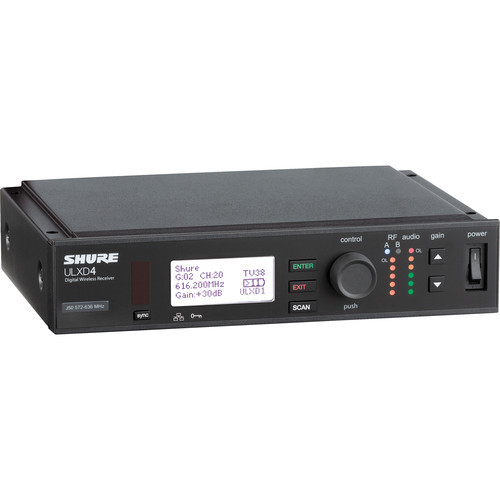

The Shure ULXD4-X52 Single-Channel Digital Wireless Receiver delivers professional ULX-D digital wireless performance for large venues, A/V installations, and live sound environments. Featuring secure AES 256-bit encryption, Ethernet networking, and reliable UHF reception, it provides precise wireless system control in a compact half-rack design.
Features
- Single-channel digital wireless receiver for Shure ULX-D systems
- X52 frequency band covering 902 to 928 MHz
- Digital UHF wireless technology with diversity reception
- AES 256-bit encryption for secure wireless transmission
- Supports up to 12 compatible systems per frequency band
- Ethernet connection for ShurePlus Channels remote control
- Balanced XLR and 1/4-inch TRS audio outputs
- 1U half-rack design with included rackmount hardware
Why We Like This
The ULXD4-X52 provides professional ULX-D wireless performance with secure encryption, network management, and dependable digital audio quality for demanding installations and productions.
FAQs
Q: Does the Shure ULXD4-X52 include a transmitter?
A: No. This package includes the receiver only and requires a compatible ULX-D transmitter.
Q: What frequency range does the ULXD4-X52 operate on?
A: The X52 frequency band operates from 902 to 928 MHz.
Q: Is the ULXD4-X52 rack mountable?
A: Yes. It supports 1U half-rack mounting with included rackmount hardware.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Brand: |
Shure |
Manufacturer: |
Shure |
Model: |
ULXD4-X52 |
Product Type: |
Single-Channel Digital Wireless Receiver |
Wireless Technology: |
Digital UHF |
RF Frequency Band: |
X52: 902 to 928 MHz |
Receiver Type: |
1x Tabletop |
Number of Audio Channels: |
1 |
Included Transmitters: |
No Transmitters Included |
Microphone Type: |
No Microphone Included |
Diversity: |
Yes |
Number of RF Channel Frequencies: |
1040 |
Max Transmitters per Band: |
12 |
Latency: |
< 2.9 ms |
Encryption: |
AES 256 |
Mobile App Compatible: |
Yes: Android & iOS, ShurePlus Channels Remote Control |
Mounting Options: |
Rackmount with Included Hardware, 1U Half-Rack |
Antenna: |
2x Removable BNC 1/2 Wave External Rear-Mount |

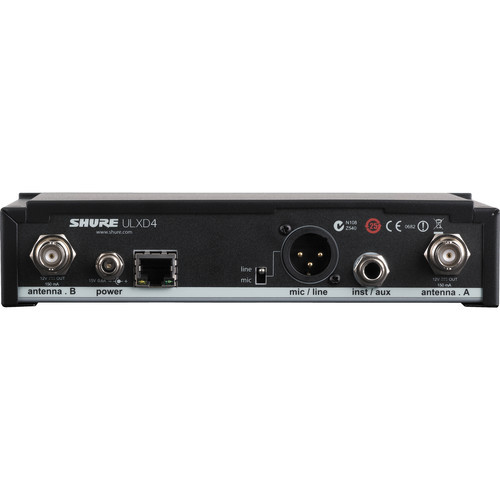

Audio I/O: |
1x XLR 3-Pin Balanced Output, 1x 1/4-inch TRS Balanced Output |
Network I/O: |
1x RJ45 Ethernet |
Gain Range: |
-18 to +42 dB (1 dB Steps) |
Frequency Response: |
30 Hz to 20 kHz ±1 dB (Dependent on Mic) |
Display: |
Backlit LCD |
Power Requirements: |
15 VDC at 600 mA AC/DC Adapter Included |
Input Power: |
100 to 240 VAC 50/60 Hz |
Housing: |
Steel |
Dimensions: |
7.8 x 6.7 x 1.7 inches / 197 x 171 x 171 mm |
Shipping Length: |
18.2 inches |
Shipping Width: |
14.6 inches |
Shipping Height: |
3.6 inches |
