Description

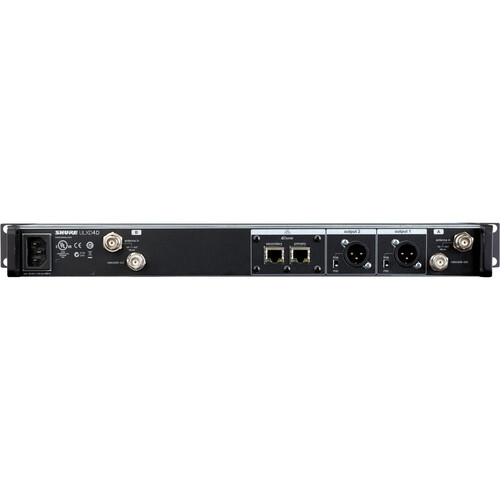

The Shure ULXD4D-G57 Dual-Channel Digital Wireless Receiver delivers professional ULX-D digital wireless performance for large venues, A/V installations, and live sound applications. Featuring two digital audio channels, secure AES 256-bit encryption, Dante networking, and wide tuning capability, it provides advanced wireless management in a 1U rackmount design.
Features
- Dual-channel digital wireless receiver for Shure ULX-D systems
- G57 frequency band covering 470 to 608 MHz
- Two digital audio channels in a 1U rackmount chassis
- AES 256-bit encryption for secure wireless transmission
- Dante networking with dual RJ45 network ports
- RF cascade ports for expanded wireless setups
- Supports up to 60 compatible systems per band
- Backlit LCD display for easy system control
Why We Like This
The ULXD4D-G57 combines two channels of Shure ULX-D wireless performance with Dante networking, secure encryption, and professional rackmount features for demanding productions and installations.
FAQs
Q: How many channels does the Shure ULXD4D-G57 provide?
A: It provides two digital wireless audio channels in a single rackmount receiver.
Q: What frequency range does the ULXD4D-G57 operate on?
A: The G57 band operates from 470 to 608 MHz.
Q: Does the ULXD4D-G57 support Dante networking?
A: Yes. It includes dual RJ45 network connections with Dante support.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Brand: |
Shure |
Manufacturer: |
Shure |
Model: |
ULXD4D-G57 |
Product Type: |
Dual-Channel Digital Wireless Receiver |
Wireless Technology: |
Digital UHF |
RF Frequency Band: |
G57: 470 to 608 MHz |
Receiver Type: |
1x Rackmount (19-inch) |
Number of Audio Channels: |
2 |
Included Transmitters: |
No Transmitters Included |
Microphone Type: |
No Microphone Included |
Diversity: |
Yes |
Number of RF Channel Frequencies: |
5520 |
Max Transmitters per Band: |
60 |
Dynamic Range: |
>120 dB |
Latency: |
< 2.9 ms |
Encryption: |
AES 256 |
Mobile App Compatible: |
Yes: Android & iOS, ShurePlus Channels |
Mounting Options: |
Rackmount with Included Hardware, 1U |
Antenna: |
2x Removable BNC 1/2 Wave External Rear-Mount |
Audio I/O: |
2x XLR 3-Pin Balanced Output |
Network I/O: |
2x RJ45 Dante Ethernet |
Gain Range: |
-18 to +42 dB (1 dB Steps) |
Frequency Response: |
30 Hz to 20 kHz ±1 dB |
Display: |
Backlit LCD |
Power Requirements: |
AC Input |
Input Power: |
100 to 240 VAC 50/60 Hz at 0.32 A |
Housing: |
Aluminum, Steel |
Dimensions: |
19 x 10.8 x 1.7 inches / 482 x 274 x 44 mm |
Shipping Length: |
23 inches |
Shipping Width: |
17.7 inches |
Shipping Height: |
3 inches |
