Description

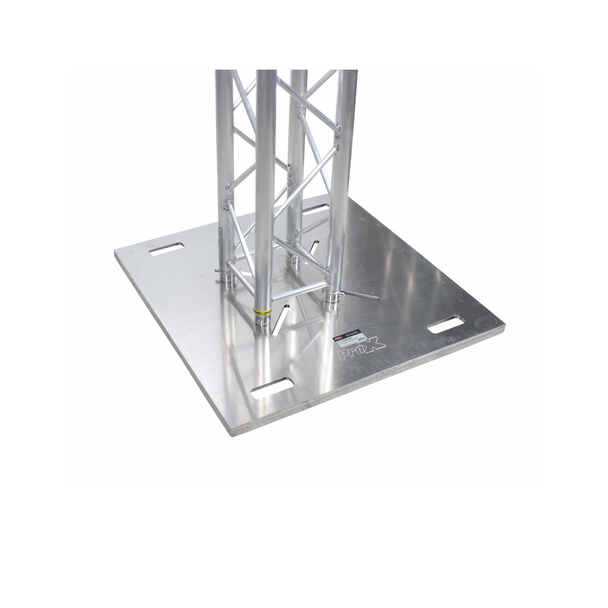

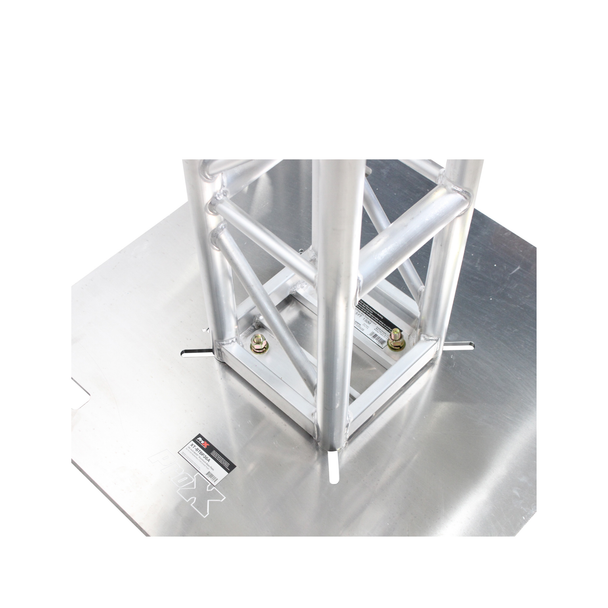

The ProX XT-BTBP36A BoltX™ Base Plate is a 30-inch aluminum base designed to support vertical truss installations using standard 12" or 16" bolted box truss systems. It is also drilled to fit F34 trussing, allowing flexible compatibility across different truss configurations.
This base plate is commonly used in stage lighting structures, concerts, production rigs, and similar event setups that require a stable foundation for truss towers.
Features
- Mates to 12x12” / 16x16" / F34 Professional Box Truss.
- Also Drilled to Fit F34 Trussing (Conical Connectors Included)
- Industry Standard Bolt Pattern 6 3/4" x 6 3/4" with 5/8" Holes
- Four Convenient Hand Holes for Lifting
- Slotted and Drilled for Easy Mounting
- Load Tested & Inspected During Manufacturing and Quality Control

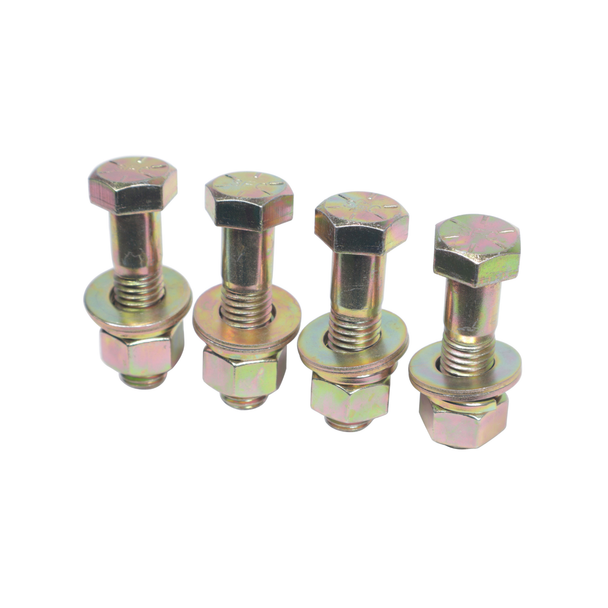

- Includes one set of Four 5/8" - 11 x 2.5" (NC) attachment bolts, nuts, flat & lock washers.
- Compatible with most other 12″ Professional Box Truss Manufacturers

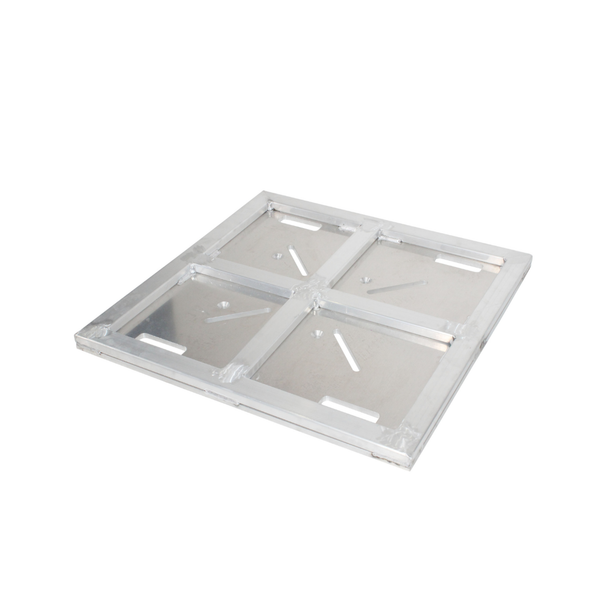

- Aluminum 1/2" Plate welded to 1" x 1.5" Solid Aluminum Extrusions for ultimate strength
- Welded to TÜV standards, 6082-T6 Alloy by GSI SLV-certified welders
- Finish: Natural aluminum
Exterior Dimensions & Weight
2.00"H x 35.00"W x 35.00"L - Weight: 68.00 lbs
Shipping Dimensions & Weight
Box 1 of 1: 3.00"H x 37.00"W x 37.00"L - Shipping Weight: 70.00 lbs
Why We Like This
The XT-BTBP36A base plate supports several common truss formats, including BoltX™ and F34 systems. Its slotted mounting design, integrated hand holes, and aluminum construction make it a practical foundation for ground-supported truss towers and event rigging structures.
FAQs
Q: What truss sizes are compatible with this base plate?
The base plate supports 12" x 12", 16" x 16", and F34 box truss systems.
Q: Does the base plate include mounting hardware?
Yes. It includes one set of four 5/8"-11 x 2.5" bolts with nuts, flat washers, and lock washers, along with conical connectors for F34 truss.
Q: Does the plate have lifting handles?
Yes. The base plate includes four hand holes to make lifting and positioning easier during setup.
