Description

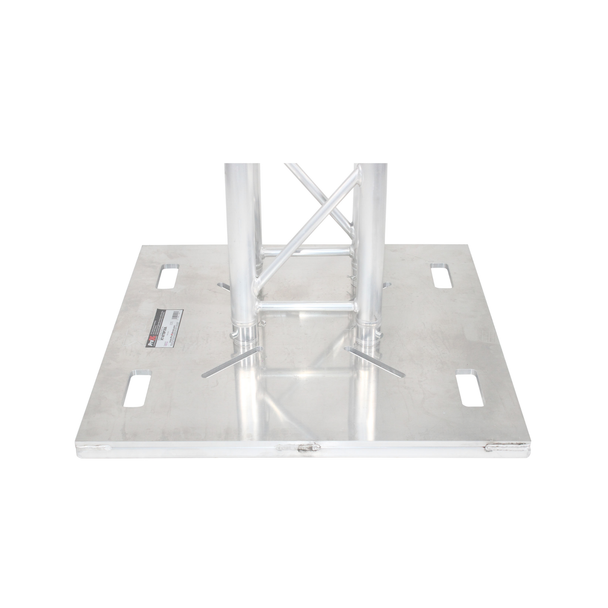

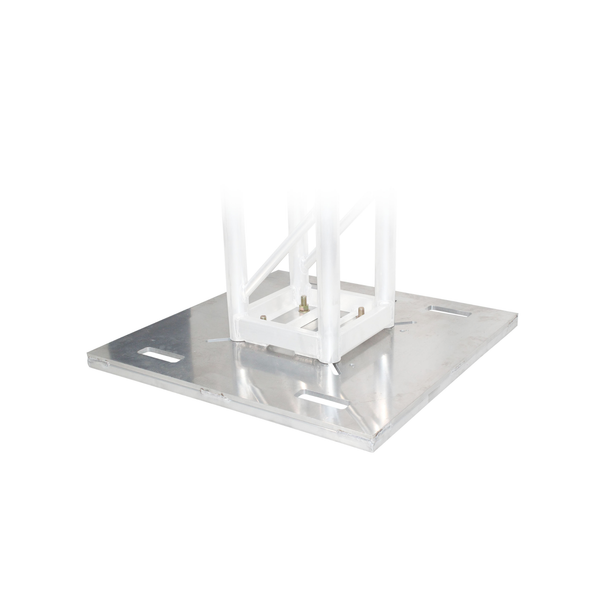

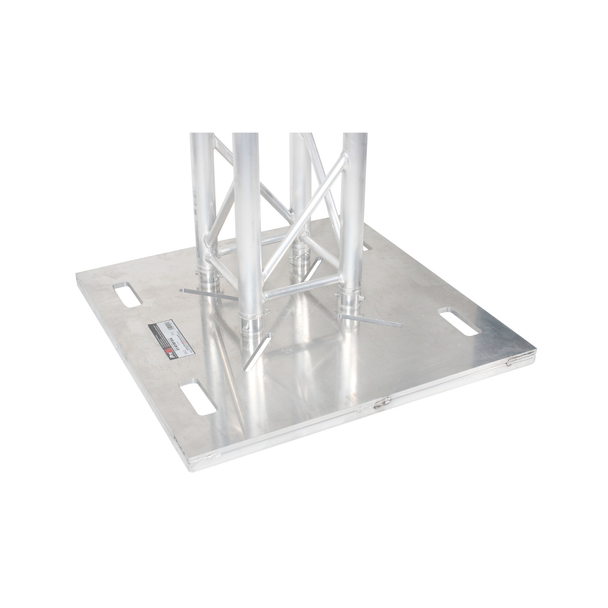

The ProX XT-BTBP24A BoltX™ Base Plate is a 24-inch aluminum base designed to support vertical installations of 12" bolted box truss systems. It provides a stable foundation for truss structures used in stage lighting setups, concerts, and production environments.
The plate is designed to mate with BoltX™ truss segments and other compatible 12" truss systems using the industry-standard bolt pattern.
Features
- Mates to 12″ H x 12” W Professional Box Truss w/Bolt Connection.

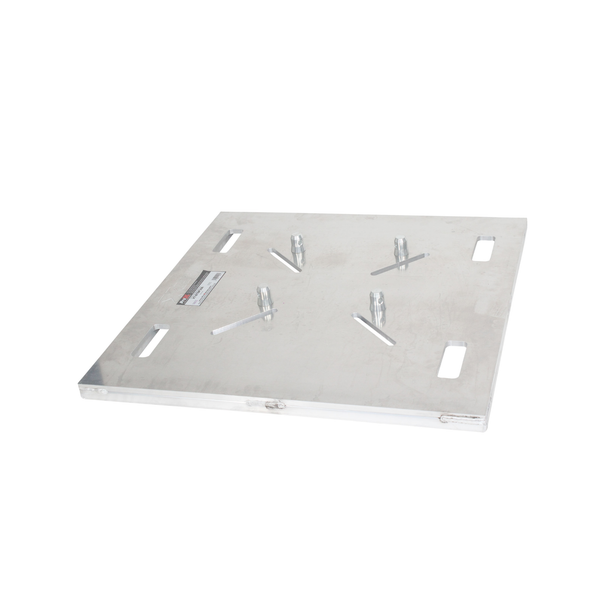

- Also Drilled to Fit F34 Trussing (Conical Connectors Not Included)
- Industry Standard Bolt Pattern 6 3/4" x 6 3/4" with 5/8" Holes
- Four Convenient Hand Holes for Lifting

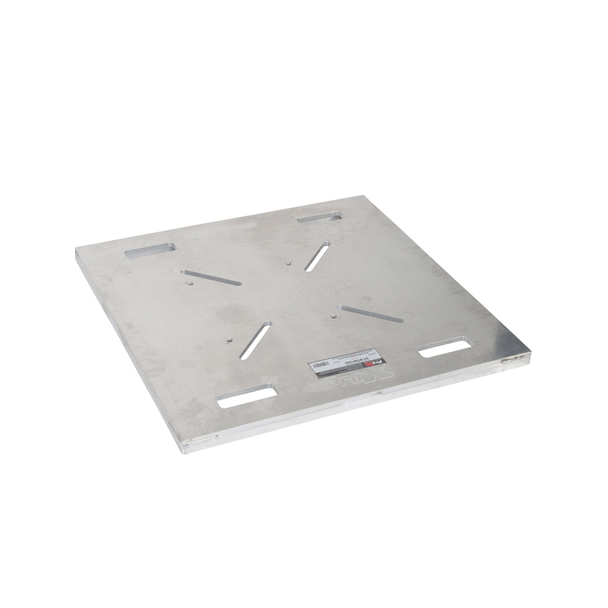

- Slotted and Drilled for Easy Mounting
- Load Tested & Inspected During Manufacturing and Quality Control
- Includes one set of Four 5/8" - 11 x 2.5" (NC) attachment bolts, nuts, flat & lock washers.
- Compatible with most other 12″ Professional Box Truss Manufacturers

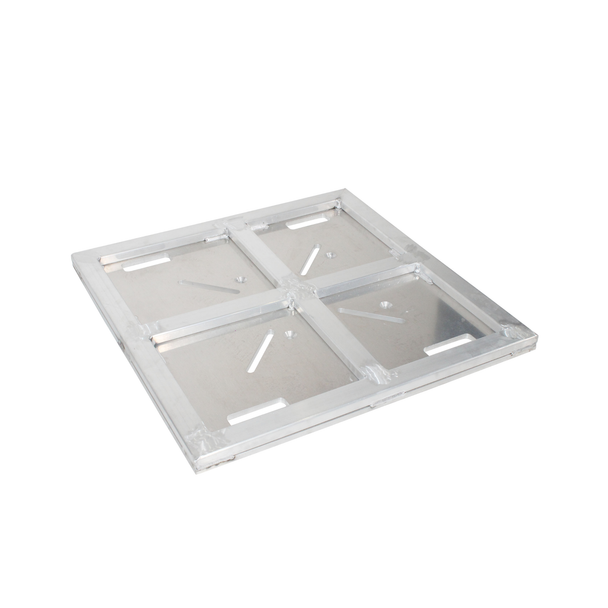

- Aluminum 1/2" Plate welded to 1" x 1.5" Solid Aluminum Extrusions for ultimate strength
- Welded to TÜV standards, 6082-T6 Alloy by GSI SLV-certified welders
- Finish: Natural Aluminum
Exterior Dimensions & Weight
3.00"H x 25.00"W x 26.00"L - Weight: 40.00 lbs
Shipping Dimensions & Weight
Box 1 of 1: 3.00"H x 26.00"W x 26.00"L - Shipping Weight: 42.00 lbs
Why We Like This
The XT-BTBP24A base plate offers a compact foundation option for 12" box truss towers. Its mounting flexibility, integrated hand holes, and compatibility with standard bolt-pattern truss systems make it practical for staging and lighting structures.
FAQs
Q: What truss systems are compatible with this base plate?
It is designed for 12" H x 12" W bolted box truss systems and is also drilled to fit F34 trussing.
Q: Are conical connectors included for F34 truss?
No. The plate is drilled for F34 truss but conical connectors are not included.
Q: Does the base plate include mounting hardware?
Yes. One set of four 5/8"-11 x 2.5" attachment bolts, nuts, flat washers, and lock washers is included.
Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and creators every day. We provide dependable staging and production equipment for live events and installations.
Tech Specs
Exterior Dimensions & Weight: |
3.00"H x 25.00"W x 26.00"L - Weight: 40.00 lbs |
Shipping Dimensions & Weight: |
Box 1 of 1: 3.00"H x 26.00"W x 26.00"L - Shipping Weight: 42.00 lbs |
