Description

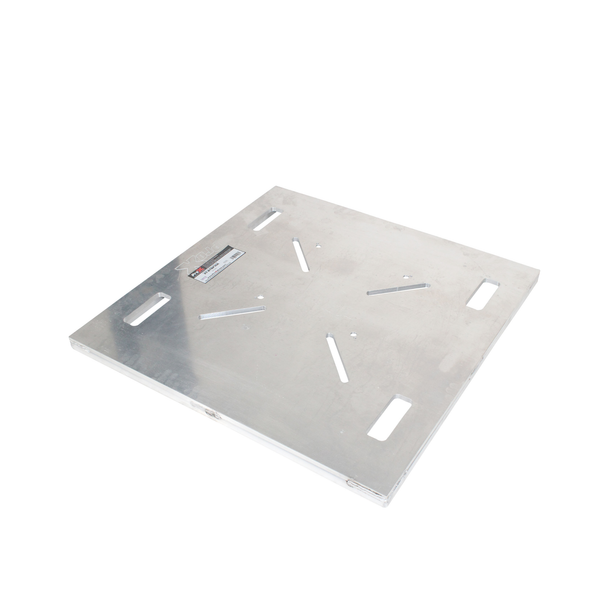

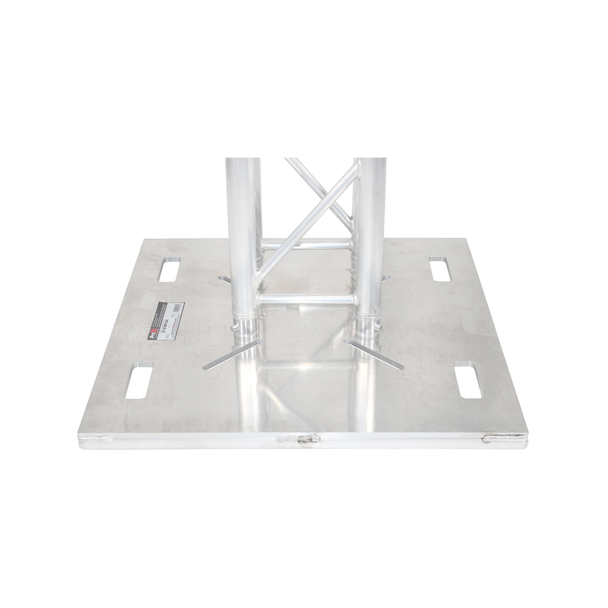

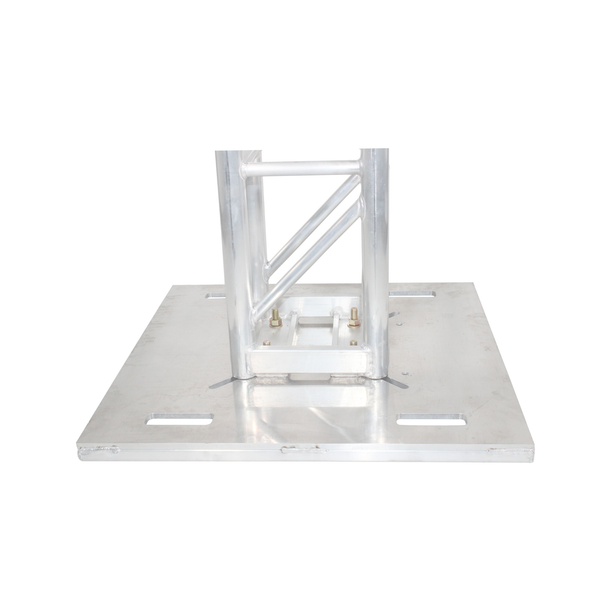

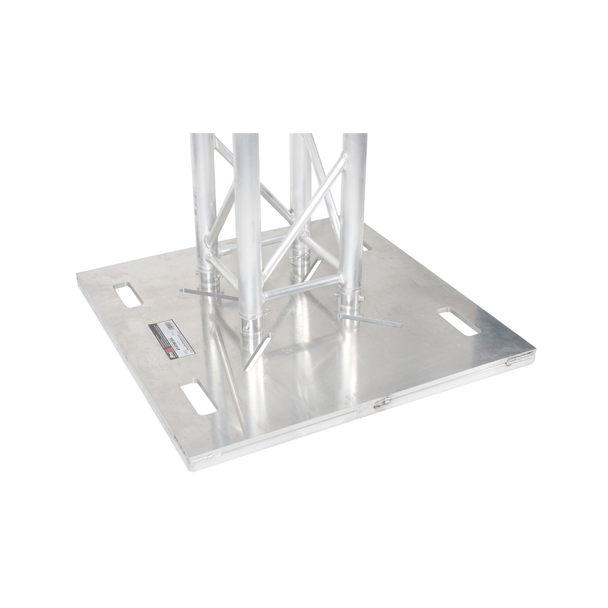

The ProX XT-BTBP30A BoltX™ Base Plate is a 30-inch aluminum base designed to support vertical truss installations using standard 12" and 16" bolted box truss systems. It is also drilled to fit F34 trussing, providing compatibility across multiple truss formats.
This base plate is used in stage lighting setups, concert structures, production rigs, and other truss-based installations that require a stable ground foundation.
Features
- Mates to 12x12” / 16x16" / F34 Professional Box Truss.

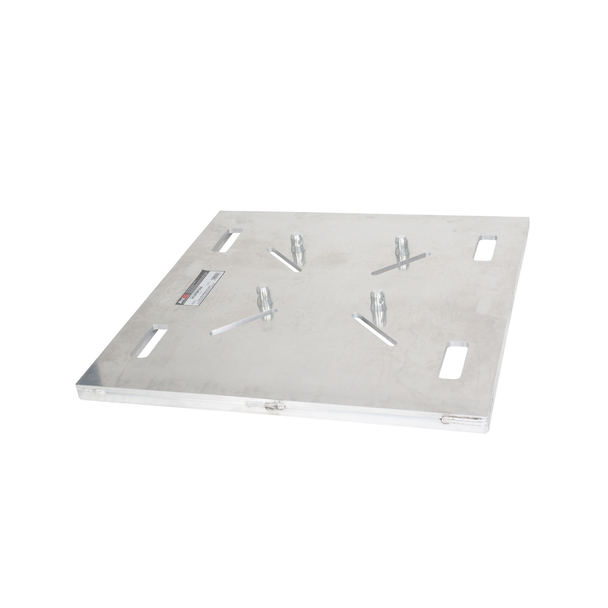

- Also Drilled to Fit F34 Trussing (Conical Connectors Included)
- Industry Standard Bolt Pattern 6 3/4" x 6 3/4" with 5/8" Holes
- Four Convenient Hand Holes for Lifting

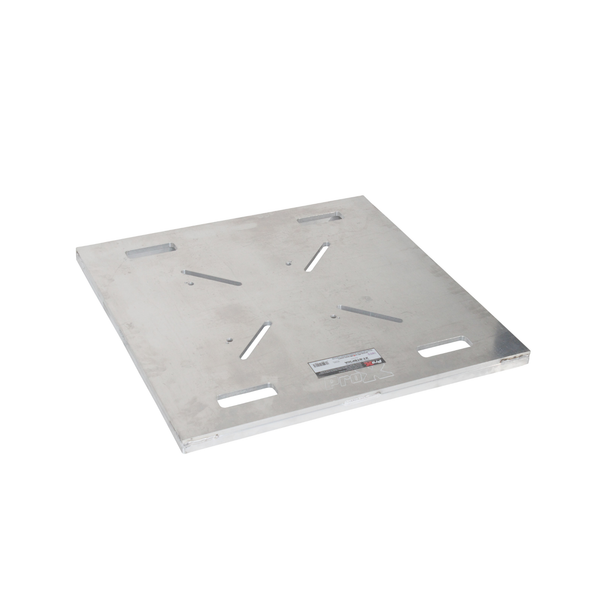

- Slotted and Drilled for Easy Mounting
- Load Tested & Inspected During Manufacturing and Quality Control
- Includes one set of Four 5/8" - 11 x 2.5" (NC) attachment bolts, nuts, flat & lock washers.
- Compatible with most other 12″ Professional Box Truss Manufacturers

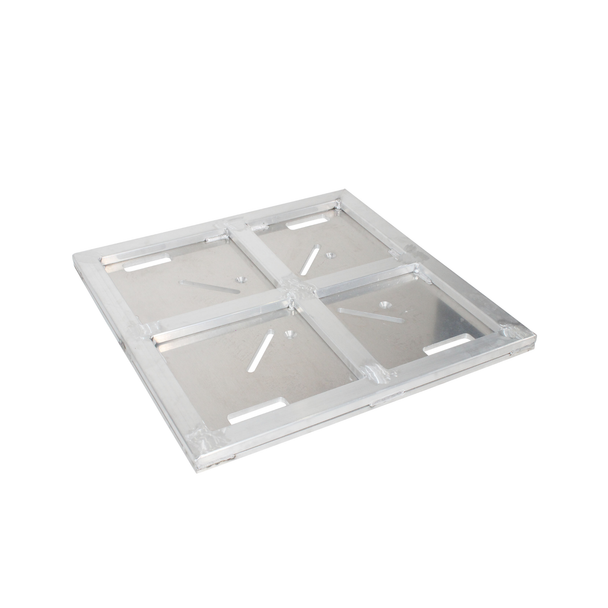

- Aluminum 1/2" Plate welded to 1" x 1.5" Solid Aluminum Extrusions for ultimate strength
- Welded to TÜV standards, 6082-T6 Alloy by GSI SLV-certified welders
- Finish: Natural aluminum
Exterior Dimensions & Weight
1.50"H x 30.00"W x 30.00"L - Weight: 52.00 lbs
Shipping Dimensions & Weight
Box 1 of 1: 3.00"H x 31.00"W x 31.00"L - Shipping Weight: 59.00 lbs
Why We Like This
This base plate supports multiple truss formats, including BoltX™ and F34 systems. The slotted mounting design and integrated hand holes help simplify setup, while the aluminum construction is designed for structural truss applications.
FAQs
Q: What truss systems can this base plate support?
It is designed for 12" x 12", 16" x 16", and F34 box truss systems.
Q: Does the base plate include mounting hardware?
Yes. It includes four 5/8"-11 x 2.5" bolts with nuts, flat washers, and lock washers, along with conical connectors for F34 truss.
Q: Does the base plate have handles for lifting?
Yes. The plate includes four hand holes to assist with lifting and positioning during setup.
Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and creators every day. We help provide dependable staging and production equipment for live events and installations.
Tech Specs
Exterior Dimensions & Weight: |
1.50"H x 30.00"W x 30.00"L - Weight: 52.00 lbs |
Shipping Dimensions & Weight: |
Box 1 of 1: 3.00"H x 31.00"W x 31.00"L - Shipping Weight: 59.00 lbs |
