Description

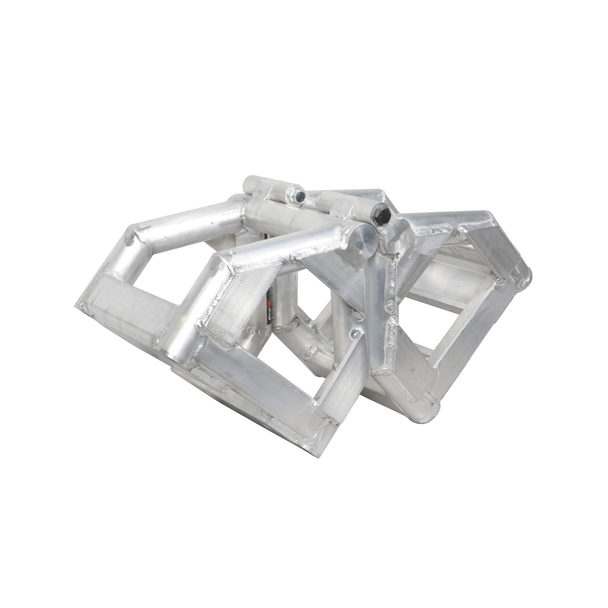

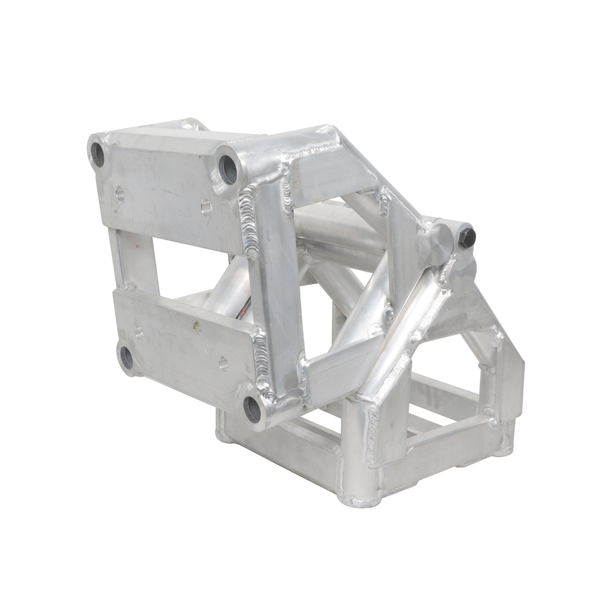

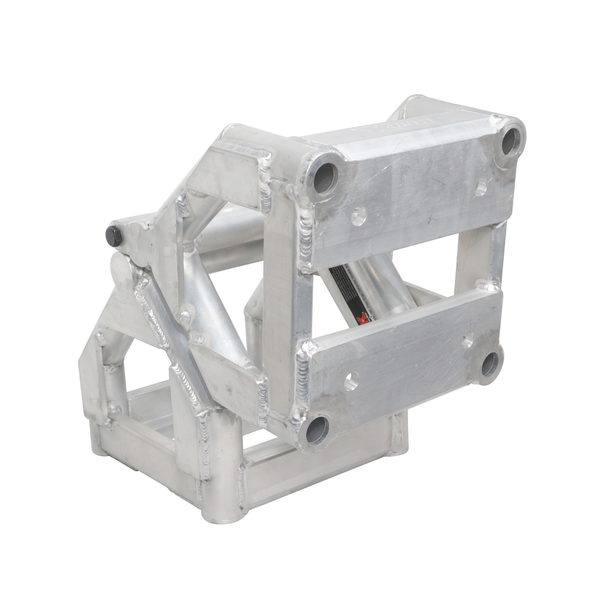

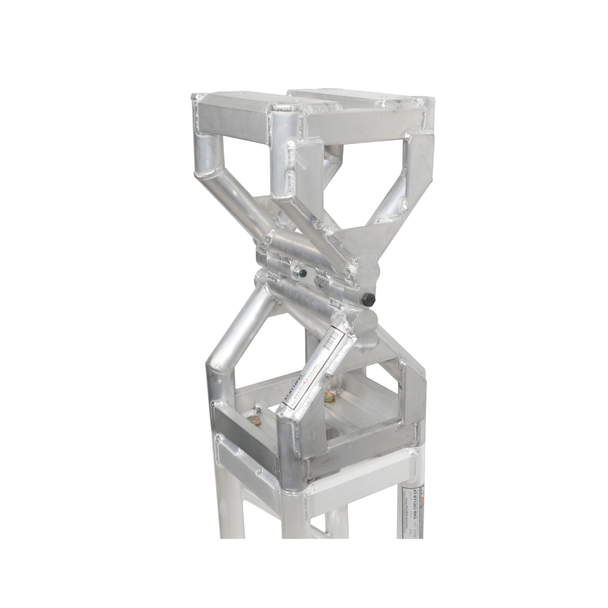

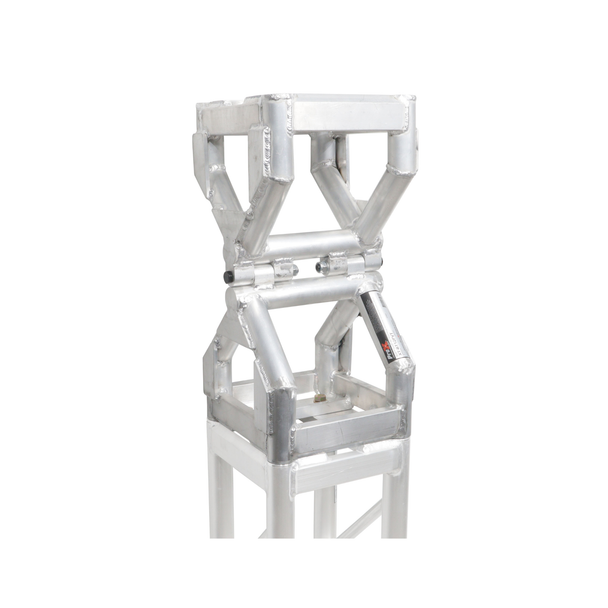

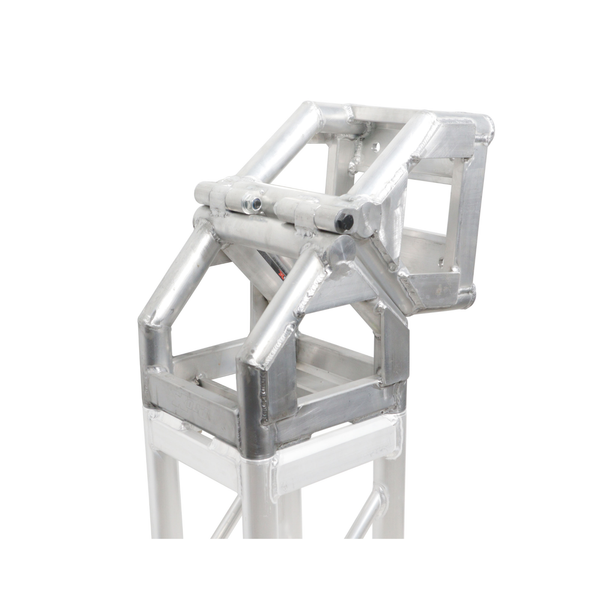

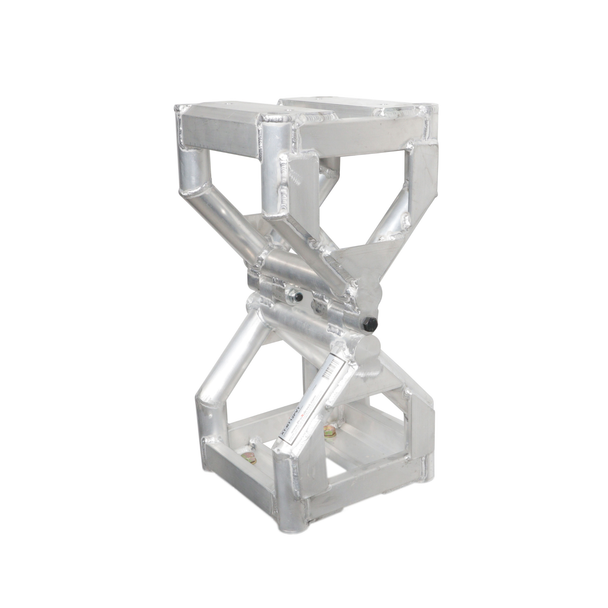

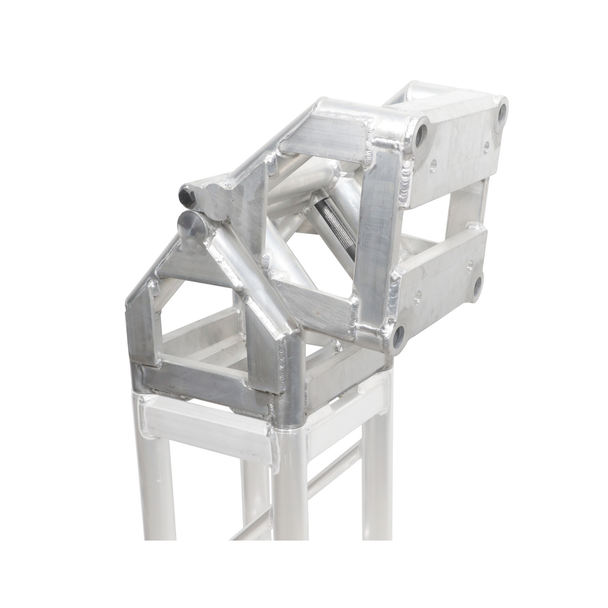

The ProX XT-BT12PVT Center Pivot Hinge Articulating Block is a variable-angle truss connector designed for 12" BoltX™ bolted truss systems. It allows adjustable truss angles from 0° to 180°, enabling flexible truss configurations for lighting and staging structures. This component is designed for mobile production setups, live events, and permanent installations.
Features
- 12″ H x 12” W Professional Box Truss W/Bolt Connection.
- Industry Standard Bolt Pattern 6 3/4" x 6 3/4" with 5/8" Holes
- Load Tested & Inspected During Manufacturing and Quality Control
- Includes one set of Four 5/8" - 11 x 2.5" (NC) attachment bolts, nuts, flat & lock washers.
- Compatible with most other 12″ Professional Box Truss Manufacturers
- Outer Tube Diameter of 2″, Wall Thickness 3mm (1/8″), Diagonal 1”, Wall of 3mm (1/8″),
- Welded to TÜV standards, 6082-T6 Alloy by GSI SLV-certified welders
Shipping Dimensions & Weight
Box 1 of 1: 13.00"H x 15.00"W x 26.00"L - Shipping Weight: 32.00 lbs
Why We Like This
The 0°–180° adjustable pivot design allows flexible truss configurations, making it useful for building custom lighting structures or angled truss layouts.
FAQs
Q: What is the adjustment range of this truss hinge block?
A: The pivot hinge allows truss sections to be positioned between 0° and 180°.
Q: Which truss systems is it compatible with?
A: It is designed for ProX 12" BoltX™ truss systems and is compatible with many other 12" professional box truss manufacturers.
Q: What hardware is included with the unit?
A: The package includes four 5/8"-11 x 2.5" bolts, nuts, flat washers, and lock washers for connecting truss segments.
Based in Chicago, IL, Gear Club Direct supports DJs, production crews, and event professionals every day. We provide dependable equipment designed for professional lighting, staging, and event production environments.
Tech Specs
Shipping Dimensions & Weight: |
Box 1 of 1: 13.00"H x 15.00"W x 26.00"L - Shipping Weight: 32.00 lbs |
