Description

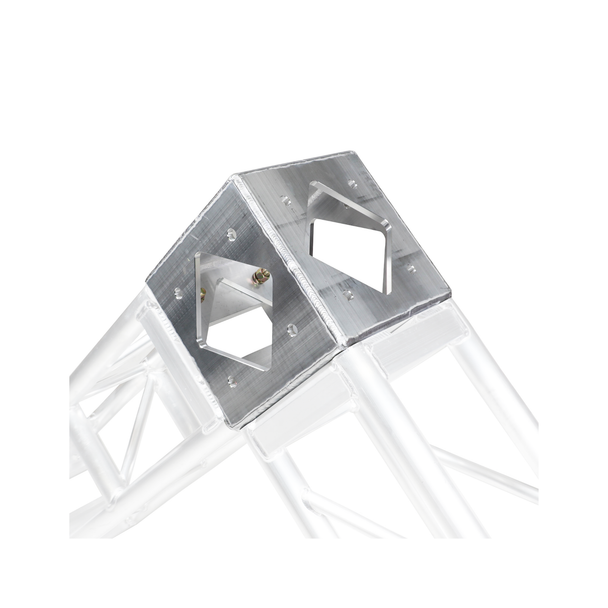

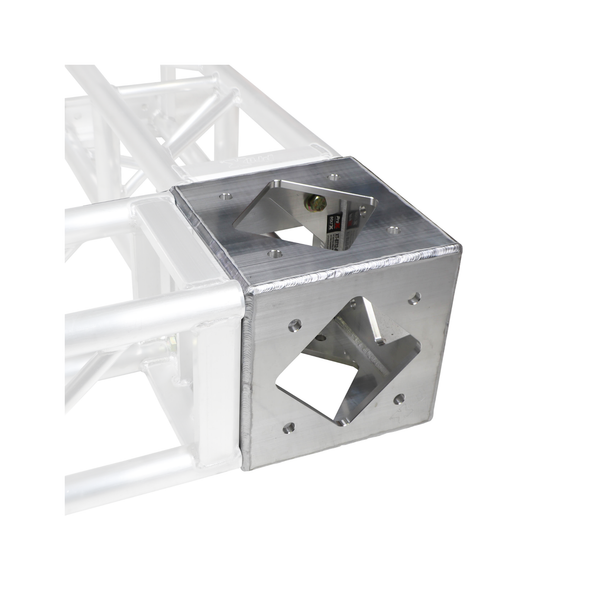

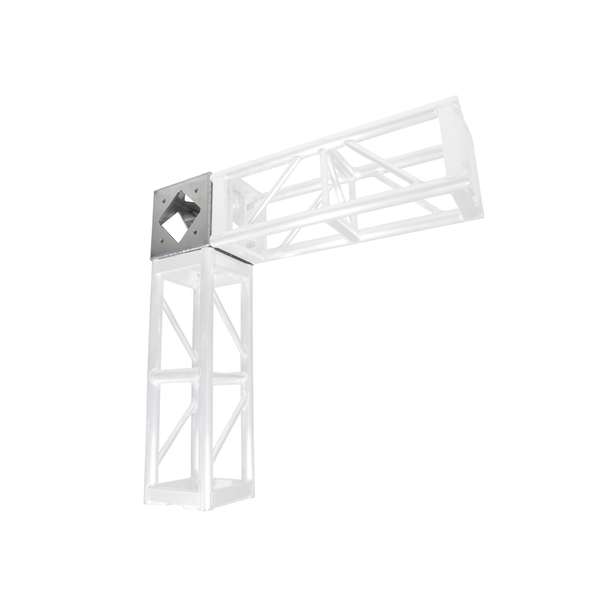

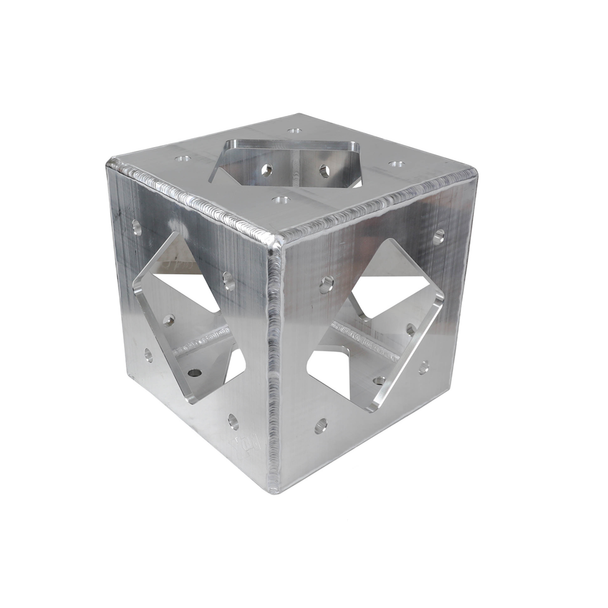

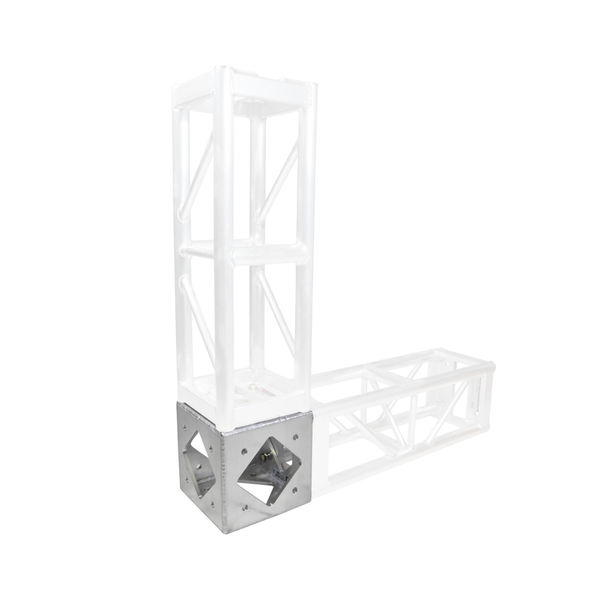

The ProX XT-BT12-6WMK2 BoltX 6-Way Corner Block is a professional 12" box truss junction designed for multi-directional truss configurations. Built from 6082-T6 aluminum with bolted connections, it allows six truss segments to connect at a single point. This component is designed for stage lighting structures, concert production rigs, and similar structural installations.
Features
- Welded Flush Plates
- 12″ x 12” x 12" Professional 6 Way Block W/Bolt Connection.
- Industry Standard Bolt Pattern 6 3/4" x 6 3/4" with 5/8" Holes
- Load Tested & Inspected During Manufacturing and Quality Control
- Includes Four sets of Four 5/8" - 11 x 2.5" (NC) attachment bolts, nuts, flat & lock washers.
- Compatible with most other 12″ Professional Box Truss Manufacturers
- Outer Tube Diameter of 2″, Wall Thickness 3mm (1/8″), Diagonal 1”, Wall of 3mm (1/8″),
- Welded to TÜV standards, 6082-T6 Alloy by GSI SLV-certified welders
- Finish: Natural aluminum
Exterior Dimensions & Weight
12.00"H x 12.00"W x 12.00"L - Weight: 29.00 lbs
Shipping Dimensions & Weight
Box 1 of 1: 14.00"H x 14.00"W x 14.00"L - Shipping Weight: 31.00 lbs
Why We Like This
The 6-way connection design allows flexible truss configurations for lighting rigs and structural builds. Compatibility with standard 12" bolt patterns makes it easier to integrate with many existing truss systems.
FAQs
Q: What is the purpose of a 6-way truss block?
A: A 6-way block allows multiple truss segments to connect at a single junction, enabling complex truss structures for lighting rigs or stage installations.
Q: Is this compatible with other 12" box truss brands?
A: Yes. It uses an industry standard 6.75" x 6.75" bolt center pattern, which is common among many 12" truss manufacturers.
Q: What hardware is included?
A: The block includes four sets of 5/8"-11 x 2.5" bolts, nuts, flat washers, and lock washers (16 total bolts and hardware).
Based in Chicago, IL, Gear Club Direct supports DJs, production crews, and event professionals every day. We provide reliable equipment designed for professional lighting, staging, and event production environments.
Tech Specs
Exterior Dimensions & Weight: |
12.00"H x 12.00"W x 12.00"L - Weight: 29.00 lbs |
Shipping Dimensions & Weight: |
Box 1 of 1: 14.00"H x 14.00"W x 14.00"L - Shipping Weight: 31.00 lbs |
