Description

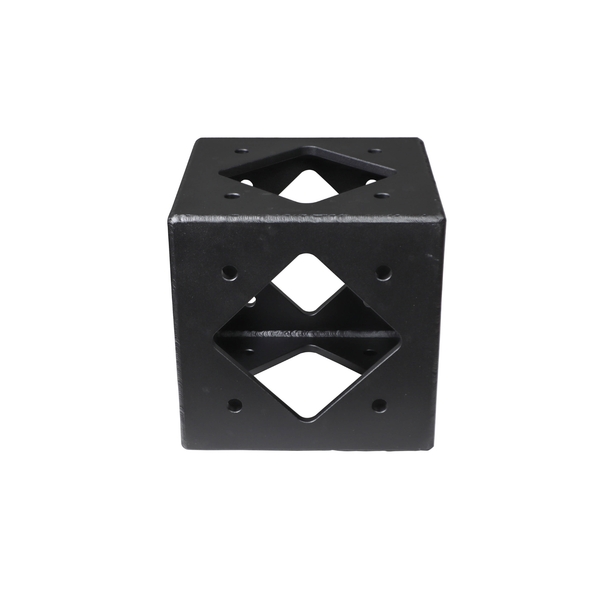

The ProX XT-BT12-6WBLKMK2 BoltX™ 6-Way Corner Block is a professional 12" box truss connector designed to join multiple truss segments in complex structural configurations. Built from aluminum and engineered with a standard 6.75" bolt pattern, it integrates with many 12" professional box truss systems.
This component is commonly used in stage lighting rigs, concert production structures, and similar truss builds.
Features
- Welded Flush Plates
- Black Powder Coated
- 12″ x 12” x 12" Professional 6 Way Block W/Bolt Connection.
- Industry Standard Bolt Pattern 6 3/4" x 6 3/4" with 5/8" Holes
- Load Tested & Inspected During Manufacturing and Quality Control

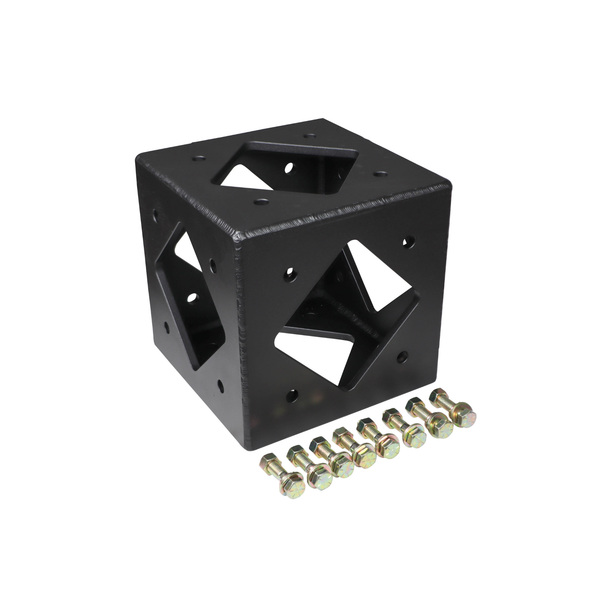

- Includes Four sets of Four 5/8" - 11 x 2.5" (NC) attachment bolts, nuts, flat & lock washers.
- Compatible with most other 12″ Professional Box Truss Manufacturers
- Outer Tube Diameter of 2″, Wall Thickness 3mm (1/8″), Diagonal 1”, Wall of 3mm (1/8″),
- Welded to TÜV standards, 6082-T6 Alloy by GSI SLV-certified welders
- Finish: Natural aluminum
Exterior Dimensions & Weight
12.00"H x 12.00"W x 12.00"L - Weight: 29.00 lbs
Shipping Dimensions & Weight
Box 1 of 1: 14.00"H x 14.00"W x 14.00"L - Shipping Weight: 31.00 lbs
Why We Like This

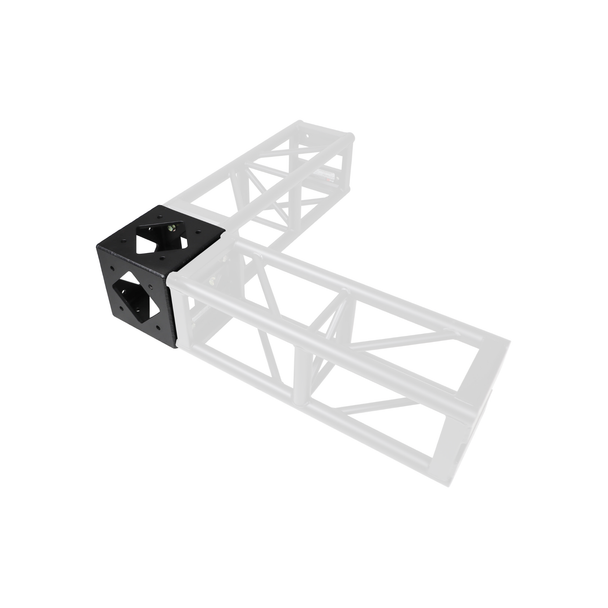

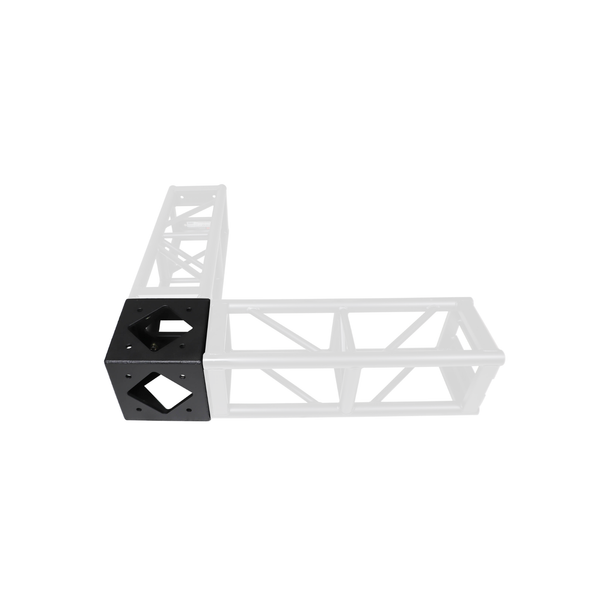

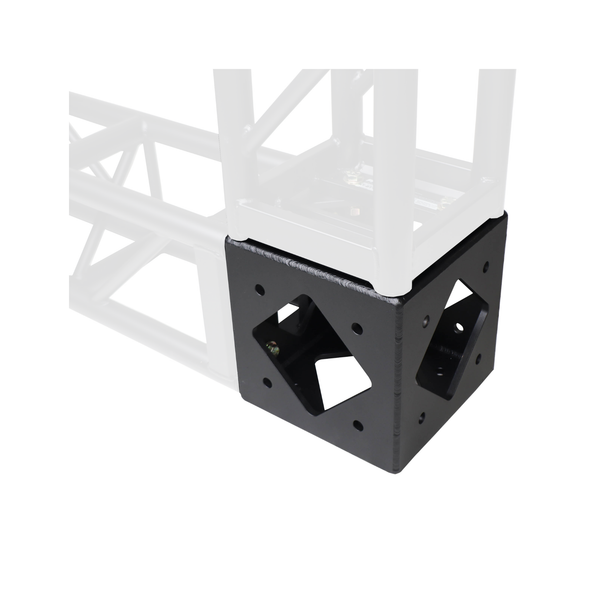

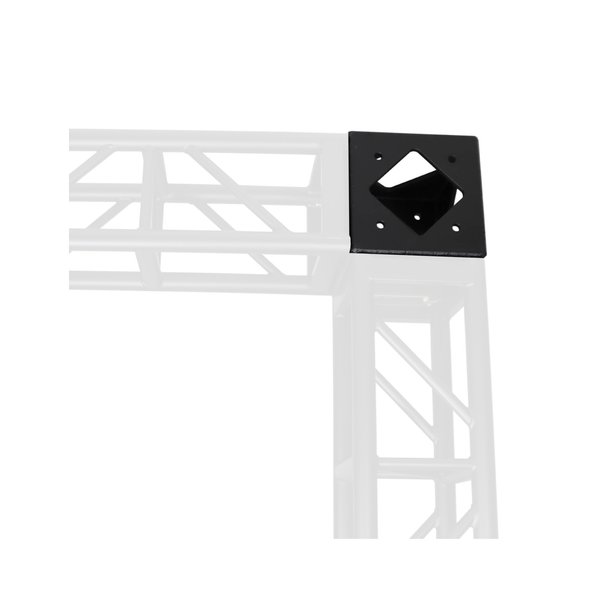

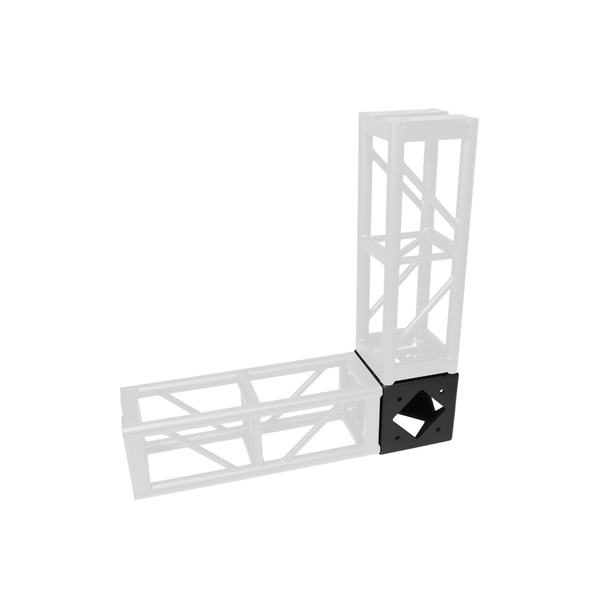

This 6-way BoltX™ corner block allows truss structures to expand in multiple directions from a single connection point. Its compatibility with standard 12" bolt-pattern truss systems and included connection hardware make it useful for modular truss builds in event and production environments.
FAQs
Q: What is a 6-way truss corner block used for?
It connects multiple truss segments at one junction point, allowing structures to extend in several directions within a truss system.
Q: Is this compatible with other 12" truss brands?
Yes. It uses the industry-standard 6.75" bolt center pattern used by many 12" professional box truss manufacturers.
Q: What hardware is included with the corner block?
The unit includes four sets of four 5/8"-11 x 2.5" attachment bolts along with nuts, flat washers, and lock washers (16 total bolt sets).
Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and creators every day. We provide reliable gear for staging, lighting, and live production environments.
Tech Specs
Exterior Dimensions & Weight: |
12.00"H x 12.00"W x 12.00"L - Weight: 29.00 lbs |
Shipping Dimensions & Weight: |
Box 1 of 1: 14.00"H x 14.00"W x 14.00"L - Shipping Weight: 31.00 lbs |
