Description

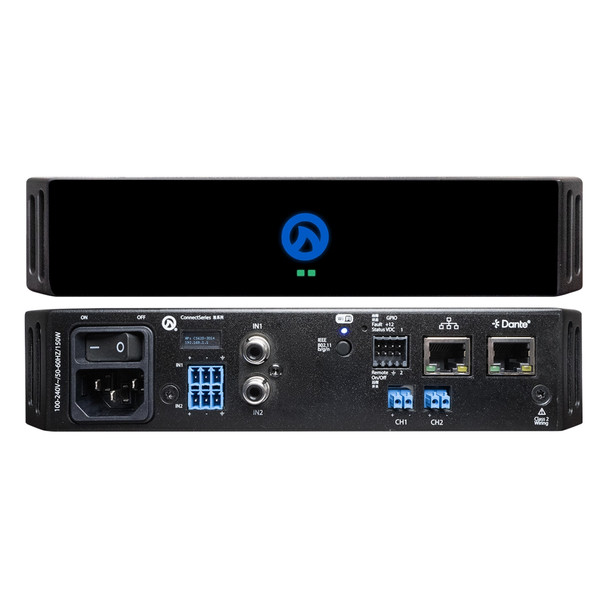

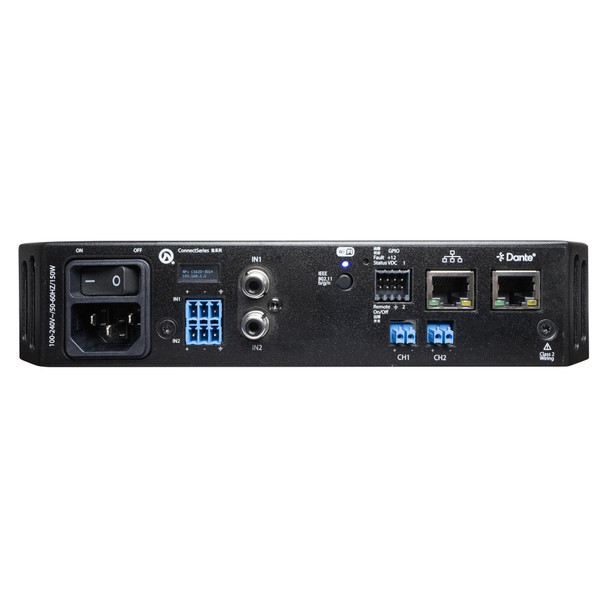

The Connect Series 62D delivers one of the most feature-rich amplifier experiences available in the industry – in a smaller form factor. Featuring 96kHz DSP, WebUI, SharkWare, LEA Cloud, third-party APIs, speaker tunings, and more—this amplifier is the right choice for your next install. The Connect Series Half-Rack is built with fully routable analog inputs, two amplifier channels with Lo-Z, 70V, or 100V selectable by channel and D-units include Dante and AES67 connectivity. All models boast three different ways of network connection: using the built-in Wi-Fi Access Point, connecting to an existing Wi-Fi network, or using a Local Area Network Ethernet connection.
Why We Like This
The 62D combines advanced DSP processing, Dante/AES67 networking, cloud management, and flexible amplifier configuration in a compact half-rack format ideal for modern installed audio systems.
FAQs
Q: What is the difference between the CS62 and the 62D?
The 62D includes integrated Dante and AES67 network audio connectivity in addition to the DSP and management features found in the standard CS62.
Q: Does the amplifier support 70V and 100V loudspeaker systems?
Yes. Each channel can be independently configured for Lo-Z, 70V, or 100V operation.
Q: Can the amplifier be monitored remotely?
Yes. The amplifier supports LEA Cloud, SharkWare, WebUI access, and third-party API control.
Based in Chicago, IL, Gear Club Direct supports commercial integrators, consultants, and audio professionals with advanced amplifier and networked audio solutions for installed sound applications.
Tech Specs
INPUTS: |
Analog: 2 Balanced Inputs with user selectable 26dB, 34dB, and mic level input sensitivity 2 unbalanced RCA inputs with user-selectable 26dB and 34dB input sensitivity ***Note – Unbalanced and RCA inputs share the same analog input channel Dante: 2 |
THD+N: |
0.1% (20Hz to 20kHz) |
FREQUENCY RESPONSE: |
20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω |
SIGNAL TO NOISE LEVEL: |
102dB (20Hz to 20kHz referenced to 8Ω) |
CROSSTALK: |
70dB (20Hz to 20kHz) |
AMPLIFIER OUTPUT CLASSIFICATION: |
Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel |
DSP ARCHITECTURE: |
Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters |
INPUT MATRIX & MATRIX MIXER: |
Routable matrix; any input can be mixed to any output |
CROSSOVERS: |
Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth) |
PARAMETRIC EQ: |
8 Band Parametric EQ per channel |
OUTPUT DELAY: |
100ms per channel |
OUTPUT PROTECTION: |
DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection |
USER ADJUSTABLE LIMITING: |
Peak Voltage and RMS Voltage |
AC MAINS: |
100VAC – 240VAC +/- 15% 50Hz or 60Hz |
DIMENSIONS (L x W x H): |
11.82” x 8.58” x 1.71″ |
