Description

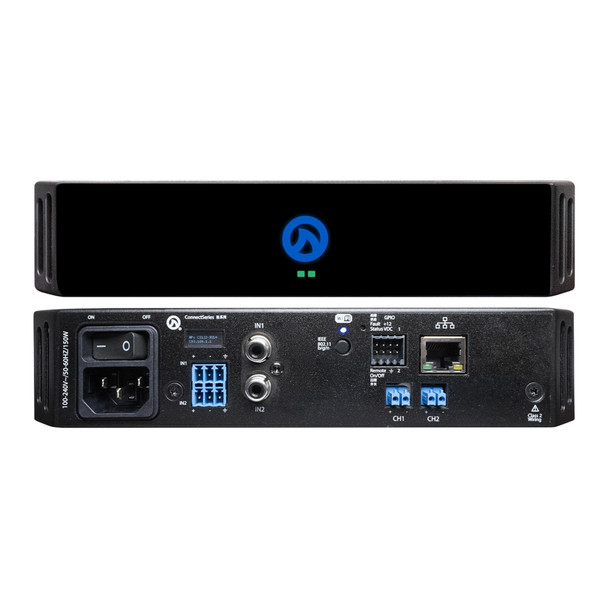

The Connect Series 122 delivers one of the most feature-rich amplifier experiences available in the industry—in a smaller form factor. Featuring 96kHz DSP, WebUI, SharkWare, LEA Cloud, third-party APIs, speaker tunings, and more—this amplifier is the right choice for your next install. The Connect Series Half-Rack is built with fully routable analog inputs, two amplifier channels with Lo-Z, 70V, or 100V selectable by channel. All models boast three different methods of network connection: using the built-in Wi-Fi Access Point, connecting to an existing Wi-Fi network, or using a Local Area Network Ethernet connection.
Why We Like This
The Connect Series 122 combines advanced DSP processing, intelligent monitoring, cloud-based management, and flexible networking in a compact amplifier built for modern installed sound systems.
FAQs
Q: Does the Connect Series 122 support 70V and 100V speaker systems?
Yes. Each amplifier channel can be independently configured for low-impedance, 70V, or 100V operation.
Q: Can the amplifier be monitored remotely?
Yes. The amplifier supports LEA Cloud, SharkWare, WebUI access, and third-party API integration.
Q: What DSP features are included?
The amplifier includes 96kHz DSP processing with matrix routing, parametric EQ, crossovers, delay, limiting, and loudspeaker monitoring.
Based in Chicago, IL, Gear Club Direct supports commercial integrators and audio professionals with intelligent amplifier solutions for installed sound systems.
Tech Specs
INPUTS: |
Analog: 2 Balanced Inputs with user selectable 26dB, 34dB, and mic level input sensitivity 2 unbalanced RCA inputs with user-selectable 26dB and 34dB input sensitivity ***Note – Unbalanced and RCA inputs share the same analog input channel |
THD+N: |
0.1% (20Hz to 20kHz) |
FREQUENCY RESPONSE: |
20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω |
SIGNAL TO NOISE LEVEL: |
102dB (20Hz to 20kHz referenced to 8Ω) |
CROSSTALK: |
70dB (20Hz to 20kHz) |
AMPLIFIER OUTPUT CLASSIFICATION: |
Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel |
DSP ARCHITECTURE: |
Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters |
INPUT MATRIX & MATRIX MIXER: |
Routable matrix; any input can be mixed to any output |
CROSSOVERS: |
Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth) |
PARAMETRIC EQ: |
8 Band Parametric EQ per channel |
OUTPUT DELAY: |
100ms per channel |
OUTPUT PROTECTION: |
DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection |
USER ADJUSTABLE LIMITING: |
Peak Voltage and RMS Voltage |
AC MAINS: |
100VAC – 240VAC +/- 15% 50Hz or 60Hz |
DIMENSIONS (L x W x H): |
11.82” x 8.58” x 1.71″ |
