Description

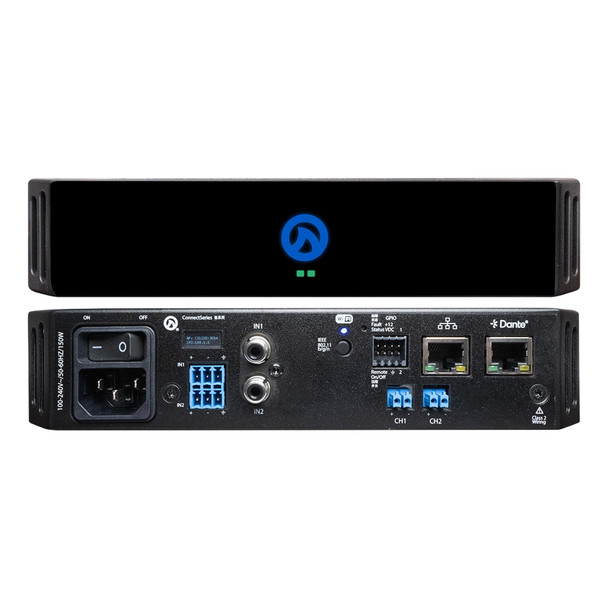

The Connect Series 122D delivers one of the most feature-rich amplifier experiences available in the industry – in a smaller form factor. Featuring 96kHz DSP, WebUI, SharkWare, LEA Cloud, third-party APIs, speaker tunings, and more—this amplifier is the right choice for your next install. The Connect Series Half-Rack is built with fully routable analog inputs, two amplifier channels with Lo-Z, 70V, or 100V selectable by channel and D-units include Dante and AES67 connectivity. All models boast three different methods of network connection: using the built-in Wi-Fi Access Point, connecting to an existing Wi-Fi network, or using a Local Area Network Ethernet connection.
Why We Like This
The 122D combines intelligent DSP processing, Dante/AES67 network audio, cloud management, and flexible loudspeaker support into a compact amplifier designed for modern AV installations.
FAQs
Q: What is the difference between the CS122 and the 122D?
The 122D adds integrated Dante and AES67 network audio connectivity while maintaining the same advanced DSP and management features.
Q: Can the amplifier be used with 70V and 100V speaker systems?
Yes. Each channel can be independently configured for low-impedance, 70V, or 100V operation.
Q: Does the amplifier support remote management?
Yes. The Connect Series 122D supports LEA Cloud, SharkWare, WebUI access, and third-party API integration.
Based in Chicago, IL, Gear Club Direct supports commercial integrators, consultants, and audio professionals with advanced networked amplifier solutions for installed sound applications.
Tech Specs
INPUTS: |
Analog: 2 Balanced Inputs with user selectable 26dB, 34dB, and mic level input sensitivity 2 unbalanced RCA inputs with user-selectable 26dB and 34dB input sensitivity ***Note – Unbalanced and RCA inputs share the same analog input channel Dante: 2 |
THD+N: |
0.1% (20Hz to 20kHz) |
FREQUENCY RESPONSE: |
20Hz to 20kHz, +/- 0.5 dB @ 4Ω, 8Ω, 70V, 100V, -2.5dB @ 20kHz at 2Ω |
SIGNAL TO NOISE LEVEL: |
102dB (20Hz to 20kHz referenced to 8Ω) |
CROSSTALK: |
70dB (20Hz to 20kHz) |
AMPLIFIER OUTPUT CLASSIFICATION: |
Class D with Proprietary Smart Power Bridge Technology allowing bridged output functionality without sacrificing an amplifier channel |
DSP ARCHITECTURE: |
Analog Devices Sigma 96kHz DSP Processor with 32-bit Core with Sample Rate Converters |
INPUT MATRIX & MATRIX MIXER: |
Routable matrix; any input can be mixed to any output |
CROSSOVERS: |
Up to 48 dB/Octave IIR Filters (Linkwitz Riley and Butterworth) |
PARAMETRIC EQ: |
8 Band Parametric EQ per channel |
OUTPUT DELAY: |
100ms per channel |
OUTPUT PROTECTION: |
DC, VHF, and AC Mains Protection, Overtemp and Current Limiter, fan fault detection |
USER ADJUSTABLE LIMITING: |
Peak Voltage and RMS Voltage |
AC MAINS: |
100VAC – 240VAC +/- 15% 50Hz or 60Hz |
DIMENSIONS (L x W x H): |
11.82” x 8.58” x 1.71″ |
