Description

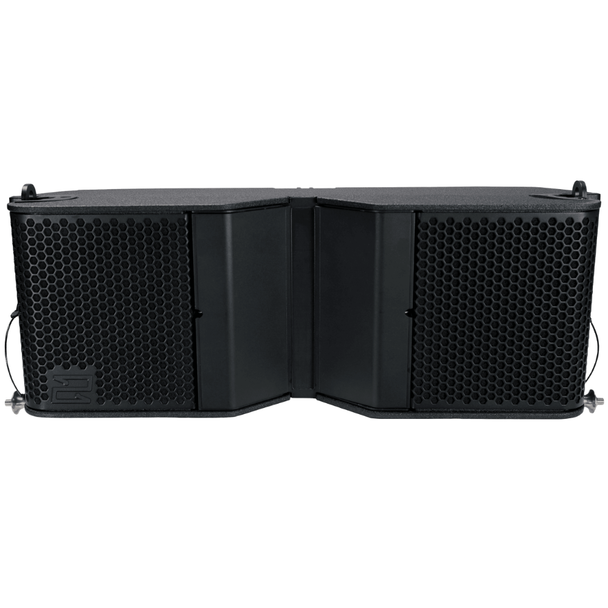

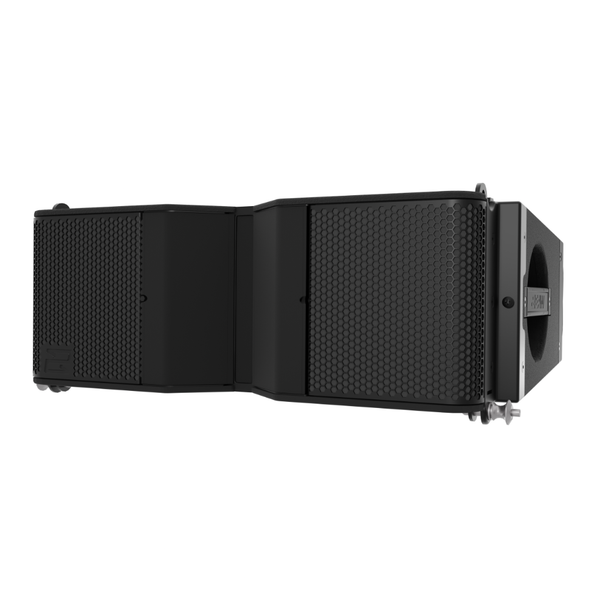

The EAW NT206L is a self-powered line-array loudspeaker within EAW's NT family for scalable professional sound-reinforcement systems. It fits engineered arrays in which coverage, processing, and system deployment are planned together.
Features
- Driver configuration: LF: 2 × 6.5 in cone, 2 in VC, vented; HF: 1 × 1 in exit, 1.75 in VC compression Driver (AHD)
- Operating range: 65 Hz–20 kHz
- Maximum SPL: 137 dB
- Nominal coverage: 80° / 110° / 95° asymmetric H × 10° V
- Integrated amplification: LF: 1000 W; HF: 500 W
- Operating mode: Bi-amp LF/HF
Why We Like This
The NT206L is useful when integrated amplification and processing simplify deployment and reduce dependence on external amplifier channels.
FAQs
Q: Do I need a separate amplifier for the NT206L?
A: No. Amplification is built into the NT206L. Plan for the correct AC power and signal connections before using it.
Q: How do I connect the NT206L to my audio system?
A: The NT206L connects through XLR audio. Check EAW's wiring and pinout information before making cables or terminations.
Q: What do I need to add the NT206L to an array?
A: Plan the array in EAW software and confirm AC power, processing, signal distribution, and approved rigging hardware before deployment.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs

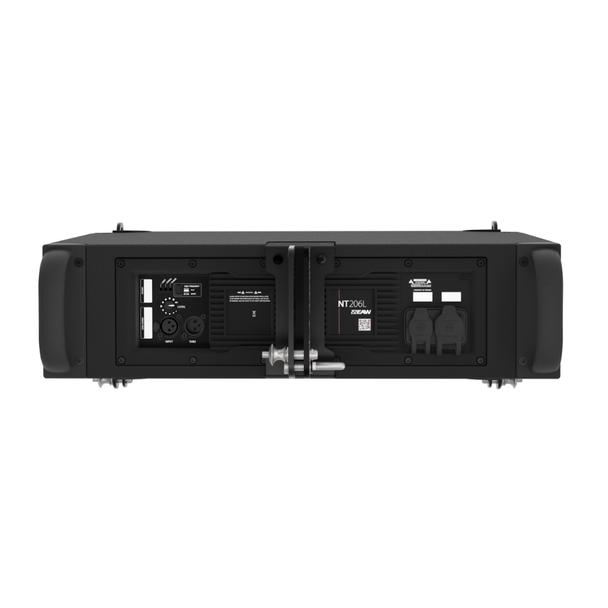

AC Connector: |
Neutrik powerCON TRUE1 TOP |
AC Voltage: |
230 V |
Amplifier Output: |
LF: 1000 W; HF: 500 W |
Amplifier Type: |
Class D |
Audio Connections: |
XLR audio |
Driver Configuration: |
LF: 2 × 6.5 in cone, 2 in VC, vented; HF: 1 × 1 in exit, 1.75 in VC compression Driver (AHD) |
EAW Technologies: |
EAW Focusing, DynO, Isophasic Waveguide, Adjustable Horizontal Directivity (AHD) |
Enclosure Material: |
Birch Wood Cabinet with Road Coat |
Finish: |
Black |
Maximum SPL: |
137 dB |
Nominal Coverage: |
80° / 110° / 95° asymmetric H × 10° V |
Product Height: |
8.4 in |
Product Length: |
14.9 in |
Product Type: |
Powered Line Array Loudspeaker |
Product Width: |
21.0 in |
