Description

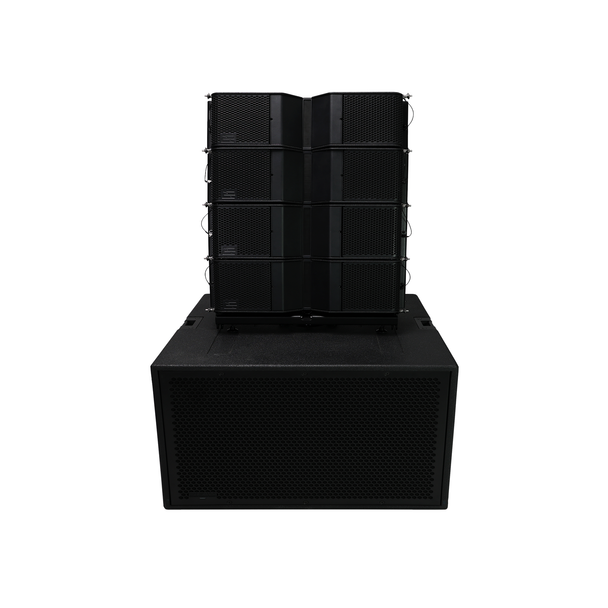

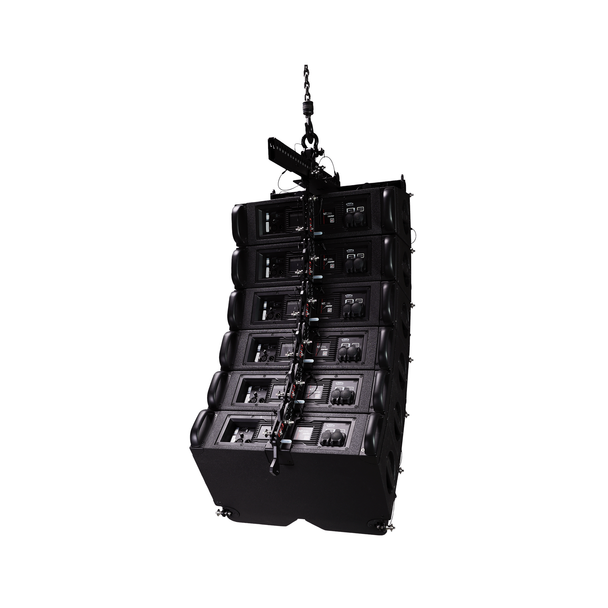

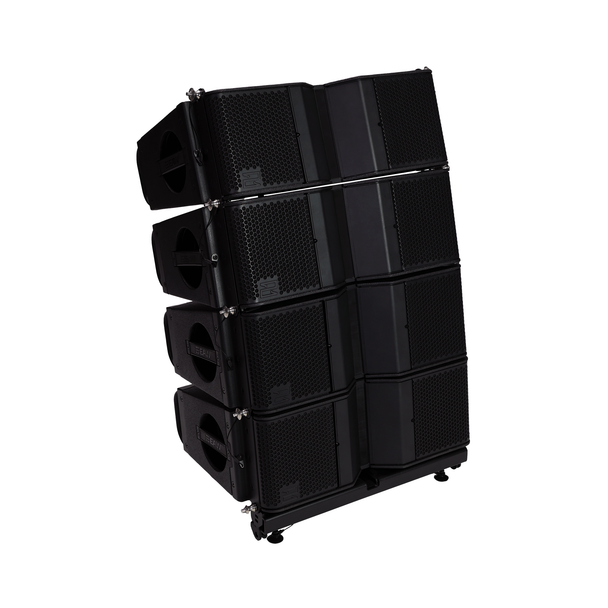

The EAW NT206L is a compact, self-powered two-way line array loudspeaker for touring, production, and installed sound. This black 115V model combines dual 6.5-inch low-frequency drivers, adjustable horizontal directivity, analog audio connectivity, and integrated Class-D amplification.
Features
- Dual 6.5-inch low-frequency drivers with 2-inch voice coils
- 1-inch exit compression driver with 1.75-inch voice coil
- Tool-free 80 degrees, 110 degrees, or asymmetric 95 degrees horizontal coverage
- Integrated 1500W peak Class-D amplification
- 139 dB maximum SPL with 65 Hz to 20 kHz operating range
- Analog XLR input and loop-through connectivity
Why We Like This
Its field-adjustable horn lets crews adapt horizontal coverage without changing enclosures or adding external processing.
FAQs
Q: Is the NT206L a powered loudspeaker?
A: Yes. It includes Class-D amplification rated at 1000W peak for LF and 500W peak for HF.
Q: What horizontal coverage options are available?
A: The AHD horn supports 80 degrees, 110 degrees, or asymmetric 95 degrees coverage aimed left or right.
Q: Does this SKU support Dante audio?
A: No. Official documentation specifies analog XLR input and loop-through for the NT206L.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Product Type: |
2-Way Active Line Array Loudspeaker |
Voltage Version: |
115V |
Maximum SPL: |
139 dB |
Low Frequency Drivers: |
2 x 6.5 in woofers with 2 in voice coils, vented |
High Frequency Driver: |
1 in exit compression driver with 1.75 in voice coil |
Horizontal Coverage: |
80 degrees, 110 degrees, or asymmetric 95 degrees left/right |
Vertical Coverage: |
10 degrees |
Crossover Frequency: |
1.2 kHz |
Amplifier: |
Class D, 1000W LF / 500W HF peak |

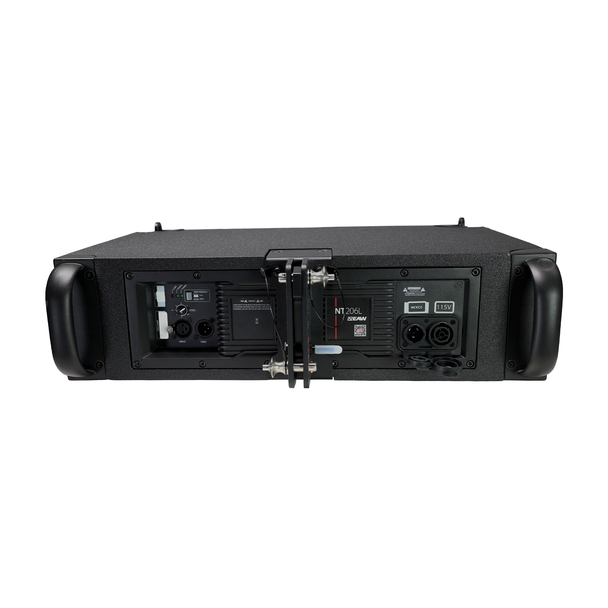

Input Type: |
Electronically balanced XLR |
Finish: |
Black |
