Description

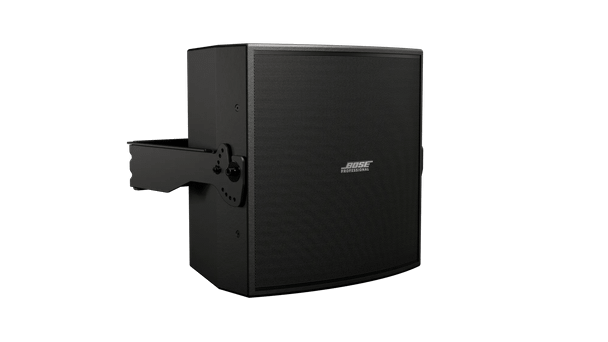

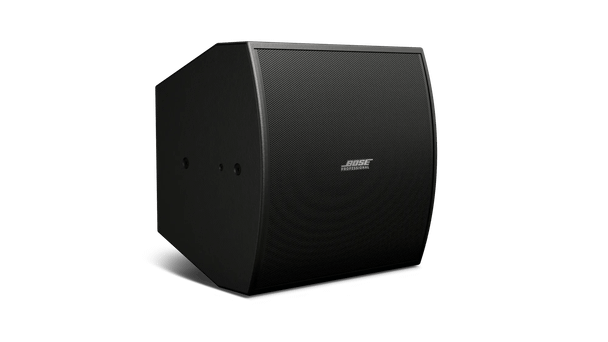

Forum FC112 is a 12-inch full-range coaxial point-source loudspeaker that delivers exceptional fidelity and output in a compact, install-friendly form factor. With a frequency range of 48 Hz–20 kHz and 132 dB max peak SPL, Forum FC112 provides clear, impactful sound for mid-to-large installations.
Features
- Low-Frequency: 1 × 12.0 in (305 mm) woofer
- High-Frequency: 1 × compression driver, 1.7 in (44 mm) voice coil
- Power Handling, long-term continuous: 300 W
- Frequency Range (-10 dB): 48 Hz – 20,000 Hz
- Coverage, Horizontal: 110°
- Fully tuned passive crossovers for excellent performance right out of the box
- High-excursion coaxial drivers deliver up to 132 dB max peak SPL
Why We Like This
The built-in crossover simplifies the signal path for an installation that does not need separate processing for each driver.
FAQs
Q: What amplifier connection does it require?
A: The nominal impedance is 8 Ω, passive / 8 Ω (LF) + 8 Ω (HF), bi-amp.
Q: Where can this speaker be installed?
A: Protected-outdoor usage, IP43. Its ingress protection rating is IP43.
Q: What installation items are included?
A: The listed items are (1) installation guide.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Calculated Maximum SPL @ 1 m: |
126 dB continuous, 132 dB peak |
Color: |
Black |
Coverage, Horizontal: |
110° |
Coverage, Vertical: |
60° |

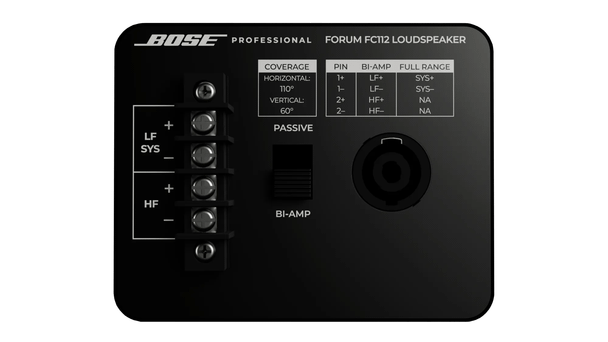

Crossover: |
Internal passive or external bi-amp |
Enclosure Material: |
Birch plywood |
Environmental: |
Protected-outdoor usage, IP43 |
Frequency Range (-10 dB): |
48 Hz – 20,000 Hz |
Grille: |
Perforated steel, powder-coated finish |
High-Frequency: |
1 × compression driver, 1.7 in (44 mm) voice coil |
Included Items: |
(1) installation guide |
Ingress Protection: |
IP43 |
Low-Frequency: |
1 × 12.0 in (305 mm) woofer |
Model: |
Forum FC112 Multipurpose Loudspeaker |
Nominal Impedance: |
8 Ω, passive / 8 Ω (LF) + 8 Ω (HF), bi-amp |
Power Handling, Peak: |
2400 W |
Power Handling, long-term continuous: |
300 W |
Product Type: |
Installation loudspeaker |
Recommended Signal Processing: |
Bose presets available but not required |
Sensitivity (SPL/1 W at 1 m): |
96 dB |

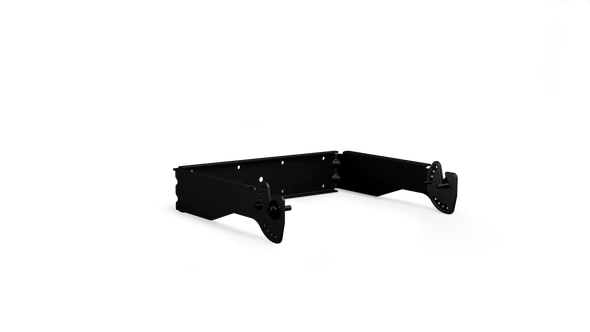

Suspension/Mounting: |
M10 threaded inserts |
Unit of Sale: |
Each |
