Description

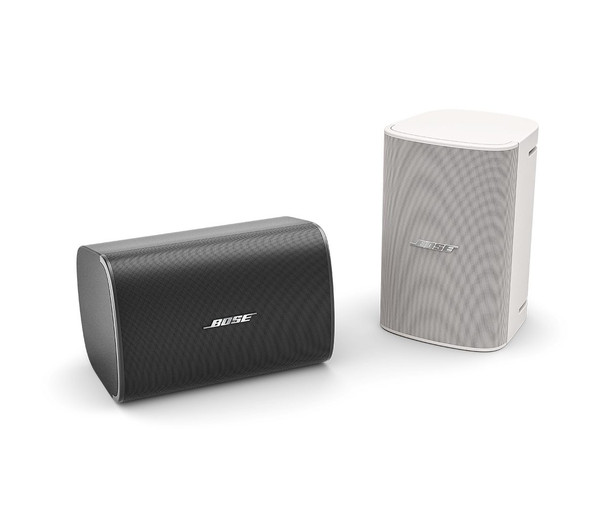

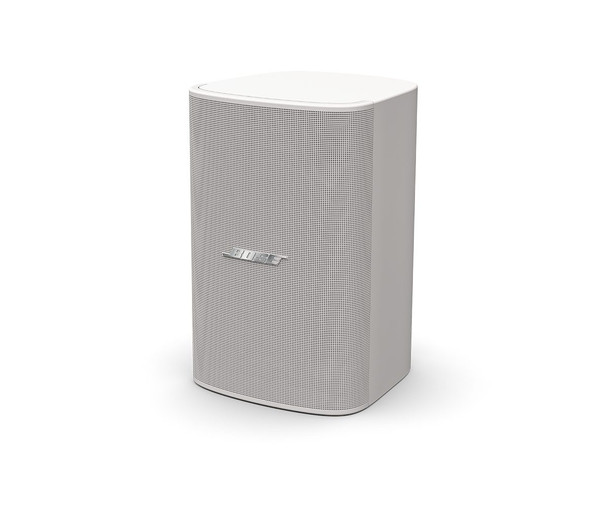

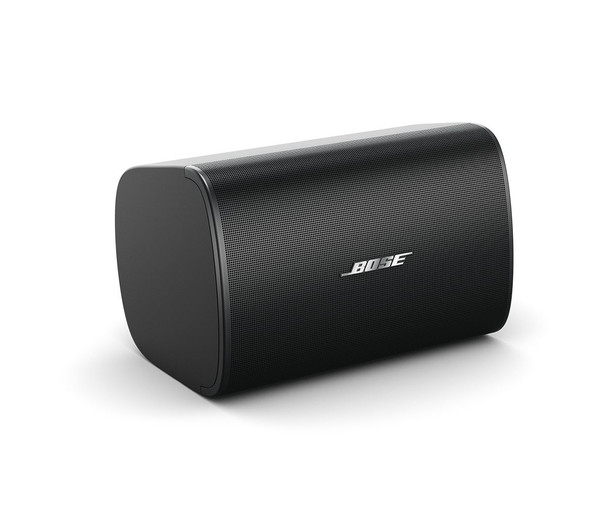

With coaxial two-way drivers, the 125-watt Bose DesignMax DM6SE loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The DM6SE features a 6.5-inch woofer and a 1.25-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 59 Hz – 20 kHz.
Features
- Low-Frequency: 1 × 6.5 in (165 mm) woofer, weather-treated
- High-Frequency: 1 × 1.25 in (32 mm) neodymium dome tweeter, coaxially mounted, weather-treated
- Power Handling, long-term continuous: 125 W
- Frequency Range (-10 dB): 59 Hz – 20,000 Hz
- Coverage, Horizontal: 125° conical
- Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
Why We Like This
The mounting system is a practical advantage when several speakers need to go into a ceiling on the same installation.
FAQs
Q: What amplifier connection does it require?
A: The nominal impedance is 8 Ω (transformer bypass). Transformer settings: Transformer Taps, 100V: 5, 10, 20, 40, 80 W, bypass; Transformer Taps, 70V: 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass.
Q: Where can this speaker be installed?
A: Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover. Its ingress protection rating is IP55.
Q: What installation items are included?
A: The listed items are (1) U-bracket.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Calculated Maximum SPL @ 1 m: |
111 dB |
Color: |
White |
Coverage, Horizontal: |
125° conical |
Coverage, Vertical: |
125° conical |
Crossover: |
1.7 kHz, passive 2-way crossover |
Driver Protection: |
Recommended high-pass protection 60 Hz with recommended 24 dB/octave filter |
Enclosure Material: |
Engineered plastics, highly UV fade-resistant |
Environmental: |
Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover |
Frequency Range (-10 dB): |
59 Hz – 20,000 Hz |
Grille: |
Perforated aluminum, powder-coated finish, tamper-resistant design, paintable |
High-Frequency: |
1 × 1.25 in (32 mm) neodymium dome tweeter, coaxially mounted, weather-treated |
Included Items: |
(1) U-bracket; powder-coated steel |
Ingress Protection: |
IP55 |
Low-Frequency: |
1 × 6.5 in (165 mm) woofer, weather-treated |
Model: |
DesignMax DM6SE White |
Nominal Impedance: |
8 Ω (transformer bypass) |
Power Handling, Peak: |
500 W |
Power Handling, long-term continuous: |
125 W |
Product Type: |
Installation loudspeaker |
Recommended Signal Processing: |
Not required, Bose EQ voicing and SmartBass processing available |
Sensitivity (SPL/1 W at 1 m): |
90 dB |
Transformer Taps, 100V: |
5, 10, 20, 40, 80 W, bypass |
Transformer Taps, 70V: |
2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass |
Unit of Sale: |
Pair |
