Description

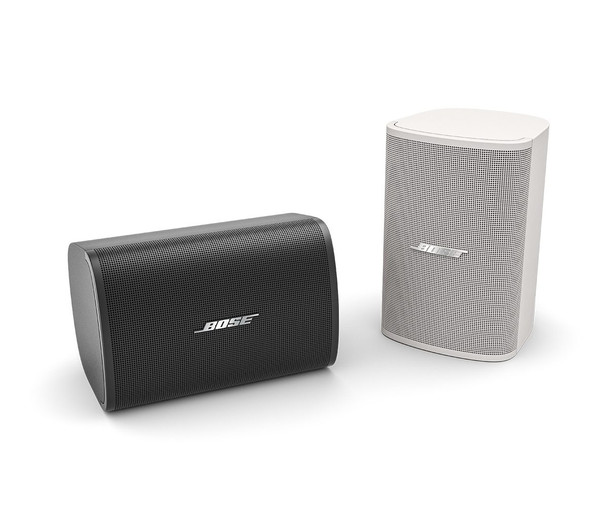

With coaxial two-way drivers, the 30-watt Bose DesignMax DM3SE loudspeaker offers clear, intelligible highs and surprising low end for their size — along with premium aesthetics that complement any commercial sound installation. The DM3SE features a two-way 3.5-inch woofer and 0.75-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz.
Features
- Low-Frequency: 1 × 3.25 in (83 mm) woofer, weather-treated
- High-Frequency: 1 × 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted, weather-treated
- Power Handling, long-term continuous: 30 W
- Frequency Range (-10 dB): 75 Hz – 20,000 Hz
- Coverage, Horizontal: 140° conical
- Deliver clear highs and surprising low-end for their size with coaxial two-way drivers — no DSP or EQ required. For even better sound, combine with select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
Why We Like This
The mounting system is a practical advantage when several speakers need to go into a ceiling on the same installation.
FAQs
Q: What amplifier connection does it require?
A: The nominal impedance is 8 Ω (transformer bypass). Transformer settings: Transformer Taps, 100V: 6, 12, 25 W, bypass; Transformer Taps, 70V: 3 W, 6 W, 12 W, 25 W, bypass.
Q: Where can this speaker be installed?
A: Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover. Its ingress protection rating is IP55.
Q: What installation items are included?
A: The listed items are (2) DesignMax DM3SE loudspeakers; (2) grilles; (2) U-brackets; (2) weather-resistant input covers; (1) installation guide.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Calculated Maximum SPL @ 1 m: |
101 dB |
Color: |
White |
Coverage, Horizontal: |
140° conical |
Coverage, Vertical: |
140° conical |
Crossover: |
1.7 kHz, passive 2-way crossover |
Driver Protection: |
Recommended high-pass protection 80 Hz with recommended 24 dB/octave filter |
Enclosure Material: |
Engineered plastics, highly UV fade-resistant |
Environmental: |
Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover |
Frequency Range (-10 dB): |
75 Hz – 20,000 Hz |
Grille: |
Perforated aluminum, powder-coated finish, tamper-resistant design, paintable |
High-Frequency: |
1 × 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted, weather-treated |
Included Items: |
(2) DesignMax DM3SE loudspeakers; (2) grilles; (2) U-brackets; (2) weather-resistant input covers; (1) installation guide |
Ingress Protection: |
IP55 |
Low-Frequency: |
1 × 3.25 in (83 mm) woofer, weather-treated |
Model: |
DesignMax DM3SE White |
Nominal Impedance: |
8 Ω (transformer bypass) |
Power Handling, Peak: |
120 W |
Power Handling, long-term continuous: |
30 W |
Product Type: |
Installation loudspeaker |
Recommended Signal Processing: |
Not required, Bose EQ voicing and SmartBass processing available |
Sensitivity (SPL/1 W at 1 m): |
86 dB |
Transformer Taps, 100V: |
6, 12, 25 W, bypass |
Transformer Taps, 70V: |
3 W, 6 W, 12 W, 25 W, bypass |
Unit of Sale: |
Pair |
