Description

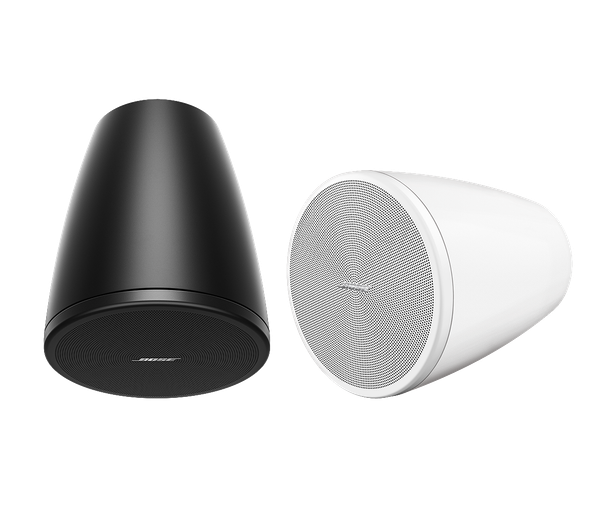

With a coaxial two-way design, the 30-watt Bose DesignMax DM3P loudspeaker offers clear, intelligible highs and surprising low end for its size — along with premium aesthetics that complement any commercial sound installation. It features a coaxial 3.25-inch woofer and 0.75-inch tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz.
Features
- Low-Frequency: 1 × 3.25 in (83 mm) woofer
- High-Frequency: 1 × 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted
- Power Handling, long-term continuous: 25 W
- Frequency Range (-10 dB): 75 Hz – 20,000 Hz
- Coverage, Horizontal: 130° conical
- Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
- Choose from three DM3 models — the in-ceiling DM3C, the surface-mounted, outdoor-rated DM3SE, and the sleek DM3P pendant loudspeaker
Why We Like This
Pendant mounting is useful in open-ceiling spaces where an in-ceiling speaker has nowhere to fit.
FAQs
Q: What amplifier connection does it require?
A: The nominal impedance is 8 Ω (transformer bypass). Transformer settings: Transformer Taps, 100V: 6, 12, 25 W, bypass; Transformer Taps, 70V: 3 W, 6 W, 12 W, 25 W, bypass.
Q: Where can this speaker be installed?
A: Indoor only.
Q: What installation items are included?
A: The listed items are (2) suspension cables, 15.0 ft (4.5 m) each; (2) DesignMax DM3P loudspeakers; (8) cable ties; (2) cable fasteners; (2) cable fastener tools; (1) installation guide.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Calculated Maximum SPL @ 1 m: |
99 dB |
Color: |
White |
Coverage, Horizontal: |
130° conical |
Coverage, Vertical: |
130° conical |
Crossover: |
1.7 kHz, passive 2-way crossover |
Driver Protection: |
Recommended high-pass protection 80 Hz with minimum 24 dB/octave filter |
Enclosure Material: |
Engineered plastics |
Environmental: |
Indoor only |
Frequency Range (-10 dB): |
75 Hz – 20,000 Hz |
Grille: |
Perforated steel, powder-coated finish |
High-Frequency: |
1 × 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted |
Included Items: |
(2) suspension cables, 15.0 ft (4.5 m) each; (2) DesignMax DM3P loudspeakers; (8) cable ties; (2) cable fasteners; (2) cable fastener tools; (1) installation guide |
Low-Frequency: |
1 × 3.25 in (83 mm) woofer |
Model: |
DesignMax DM3P White |
Nominal Impedance: |
8 Ω (transformer bypass) |
Power Handling, Peak: |
100 W |
Power Handling, long-term continuous: |
25 W |
Product Type: |
Installation loudspeaker |
Recommended Signal Processing: |
Not required, Bose EQ voicing and SmartBass processing available |
Sensitivity (SPL/1 W at 1 m): |
84 dB |
Suspension/Mounting: |
1 suspension attachment point, 1 safety cable attachment point |
Transformer Taps, 100V: |
6, 12, 25 W, bypass |
Transformer Taps, 70V: |
3 W, 6 W, 12 W, 25 W, bypass |
Unit of Sale: |
Pair |
