Description

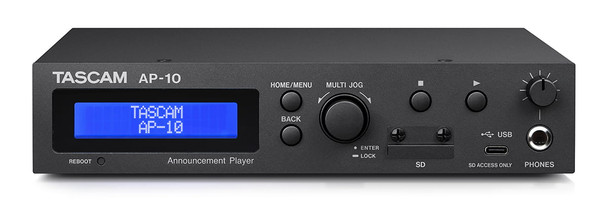

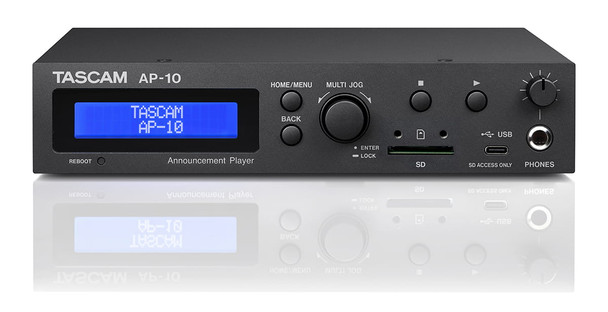

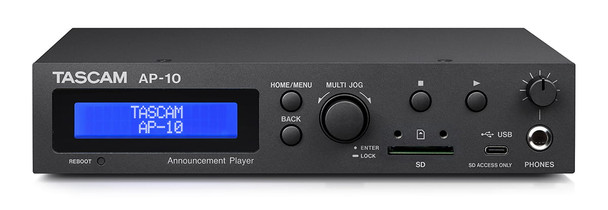

The TASCAM AP-10 is a two-channel SD audio player for announcements and background audio in commercial facilities, offices and visitor attractions. GPIO triggers and LAN-based OSC control integrate playback into installed control systems.

Features

Stereo or dual-mono playback from SD, SDHC and SDXC media up to 512 GB
48 kHz/24-bit LPCM WAV playback
Direct, Single, Interval, Binary and Program playback modes

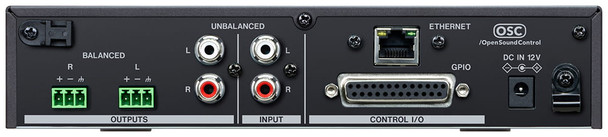

Balanced Euroblock and unbalanced RCA audio outputs
GPIO and Ethernet OSC external control
Offline playlist and event-list editing with TASCAM Playlist Editor
Power-on Play and automatic background-music ducking

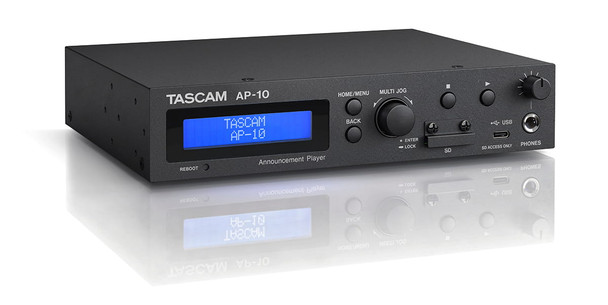

Compact 1U half-rack metal chassis with panel lock

Why We Like This

Independent manual operation lets staff trigger essential playback from the front panel when an external control system is unavailable.

FAQs

Q: Can it play MP3 files directly?
A: The specified playback format is 48 kHz/24-bit LPCM WAV. TASCAM Playlist Editor can convert audio into a compatible format before use.

Q: Is a power adapter included?
A: Yes. TASCAM lists the PS-P1220E AC adapter among the included items. The player also supports power input through GPIO.

Q: Is a rackmount kit included?
A: No. Rack and shelf mounting use optional mounting accessories.

Q: How should I prepare an SD card?
A: Use Class 10 or faster SD, SDHC or SDXC media and format it using the AP-10 hardware. The specified maximum card capacity is 512 GB.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

Analog audio input and output ratings / ANALOG OUTPUT (BALANCED) jacks - Connectors:	Euroblock (balanced) 3.81mm pitch
Analog audio input and output ratings / ANALOG OUTPUT (BALANCED) jacks - Maximum output level:	+24 dBu (12.3 Vrms, when output attenuation set to off)
Analog audio input and output ratings / ANALOG OUTPUT (BALANCED) jacks - Output impedance:	100 Ω
Analog audio input and output ratings / ANALOG OUTPUT (BALANCED) jacks - Rated output level:	+4 dBu (1.23 Vrms, when output attenuation set to off)
Analog audio input and output ratings / ANALOG OUTPUT (UNBALANCED) jacks - Connectors:	RCA pin jacks
Analog audio input and output ratings / ANALOG OUTPUT (UNBALANCED) jacks - Maximum output level:	+6 dBV (2.0 Vrms, when output attenuation set to off)
Analog audio input and output ratings / ANALOG OUTPUT (UNBALANCED) jacks - Output impedance:	210 Ω
Analog audio input and output ratings / ANALOG OUTPUT (UNBALANCED) jacks - Rated output level:	-10 dBV (0.316 Vrms, when output attenuation set to off)
Analog audio input and output ratings / Analog INPUT (UNBALANCED) jacks - Connectors:	RCA pin jacks
Analog audio input and output ratings / Analog INPUT (UNBALANCED) jacks - Input impedance:	10 kΩ or higher
Analog audio input and output ratings / Analog INPUT (UNBALANCED) jacks - Maximum input level:	+6 dBV (2.0 Vrms)
Analog audio input and output ratings / Analog INPUT (UNBALANCED) jacks - Rated input level:	-10 dBV (0.316 Vrms)
Analog audio input and output ratings / PHONES jack - Connector:	6.3mm (1/4") standard stereo jack
Analog audio input and output ratings / PHONES jack - Maximum output:	20 mW + 20 mW or higher (THD+N 0.1% or less, into 32Ω load)
Analog audio input and output ratings / PHONES jack - Recommended impedance:	16–600 Ω (With low-impedance headphones, sufficient volume might not be achieved even if they are in the recommended range.)
Control input and output ratings / ETHERNET connector - Cable:	category 5e or faster
Control input and output ratings / ETHERNET connector - Connector:	RJ-45
Control input and output ratings / ETHERNET connector - Ethernet standard:	100BASE-TX
Control input and output ratings / ETHERNET connector - Port number:	5000
Control input and output ratings / ETHERNET connector - Transmission protocol:	OSC (Open Sound Control)
Control input and output ratings / GPIO connector - Connector:	D-sub 25-pin female (Locking screws: No. 4-40 UNC (inch type))
Control input and output ratings / USB port - Connector:	USB Type-C
Control input and output ratings / USB port - Device class:	mass storage
Control input and output ratings / USB port - Standard:	USB 2.0 HIGH SPEED (480 Mbps)
Frequency response - 20 Hz – 20 kHz::	+/-1.0 dB (SD playback to analog output, JEITA)
Manufacturer:	TASCAM
Model:	AP-10
Playback file formats - Maximum number of files:	999 (including folders)
Playback file formats - Maximum size per file:	2 GB
Playback file formats - WAV:	48kHz, 24-bit (LPCM)
Product Type:	Announcement SD audio player
Specifications - Channel separation:	90 dB or higher (SD playback to analog output, 1 kHz sine wave, JEITA)
Specifications - Distortion:	0.008% or less (SD playback to analog output, JEITA)
Specifications - Dynamic range:	90 dB or higher (SD playback to analog output, JEITA)
Specifications - Number of channels:	2 channels (stereo) 1 channel (mono)
Specifications - Operating humidity range:	25 – 85%RH (at 32°C, without condensation)
Specifications - Operating temperature range:	0 – 40°C (32 – 104°F)
Specifications - Power:	Dedicated AC adapter (TASCAM PS-P1220E)
Specifications - Power consumption:	4W
Specifications - S/N ratio:	93 dB or higher (SD playback to analog output, JEITA)
Specifications - Supported media:	SD cards (512 MB – 2 GB, Class 10 or higher) SDHC cards (4 GB – 32 GB, Class 10 or higher) SDXC cards (64 GB – 512 GB, Class 10 or higher) * Media must be formatted by the AP-10 hardware. (FAT16 for up to 2 GB, FAT32 for more than 2 GB up to 4GB, and
