Description

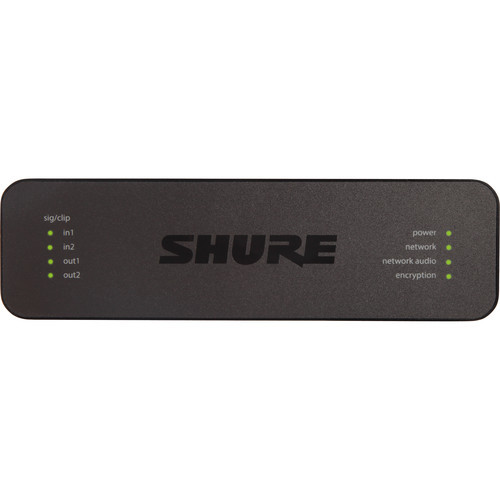

The ANI22 Audio Network Interface from Shure is designed to bring up to two line/mic signals onto or from a Dante network. It can be utilized for easy audio routing and convenient browser-based remote control. In addition, it is built with analog block connectors.
Why We Like This
A clean, efficient bridge between analog gear and Dante networks, perfect for scalable AV installations.
FAQs
Q: What does the ANI22BLOCK do?
A: It converts up to two analog mic/line signals to and from a Dante network.
Q: Is this for studio recording setups?
A: It’s primarily designed for installed AV and Dante systems, not traditional USB recording interfaces.
Q: How do you control it?
A: Through a browser-based interface for easy remote configuration.
Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and creators every day with reliable gear and expert service.
Tech Specs

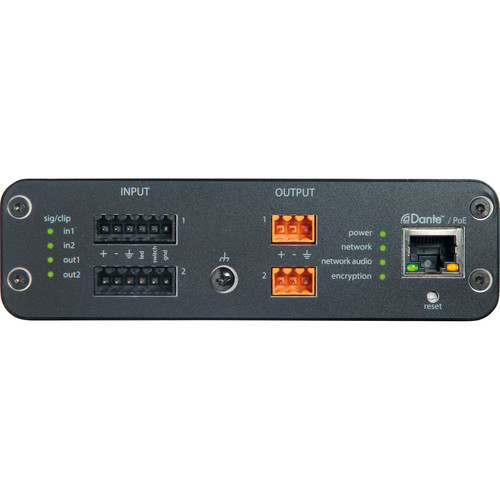

Inputs (Analog): |
2 x 6-pin block connectors |
Outputs (Analog): |
2 x 3-pin block connectors |
Dante Connection: |
1 x RJ45 |
Channel Count: |
2 inputs; 2 outputs |
Polarity: |
Non-inverting; any input to any output |
Power Requirements: |
Power over Ethernet (PoE), Class 0 (PoE Plus compatible) |
Power Consumption: |
11 W maximum |
Application Control: |
HTML5 |
Storage Temperature Range: |
20 to 165°F (-29 to 74°C) |
Thermal Dissipation: |
Maximum: 12.1 W (41.3 BTU/hr); Typical: 9.8 W (33.7 BTU/hr) |
Frequency Response: |
20 Hz to 20 kHz ±1 dB |
Dante Audio Flows: |
Sampling Rate: 24-bit/48 kHz |
Latency: |
Analog to Dante: 0.35 ms; Dante to Analog: 0.71 ms |
Analog Gain Range: |
51 dB (adjustable in 3 dB steps) |
Dynamic Range: |
113 dB, 20 Hz to 20 kHz, A-weighted, typical |
Equivalent Input Noise: |
20 Hz to 20 kHz, A-weighted; +0 dB: -93 dBV; +27 dB: -119 dBV; +51 dB: -130 dBV |
Total Harmonic Distortion (THD): |
<0.05% @ 1 kHz, 0 dBV input, 0 dB analog gain |
Common Mode Rejection Ratio: |
>70 dB, 50 Ohms balanced source @ 1 kHz |
Input Impedance: |
5 kOhms |
Output Impedance: |
150 Ohms |
Input Clipping Level: |
+0 dB: +20 dBV; +27 dB: -7 dBV; +51 dB: -31 dBV |
Analog Output Levels: |
Selectable Line 0 dB; Aux -20 dB; Mic -46 dB |
Digital Signal Processing (DSP): |
Per Channel: Equalizer (4-band Parametric, Dante channels only); Mute; Limiter; Gain (140 dB range); System: Channel Summing |
Networking: |
Cat 5e or higher (shielded cable recommended) |
