Description

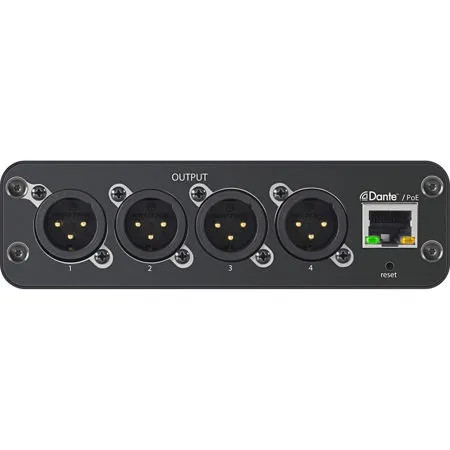

The Shure Audio Network Interface shall convert 4 channels of Dante digital audio into discrete analog output signals. The interface shall provide connectivity with analog devices (audio processors, video codecs and loudspeaker systems, for example) to fully integrate networked audio and analog equipment in a single system. Available in XLR and block connector versions, each box uses a single network cable to receive audio and power through Power over Ethernet (PoE). The web application shall control built-in digital signal processing, including channel settings, parametric equalization, and audio summing from any computer connected to the same network.
Why We Like This
A clean, professional bridge from Dante to analog, making system integration simple, scalable, and reliable.
FAQs
Q: What does the ANI4OUT do?
A: It converts four channels of Dante digital audio into analog output signals.
Q: What equipment can it connect to?
A: Amplifiers, DSP processors, video codecs, and loudspeaker systems.
Q: How is it powered?
A: Through Power over Ethernet (PoE) using a single network cable.
Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and creators every day with reliable gear and expert service.
Tech Specs
Frequency Response: |
20 to 20,000Hz |
Input (Dante Digital Audio): |
Channel Count: 4; Sampling Rate: 48kHz; Bit Depth: 24 |
Latency: |
Does not include Dante latency; 0.71 ms |
Dynamic Range (Dante-to-Analog): |
20Hz to 20kHz, A-weighted, typical; 117 dB |
Total Harmonic Distortion: |
<0.05% at 1kHz, -20 dBFS output, 0 dB analog gain |
Output Clipping Level: |
Line: +20 dBV; Aux: +0 dBV; Mic: -26 dBV |
Analog Output Level: |
Selectable Line: 0 dB; Aux: -20 dB; Mic: -46 dB |
Output Impedance: |
150 Ohms |
Built-in Digital Signal Processing: |
Per Channel: Equalizer (4-band Parametric); Mute; Invert Polarity; Gain (140 dB range); System: Audio Summing |
Control Application: |
HTML5 Browser-based |
Input: |
1 x RJ45 |
Outputs: |
4 x XLR connector |
Configuration: |
Impedance Balanced |
Polarity: |
Non-inverting; any input to any output |
Power Requirements: |
Power over Ethernet (PoE), Class 0 |
Power Consumption: |
10W maximum |
Applications: |
Conferencing |
Storage Temperature Range: |
-29 to 74 deg. C (-20 to 165 deg. F) |
