Description

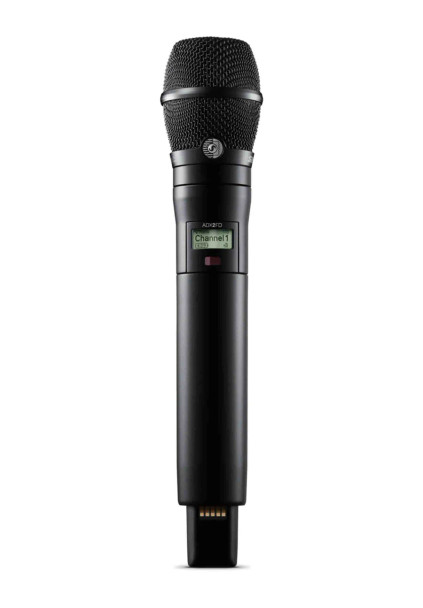

The Shure ADX2FD/K11B=-G57 Handheld Wireless Microphone Transmitter compatible with Axient Digital Wireless Systems Black - G57 (470-608 MHz). ADX2FD/K11 features the prized combination of full lows, clear mids and high-end of the KSM11 Cardioid Condenser Microphone. Combined with ADX transmitters this combination sets the stage for exceptional performance. Frequency Diversity with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth.
External contacts for docked charging with optional fully covered radome, Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance, Two transmission, modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage Encryption-enabled, secure transmission.
Why We Like This
The ADX2FD/K11B combines the detailed sound of the KSM11 capsule with Frequency Diversity for added RF stability in challenging environments. With wide tuning, ShowLink control, and rechargeable operation, it’s built for consistent performance in high-demand live and broadcast setups.
FAQs
Q: What systems is the ADX2FD/K11B compatible with?
A: It is designed for use with Shure Axient Digital wireless systems.
Q: What makes this transmitter different from standard handhelds?
A: It features Frequency Diversity, which helps maintain signal stability by reducing dropouts in complex RF environments.
Q: Does it support remote control and secure transmission?
A: Yes, it includes ShowLink for real-time control and AES encryption for secure audio transmission.
Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and creators every day with reliable gear and expert service.
Tech Specs
Housing Material: |
Cast Aluminum |
Gain Offset Range: |
-12 to 21 dB (in 3 dB steps) |
Frequency Range: |
G57: 470-608MHz |
Battery: |
SB920A Rechargeable Lithium-Ion |
Battery Run Time @10 mW: |
Single-Carrier Mode: up to 9 hours; Frequency Diversity: up to 6.5 hours |
Configuration: |
Unbalanced |
Maximum Input Level: |
145 dB SPL, Typical (SM58) (1 kHz at 1% THD) |
Antenna Type: |
Integrated Dual-Band Helical |
Occupied Bandwidth: |
<200 kHz |
Channel-to-Channel Spacing: |
Standard Mode: 350 kHz; High-Density Mode: 125 kHz |
Modulation Type: |
Shure Axient Digital Proprietary |
Power: |
Single Carrier Mode: 2 mW, 10 mW, 20 mW, 50 mW; Frequency Diversity Mode: 2 x 20 mW |
Specific Absorption Rate (SAR): |
<0.21 W/kg |
Network Type: |
IEEE 802.15.4 |
ShowLink Antenna Type: |
ZigBee Dual Conformal |
ShowLink Frequency Range: |
2.40 to 2.4835 GHz (24 Channels) |
RF Output Power Varies By Region: |
10 dBm (ERP) |
Battery Info: |
Required, Included |
Battery Material: |
Lithium ion |
Battery Type: |
Non-universal |
Battery Quantity: |
1 |
Dimensions (L x Dia.): |
10 x 2" (254 x 51mm) |
KSM11 Housing Material: |
Aluminum and Steel Grille |
Type: |
Electret Condenser |
Polar Pattern: |
Cardioid |
Frequency Response: |
50 to 20,000 Hz |
Output Impedance (1 kHz): |
250 Ohm with 5 VDC |
Sensitivity: |
-46.5 dBV/Pa (At 1 kHz, open circuit voltage) |
Maximum SPL with 5 VDC: |
151 dB SPL |
Signal-to-Noise Ratio: |
71.5 dB |
Dynamic Range with 5 VDC: |
128.5 dB |
Clipping Level with 5 VDC: |
10 dBV |
Self Noise: |
22.5 dB SPL (Typical, equivalent SPL, A-weighted) |
Polarity: |
Positive pressure on diaphragm produces positive voltage into transmitter with respect to ground |
Power Requirements: |
5 Volt Bias from Shure Transmitter |
Dimensions (Dia. x H): |
1.92 x 3.0" (48.7 x 76.3mm) |
KSM11 Weight: |
5.23 oz (150g) |
