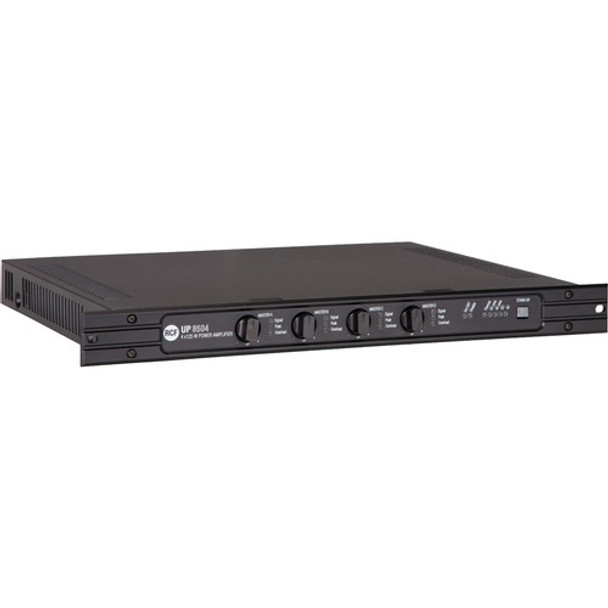

RCF UP-8504 Power Amplifier Class D (70V/ 4 ohm/ Dual Input per Channel)

Write a Review
$1,999.00
RCF UP-8504 Power Amplifier Class D (70V/ 4 ohm/ Dual Input per Channel)
RCF UP-8504 Power Amplifier Class D (70V/ 4 ohm/ Dual Input per Channel)
RCF UP-8504 Power Amplifier Class D (70V/ 4 ohm/ Dual Input per Channel)
RCF UP-8504 Power Amplifier Class D (70V/ 4 ohm/ Dual Input per Channel)
SKU:
UP-8504
UPC:
8024530007324
MPN:
8024530007324
Width:
1.70 (in)
Height:
19.00 (in)
Depth:
14.70 (in)
Shipping:
Free Shipping
Current Stock:

Description

RCF UP8504 Overview

The 1 RU 8000 Series UP 8504 Power Amplifier from RCF is a 4 x 125W amplifier which uses digital technology, and allows AC and DC power operation. The switching mode power supplies includes an independent 48 VDC section designed for redundancy. Each channel is provided with two inputs and dedicated priority circuit to get mix/mute and priority operation. The amplifier is suitable for 70/100V applications. It features front panel status LEDs and a rear panel DIP switch which allows you to disable the frontal volume controls. All connectors are removable screw terminals. The UP 8504 is ideal for use in restaurants, shops, supermarkets, hotels, offices, department stores, industrial systems, and similar venues.

Class D amplifier and double switching AC-DC power supply, transformer-less galvanic insulated speaker output
Pro audio performance
Selectable 70/100V output per channel
Double input per channel
Active full protections on amplifier and power supply
Stand-by, priority and fault remote commands
Activity and status indicators
Volume knobs on front panel with disablement facility
Light-weight 1 RU 19" rack enclosure


RCF UP8504 Specs

Power Output 500 W RMS
Frequency Response 20 Hz to 20 kHz
Distortion 0.3%
Signal / Noise 86 dB
Crosstalk 86 dB
Input Sensitivity Line: 0 dBu (775 mV, max 7 V)
Aux: 0 to -20 dBu (775 to 778 mV, max 7 V)
Mic Input Impedance 10 kOhms
High-Pass Filter 200 Hz to 8 kHz (passband)
Output Level 100 - 70 V
Output Voltage 70 V (40 ohms) 100 V (80 ohms)
Operating Voltage Mains: 115-230 V ±10%, 50/60 Hz
Batteries: 48 VDC ±10%
Power Consumption 4 x 125 W
Fuse 5 x 20 /FKS
Controls Volume
Protections Overload, thermal
Dimensions 1.7 x 19.0 x 14.7" (44 x 482 x 375 mm)
Weight 12.12 lb (5.5 kg)
