Description
RCF UP8501 Overview

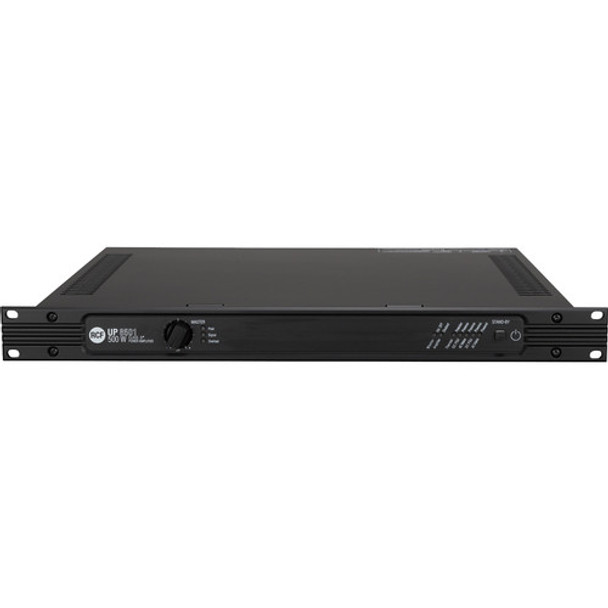

The 1 RU 8000 Series UP 8501 Power Amplifier from RCF is a 1 x 500W amplifier which uses digital technology, and allows AC and DC power operation. The switching mode power supplies includes an independent 48 VDC section designed for redundancy. Each channel is provided with two inputs and dedicated priority circuit to get mix/mute and priority operation. The amplifier is suitable for 70/100V applications. It features front panel status LEDs and a rear panel DIP switch which allows you to disable the frontal volume controls. All connectors are removable screw terminals. The UP 8501 is ideal for use in restaurants, shops, supermarkets, hotels, offices, department stores, industrial systems, and similar venues.
RCF UP8501 Specs
| Power Output | 500 W RMS |
| Frequency Response | 40 Hz to 16 kHz |
| Distortion | 0.3% |
| Signal / Noise | 86 dB |
| Crosstalk | 86 dB |
| Input Sensitivity | Line: 0 dBu (775 mV, max 7 V) Aux: 0 to -20 dBu (775 to 778 mV, max 7 V) |
| Mic Input Impedance | 10 kOhms |
| High-Pass Filter | 200 Hz to 8 kHz (passband) |
| Output Level | 100 - 70 V |
| Output Voltage | 70 V (10 ohms) 100 V (20 ohms) |
| Operating Voltage | Mains: 115-230 V ±10%, 50/60 Hz Batteries: 48 VDC ±10% |
| Power Consumption | 1 x 500 W |
| Fuse | 5 x 20 /FKS |
| Controls | Volume |
| Protections | Overload, thermal |
| Dimensions | 1.7 x 19.0 x 14.7" (44 x 482 x 375 mm) |
| Weight | 11.24 lb (5.1 kg) |
