Description

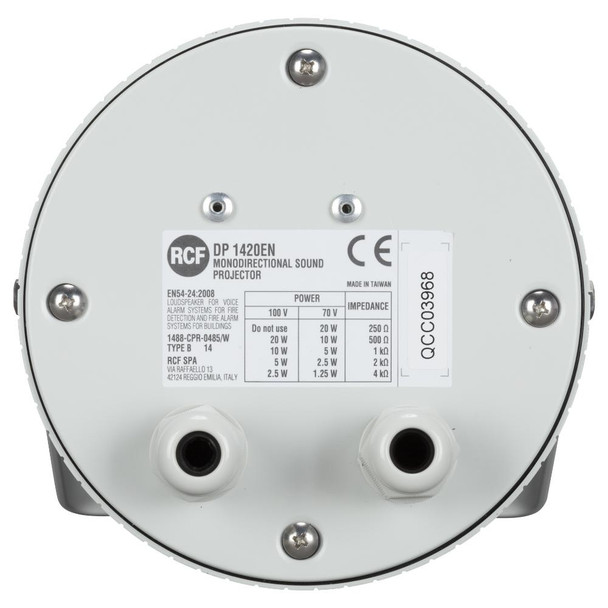

DP 1420EN is a unidirectional sound projector featuring an elegant aesthetic and easy installation, suitable for the sonorization of commercial and industrial environments where a good sound quality and high intelligibility and efficiency are required. It features a aluminium cylindrical body, grille and bracket. Ground screw available (if needed). Thanks to its IP66 protection grade, it can be installed both indoor and outdoor.
Features
- 5" fullrange transducer.
- Power selectable (100 V): 20 W – 10 W – 5 W – 2.5 W – 1.25 W.
- 92 dB sensitivity.
- Colour grey RAL 7035.
- Aluminium body, grille and bracket.
- In/out ceramic terminal block.
- Thermal fuse protection.
- Protection grade IP66.
Why We Like This
Its focused sound projection and rugged IP66 design make it ideal for targeted audio coverage in both indoor and outdoor environments.
FAQs

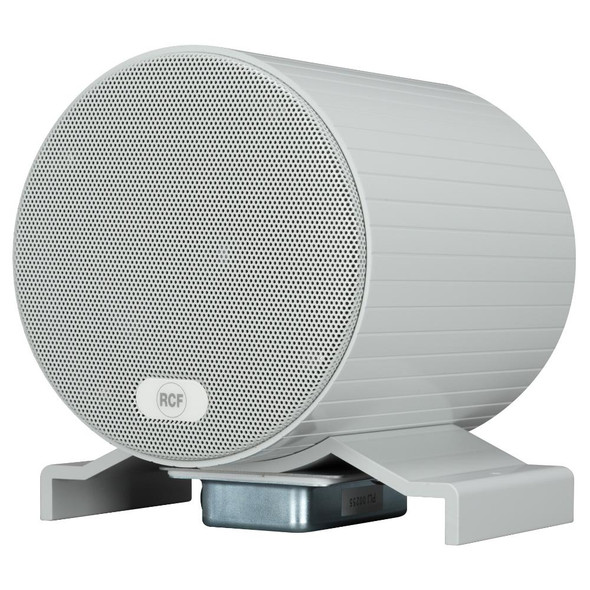

Q: What is the difference between unidirectional and bidirectional projectors?
Unidirectional projectors send sound in one direction, while bidirectional models project sound in two opposite directions.
Q: Can it be used outdoors?
Yes. It features an IP66 rating for dust and water resistance.
Q: What type of system is it designed for?
It is designed for 100V line distributed audio systems.
Based in Chicago, IL, Gear Club Direct supports installers and audio professionals with reliable gear and expert service you can trust.
Tech Specs
Frequency Response (-10dB): |
160 Hz - 20000 Hz |
Max SPL @ 1m: |
105 dB |
Max SPL @ 4m: |
93 dB |
Coverage angle: |
155° |
System Sensitivity: |
92 dB |
System Sensitivity 1W @ 4m: |
80 dB |
Power Handling: |
20 W |
Peak Power Handling: |
80 W PEAK |
Protections: |
Thermal fuse |
Recommended Amplifiers: |
DXT 3000, DXT 4000, DXT 7000 |
Fullrange: |
1 x 5.0'' |
Input connectors: |
Ceramic screw terminals |
Output connectors: |
Ceramic screw terminals |
Constant Voltage Transformer: |
70/100 V |
Power selection 1: |
20 W - 500 ohm |
Power selection 2: |
10 W - 1000 ohm |
Power selection 3: |
5 W - 2000 ohm |
Power selection 4: |
2.5 W - 4000 ohm |
Power selection 5: |
1.25 W - 8000 ohm |
IP protection grade: |
IP 66 |
Safety agency: |
CE compliant |
EN54-24 certified: |
Yes |
Dimensions: |
7.87" 5.75" x 6.02" |
Weight: |
6.02 lbs |
