Description

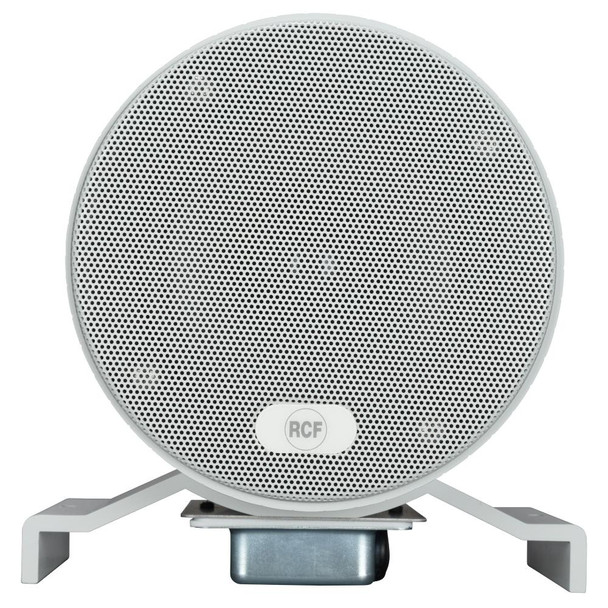

BD 2412EN is a bidirectional sound projector featuring an elegant aesthetic and easy installation, suitable for the sonorization of commercial and industrial environments where a good sound quality and high intelligibility and efficiency are required. It features a aluminium cylindrical body, grille and bracket. Ground screw available (if needed). Thanks to its IP66 protection grade, it can be installed both indoor and outdoor.
Features
- 2 x 5" fullrange transducers.
- Power selectable (100 V): 20 W – 10 W – 5 W.
- 88 dB sensitivity.
- Colour grey RAL 7035.
- Aluminium body, grille and bracket.
- In/out ceramic terminal block.
- Thermal fuse protection.
- Protection grade IP66.
Why We Like This
Its bidirectional design and IP66 rating make it a smart solution for efficient, high-clarity audio coverage in both indoor and outdoor environments.
FAQs
Q: Where is this speaker typically used?
It’s ideal for corridors, warehouses, retail spaces, and outdoor commercial areas.
Q: Can it be used outdoors?
Yes. It features an IP66 rating for dust and water resistance.
Q: What type of system does it require?
It is designed for 100V line distributed audio systems.
Based in Chicago, IL, Gear Club Direct supports installers and audio professionals with reliable gear and expert service you can trust.
Tech Specs
Acoustical specifications: |
Frequency Response (-10dB) 130 Hz - 20000 Hz Max SPL @ 1m 101 dB Max SPL @ 4m 89 dB Coverage angle 130° System Sensitivity 88 dB System Sensitivity 1W @ 4m 76 dB |
Power section: |
Power Handling 20 W Peak Power Handling 80 W PEAK Protections Thermal fuse Recommended Amplifiers DXT 3000, DXT 4000, DXT 7000 |
Fullrange: |
2 x 5.0'' |
Input/Output section: |
Input connectors Ceramic screw terminals Output connectors Ceramic screw terminals Constant Voltage Transformer 100 V Power selection 1 20 W - 500 ohm Power selection 2 10 W - 1000 ohm Power selection 3 5 W - 2000 ohm |
Standard compliance: |
IP protection grade IP 66 Safety agency CE compliant EN54-24 certified Yes CPR number 1488-CPR-0641/W |
Dimensions (Depth x Diameter): |
7.24" x 5.75" |
