Description

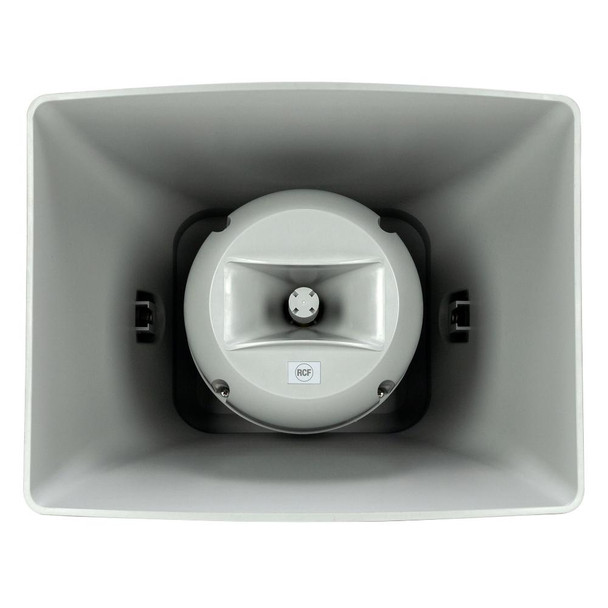

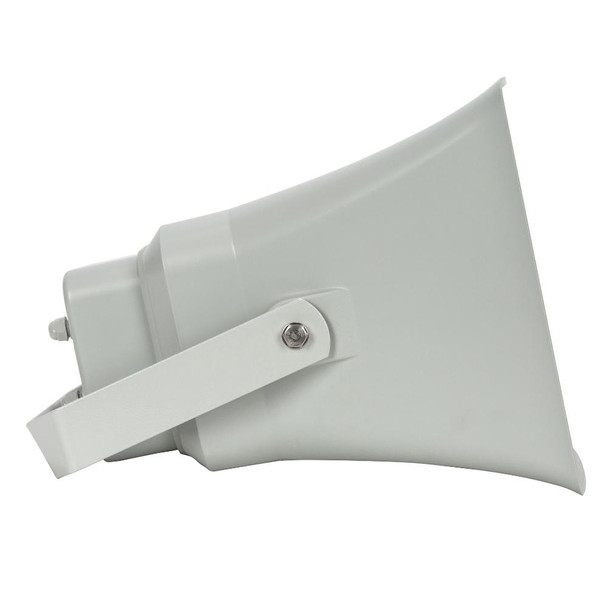

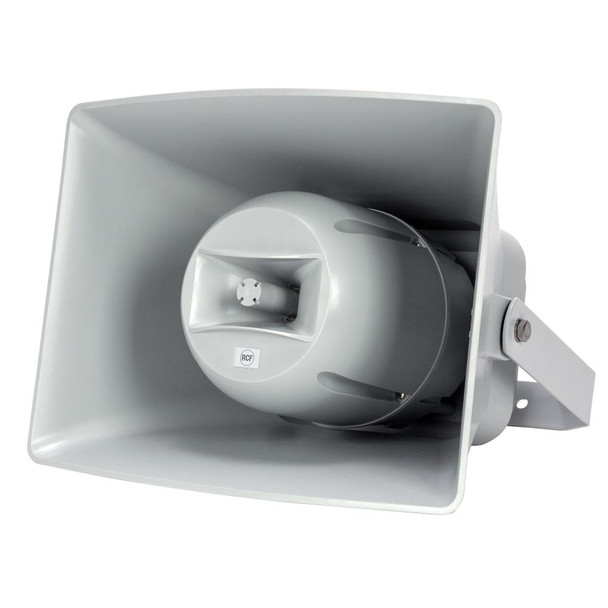

MH 61EN is a two-way plastic horn speaker suitable for both broadcasting alarm messages (thanks to the highly intelligible voice reproduction) and background music, and can be used for sound reinforcement and speech systems in medium and large spaces. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. It can be easily aimed towards any direction through the adjustable wall-mount bracket, and thanks to its IP66 protection grade it can be installed both indoor and outdoor.
Features
- 6.5" woofer with 1" dome tweeter.
- Power selectable (100 V): 60 W – 30 W – 15 W – 7.5 W.
- 99 dB sensitivity.
- Colour grey RAL 7035.
- Plastic body.
- In/out ceramic terminal block.
- Thermal fuse protection.
- Protection grade IP66.
Why We Like This
It blends horn projection with full-range sound, making it a rare option that handles both announcements and background music in outdoor environments.
FAQs
Q: Can this be used outdoors?
Yes. It has an IP66 rating for full weather protection.
Q: Is it only for speech or also music?
It supports both, thanks to its 2-way design.
Q: What type of system does it require?
It is designed for 100V line distributed audio systems.
Based in Chicago, IL, Gear Club Direct supports professional audio installations and communication systems with reliable gear and expert service.
Tech Specs
Acoustical specifications: |
Frequency Response (-10dB) 100 Hz - 20000 Hz Max SPL @ 1m 115 dB Max SPL @ 4m 103 dB Horizontal coverage angle 70° Vertical coverage angle 90° System Sensitivity 99 dB System Sensitivity 1W @ 4m 87 dB |
Power section: |
Nominal Impedance 8 ohm Power Handling 60 W Peak Power Handling 240 W PEAK Protections Thermal fuse Recommended Amplifiers DXT 3000, DXT 4000, DXT 7000 |
Dome Tweeter: |
1 x 1.0'' |
Woofer: |
1 x 6.5'' |
Constant Voltage Transformer: |
100 V |
Power selection 1 </br> Power selection 2 </br> Power selection 3 </br> Power selection 4: |
60 W - 167 ohm 30 W - 333 ohm 15 W - 667 ohm 7.5 W - 1333 ohm |
Height: |
13.07 inches |
Width: |
16.46 inches |
Depth: |
15.39 inches |
Weight: |
16.2 lbs |
