Description

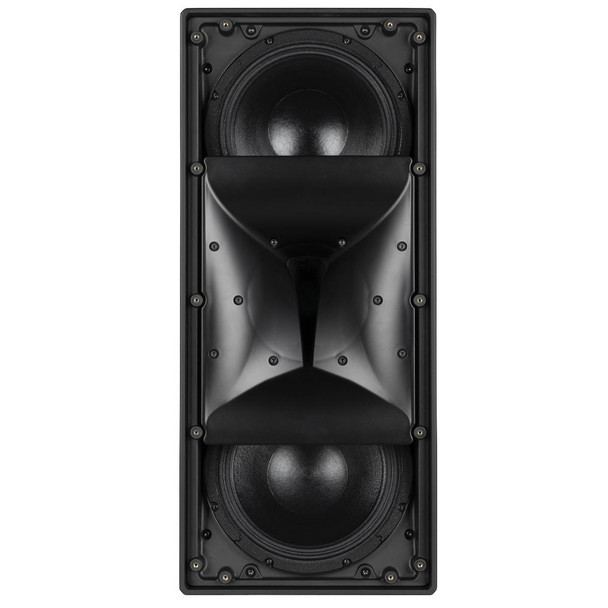

X 40 is a two-way professional speaker designed for a wide range of fixed indoor and outdoor installations requiring high audio quality and extreme durability. Thanks to the state of the art RCF transducers, two 10’’ high power woofers with 3.0’’ voice coils and one 1.4’’, titanium dome, compression driver with 4.0’’ voice coil, it offers exceptional max SPL level with a balanced and clear sound. The asymmetrical horn with 110° by 60° directivity allows an efficient coverage at different distances, as for example in the case of a racing circuit grandstand. The cabinet is made of high-density polyurethane, while the aluminum grille guarantees protection from dust and rain, thanks to a waterproof fabric layer. A bracket for wall mount vertical installation is included.
Features
- 1200 W RMS power handling
- 142 dB max SPL
- 50 ÷ 20000 Hz frequency range
- 110° x 60° coverage angle with asymmetric horn
- 2 x 10" neo woofer, 3.0'' v.c.
- 1 x 1.4" neo compression driver, 4.0'' v.c.
- Polyurethane cabinet / aluminum grille
- IP55 protection grade
- 4 pole barrier strip terminals

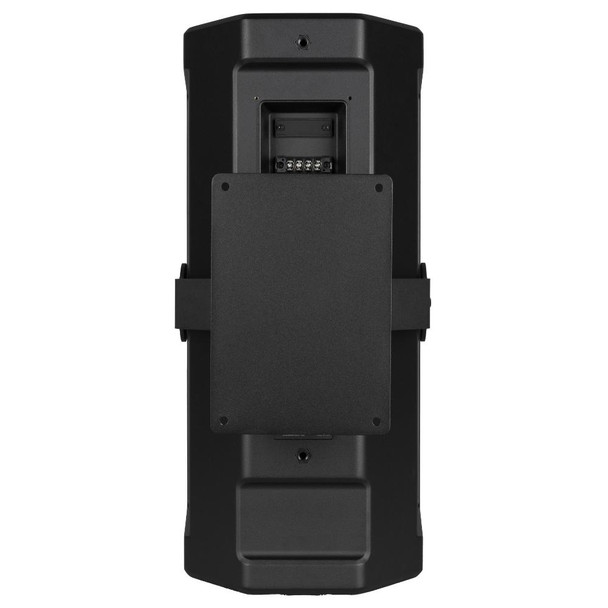

- Wall mount vertical bracket included
Why We Like This
The asymmetric horn and extreme output make it ideal for complex spaces where consistent coverage across distance is critical.
FAQs
Q: Is this speaker suitable for outdoor use?
Yes. It features an IP55 rating and weather-resistant construction.
Q: Does it include a mounting solution?
Yes. A vertical wall mounting bracket is included.
Q: Is it an active speaker?
No. It is a passive speaker and requires an external amplifier.
Based in Chicago, IL, Gear Club Direct supports installers and audio professionals with reliable gear and expert service you can trust.
Tech Specs
Frequency Response (-10dB): |
50 Hz - 20000 Hz |
Max SPL @ 1m: |
142 dB |
Horizontal coverage angle: |
110° |
Vertical coverage angle: |
60° |
Amplification: |
Full Range |
Nominal Impedance: |
8 ohm |
Power Handling: |
1200 W RMS |
Peak Power Handling: |
4800 W PEAK |
Protections: |
Dynamic active mosfet |
Crossover Frequencies: |
750 Hz |
Recommended Amplifiers: |
XPS 16K, XPS 16KD |
Dimensions: |
27.95" x 12.24" x 10.63" |
Weight: |
55.12 lbs |
