Description

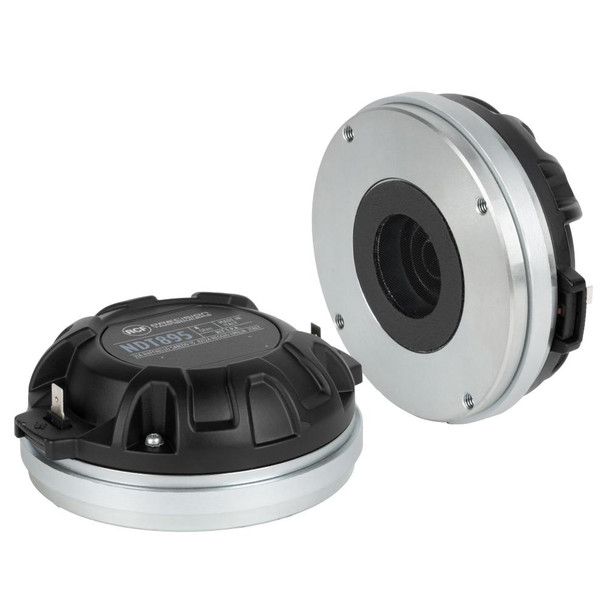

The 3-inch pure titanium dome NDT895 compression driver focuses on maximizing linearity, precision and long-term reliability. It is mainly suitable for professional line arrays and point source applications. Its motor structure features a high-flux density neodymium magnet assembly and reinforcing ribs on the dome for enhanced breakup behavior. The 3" class-leading motor design utilizes a Kapton former, ultralight edge wound aluminum wire, a 3-slot phase plug, and a copper ring design to deliver exceptional power handling, sensitivity, and low distortion across its operating bandwidth. The high sensitivity at 109 dB, 240 Watts continuous power handling at 8 ohms, and very low recommended crossover point from 700 Hz make it ideal for integration with waveguides in two-way high-powered systems.
Features
- 3.0-inch, Titanium dome, polyimide surround
- 240W continuous program power handling @ 8O
- Frequency range: 500Hz - 20kHz
- Kapton former, edge wound aluminum voice coil
- 3-slot optimized geometry phase plug
- Copper inductance ring for extended response
- Low recommended crossover point
- High-flux density neodymium magnet
Why We Like This
It delivers high sensitivity and controlled high-frequency performance in a compact design.
FAQs
Q: What type of systems is this driver designed for?
It is suitable for professional line arrays and point-source speaker systems.
Q: What is the recommended crossover point?
700 Hz.
Q: What helps reduce distortion?
The copper inductance ring and optimized motor design help minimize distortion.
Based in Chicago, IL, Gear Club Direct supports audio professionals with reliable components for high-performance sound systems.
Tech Specs
Exit Throat Diameter: |
1.4 inch / 36 mm |
Program Power (watt): |
240 W |
Power handling capacity: |
120 W |
Sensitivity: |
109 dB |
Frequency range: |
500 - 20000 Hz |
Minimum Impedance (ohm): |
7.00 ohm |
Voice Coil Diameter: |
3.0 inch / 76 mm |
Voice Coil Winding Material: |
Edgewound Aluminum |
Voice Coil Former Design: |
Direct Drive Kapton |
Number of layers: |
1 |
Kind of layers: |
outside |
Flux Density: |
2.0 T |
Phase Plug Design: |
3 slot |
Phase Plug Material: |
Aluminum |
Magnetics: |
Neodymium |
Diaphragm Material: |
Pure Titanium |
Suspension Material: |
Pure Titanium |
