Description

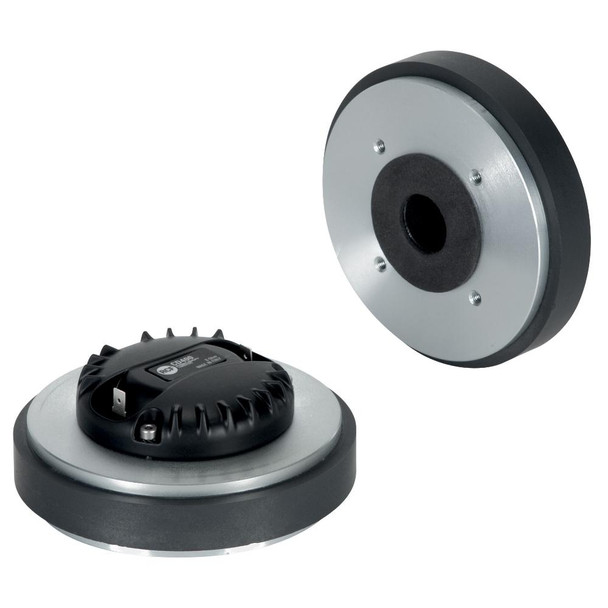

The CD400 is a high performance 1.75-inch diaphragm ceramic compression driver with a 1.0 inch exit throat. The diaphragm is precision formed from polyester. The voice coil assembly is designed using high temperature Kapton former, rectangular profile copper clad aluminum wire and assembled using advanced, specially formulated adhesives.
Features
- 1.75-inch Diaphragm, 1.0-inch Exit Throat / Polyester Compression Driver
- 100W continuous program power handling
- Frequency range: 1200Hz - 20kHz
- 2-slot optimized geometry phase plug
- Polyester diaphragm
- Vented suspension system
- Ceramic magnet assembly
Why We Like This
It offers reliable high-frequency performance in a compact and efficient design.
FAQs
Q: What type of systems is this driver designed for?
It is suitable for compact professional loudspeaker systems.
Q: What material is used for the diaphragm?
Polyester diaphragm.
Q: What is the frequency range?
1200 Hz to 20 kHz.
Based in Chicago, IL, Gear Club Direct supports audio professionals with reliable components for high-performance sound systems.
Tech Specs
Exit Throat Diameter: |
1.0 inch / 25 mm |
Program Power (watt): |
100 W |
Power handling capacity: |
50 W |
Sensitivity: |
109 dB |
Frequency range: |
1200 - 20000 Hz |
Minimum Impedance (ohm): |
6.50 ohm |
Voice Coil Diameter: |
1.75 inch / 44 mm |
Voice Coil Winding Material: |
Edgewound Aluminum |
Voice Coil Former Design: |
Straight - Kapton |
Number of layers: |
1 |
Kind of layers: |
outside |
Flux Density: |
1.8 T |
Phase Plug Design: |
2 slot |
Phase Plug Material: |
PP Composite |
Magnetics: |
Ceramic |
Diaphragm Material: |
Polyester |
Suspension Material: |
Polyester |
