Description

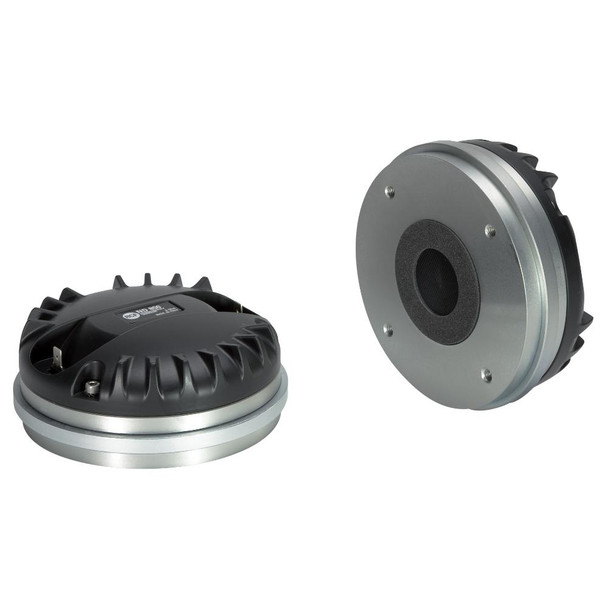

The ND850 1.4 is a high frequency performance 3-inch diaphragm compression driver with a 1.4-inch exit throat featuring several state of the art technologies. The diaphragm is precision formed from 0.05mm thick pure titanium. The suspension is based on a vented and damped design in order to provide low distortion. Voice coil assembly is designed using high temperature kapton former.
Features
- 3-inch Diaphragm, 1.4-inch Exit Throat / Pure Titanium Compression Driver
- 220W continuous program power handling
- Frequency range: 500Hz - 20kHz
- 3-slot optimized geometry phase plug
- Titanium diaphragm
- Copper inductance ring for extended response
- Vented, damped, low distortion suspension system
- Nedymium magnet assembly
Why We Like This
It offers controlled high-frequency performance with reduced distortion and reliable operation.
FAQs
Q: What type of systems is this driver designed for?
It is suitable for professional line arrays and point-source speaker systems.
Q: What helps reduce distortion?
The vented suspension system and copper inductance ring help minimize distortion.
Q: What is the frequency range?
500 Hz to 20 kHz.
Based in Chicago, IL, Gear Club Direct supports audio professionals with reliable components for high-performance sound systems.
Tech Specs
Exit Throat Diameter: |
1.4 inch / 36 mm |
Program Power (watt): |
220 W |
Power handling capacity: |
110 W |
Sensitivity: |
109 dB |
Frequency range: |
500 - 20000 Hz |
Minimum Impedance (ohm): |
8.50 ohm |
Voice Coil Diameter: |
3.0 inch / 76 mm |
Voice Coil Winding Material: |
Edgewound Aluminum |
Voice Coil Former Design: |
Straight - Kapton |
Number of layers: |
1 |
Kind of layers: |
outside |
Flux Density: |
2.0 T |
Phase Plug Design: |
3 slot |
Phase Plug Material: |
Aluminum |
Magnetics: |
Neodymium |
Diaphragm Material: |
Pure Titanium |
Suspension Material: |
Polyester |
